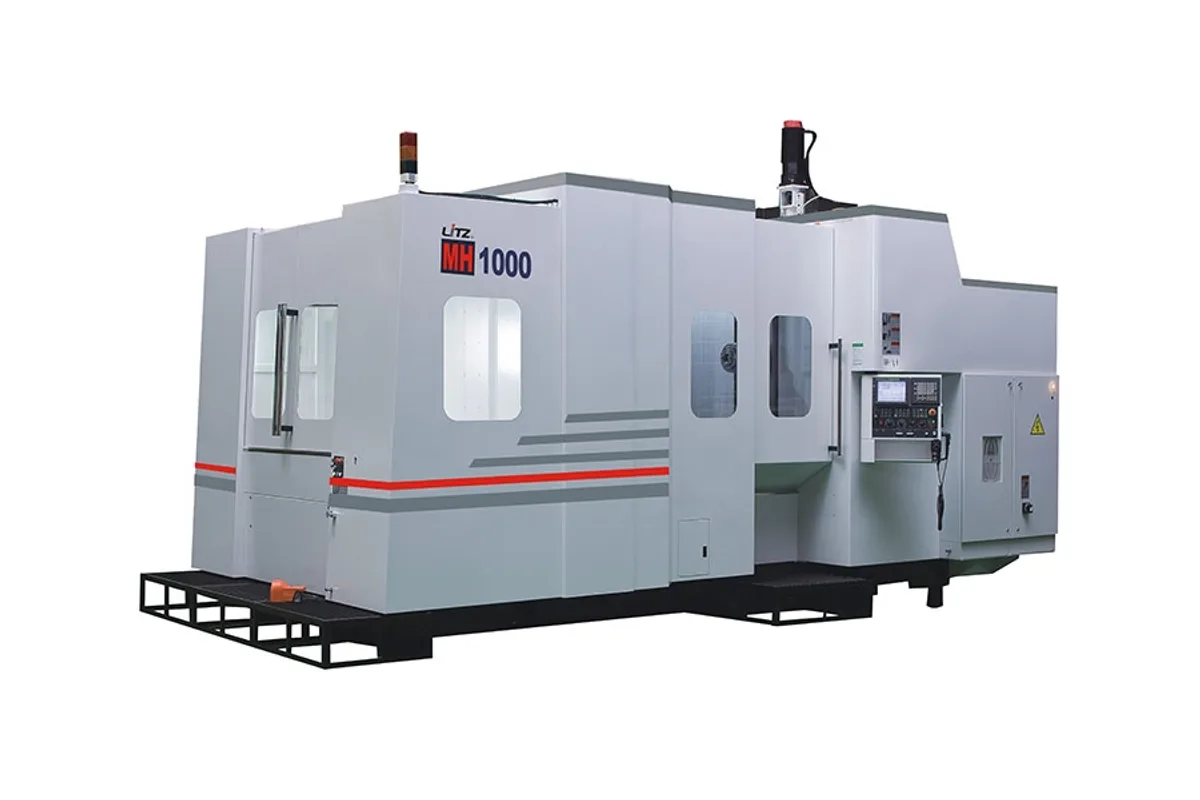

Litz MH-1000B
Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Spindle Power
Max Workpiece ⌀
x axis travel
y axis travel
How much does the Litz MH-1000B cost?
Price estimate
We do not have a price for the Litz MH-1000B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz MH-1000B is the upsized-pallet version of the geared LH-800B horizontal machining center. It carries 1,000 x 1,000 mm (39.4 x 39.4 in) pallets on travels of 1,300 mm (51.2 in) in X and 1,200 mm (47.2 in) in Y and Z, with a No.50 taper spindle that produces 660 Nm (487 lb-ft).
How does it relate to the LH-1000, which also has one-metre pallets? The two are very different machines. The LH-1000 is a 32,000 kg machine with 2,100 mm of X travel and a 3,500 kg pallet load. The MH-1000B weighs 25,000 kg (55,115 lb), covers 6,991 x 4,326 mm (275.2 x 170.3 in) and rates each pallet at 2,000 kg (4,409 lb). It gives a one-metre mounting face at a much smaller footprint and with faster 32,000 mm/min (1,260 ipm) rapids.
The trade-off is in the work zone. Maximum workpiece diameter is 1,300 mm (51.2 in), so a part that fills a 1,000 mm pallet corner to corner is close to the swing limit. Height can reach 1,300 mm (51.2 in).
Drive is by ZF gear box and belt at 6,000 rpm, with a 22 / 26 kW (29.5 / 34.9 hp) motor. An 8,000 rpm spindle is an option. Tool shank is ISO 50 or NBT-50, and the accessory list gives a tool storage capacity of 60T. Tools can be 600 mm (23.6 in) long and 30 kg (66 lb). The pallet changer is a rotary type. Supply is 42 kVA and the coolant tank holds 850 L.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 1,200 mm (47.2 in) |
| Z Axis Travel | 1,200 mm (47.2 in) |
| Spindle Center to Pallet Face | 80 to 1,280 mm (3.1 to 50.4 in) |
| Pallet Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Workpiece Diameter | 1,300 mm (51.2 in) diameter |
| Max Pallet Load | 2,000 kg (4,409 lb) |
| Max Workpiece Height | 1,300 mm (51.2 in) |
| Pallet Indexing | 1° |
| Max Spindle Speed | 6,000 rpm |
| Spindle Torque | 660 Nm (487 lb-ft) |
| Spindle Taper | 7/24 Taper,NO.50 |
| Spindle Bearing Inner Diameter | 100 mm (3.9 in) |
| Spindle Transmission | ZF Gear Box + Belt Transmission |
| Rapid Traverse Xyz | 32,000 mm/min (1,260 ipm) |
| Cutting Feed Rate | 1-10,000 mm/min (up to 394 ipm) |
| Tool Shank | ISO 50 or NBT- 50 |
| Max Tool Diameter (full magazine) | 125 mm (4.9 in); 250 mm (9.8 in) without adjacent tool |
| Max Tool Length | 600 mm (23.6 in) |
| Max Tool Weight | 30 kg (66 lb) |
| Tool Selection Method | fixed Address |
| Pallet Change Type | Rotary Type |
| CNC Control | FANUC 0i-MD |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) |
| Axis Motors Xyzb | 7 / 6 / 7 / 3 kW |
| Hydraulic Pump Motor | 3.7 kW |
| Coolant Pump Motor | 1.6 kW |
| Power Requirement | 42 kVA |
| Hydraulic Tank Capacity | 60 L |
| Lubrication Tank Capacity | 4 L |
| Coolant Tank Capacity | 850 L |
| Machine Height | 3,948 mm (155.4 in) |
| Floor Area | 6,991 x 4,326 mm (275.2 x 170.3 in) |
| Machine Weight | 25,000 kg (55,115 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 x 1,000 mm (39.4 x 39.4 in) pallets on a 25,000 kg (55,115 lb) machine
- 660 Nm (487 lb-ft) geared No.50 spindle
- 32,000 mm/min (1,260 ipm) rapids
- Tools up to 600 mm (23.6 in) long and 30 kg (66 lb)
- 1,300 x 1,200 x 1,200 mm travels
Limitations
- Pallet load of 2,000 kg (4,409 lb), well below the 3,500 kg of the LH-1000
- Maximum workpiece diameter of 1,300 mm (51.2 in) is tight for a one-metre pallet
- Spindle speed of 6,000 rpm as standard
- Tool change and pallet change times are not given in usable form in the maker's table
Best For
Frequently Asked Questions
01
1,000 x 1,000 mm (39.4 x 39.4 in), with a maximum load of 2,000 kg (4,409 lb) and 1° indexing. The largest workpiece is 1,300 mm (51.2 in) in diameter and 1,300 mm (51.2 in) high.
02
Travels, spindle torque, tool limits, weight and floor area are the same in the two tables. The MH-1000B has 1,000 x 1,000 mm pallets where the LH-800B has 800 x 800 mm. Pallet load is 2,000 kg (4,409 lb) on both.
03
A No.50 taper spindle at 6,000 rpm with 660 Nm (487 lb-ft) of maximum torque, a ZF gear box with belt transmission and a 22 / 26 kW (29.5 / 34.9 hp) motor. An 8,000 rpm spindle is listed as an option.
04
The floor area is 6,991 x 4,326 mm (275.2 x 170.3 in) and the height 3,948 mm (155.4 in). The machine weighs 25,000 kg (55,115 lb) and needs a 42 kVA supply.
