Litz LH-630A

Q: How much does the Litz LH-630A cost?

The price estimate for the Litz LH-630A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-lh-630a#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

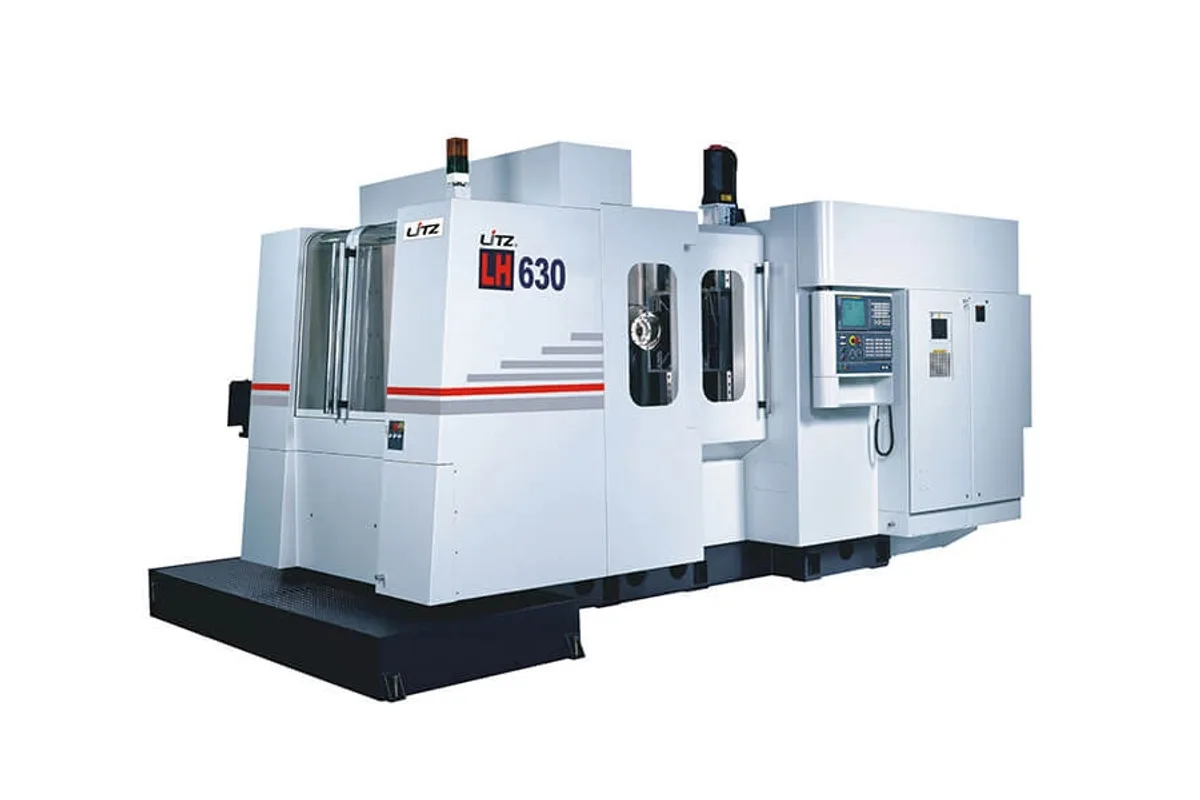

Litz LH series horizontal machining center (LH-630A)

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

10,000 rpm

Spindle Taper

7/24 Taper, NO.40

Tool Capacity

Spindle Power

22 / 26 kW (29.5 / 34.9 hp)

Max Workpiece ⌀

1,000 mm (39.4 in) diameter

x axis travel

1,000 mm (39.4 in)

How much does the Litz LH-630A cost?

Price estimate

Uncertain

We do not have a price for the Litz LH-630A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz LH-630A is a 630 mm horizontal machining center that pairs a No.40 taper spindle at 10,000 rpm with a large work zone: 1,000 mm (39.4 in) of X travel, 850 mm (33.5 in) of Y and 950 mm (37.4 in) of Z.

It is an uncommon combination. Machines with 630 x 630 mm (24.8 x 24.8 in) pallets usually carry a 50-taper spindle, and the LH-630B fills that role. The A model is for big, light workpieces: aluminium transmission cases, motor housings, structural castings and large tombstone setups, where 10,000 rpm and quick tool changes matter more than cutter size.

The spindle is not short of power for that job. Litz lists a 22 / 26 kW (29.5 / 34.9 hp) motor and 165 Nm (122 lb-ft) of torque through a direct drive, which is more than the 120 Nm of the LH-500A. Sixty tools are standard, each up to 450 mm (17.7 in) long, and the 5 s tool change keeps short operations efficient.

Each pallet carries 1,000 kg (2,205 lb) and a workpiece up to 1,000 mm (39.4 in) in diameter and height. Rapids are 32,000 mm/min (1,260 ipm). The B-axis motor is 3 kW, larger than the 1.6 kW of the LH-500A, to turn the heavier pallet. The machine weighs 23,000 kg (50,705 lb) on a 5,966 x 3,570 mm (234.9 x 140.6 in) floor area, with an 800 L coolant tank.

Full Specifications

Parameter	Value
X Axis Travel	1,000 mm (39.4 in)
Y Axis Travel	850 mm (33.5 in)
Z Axis Travel	950 mm (37.4 in)
Spindle Center to Pallet Face	100 to 950 mm (3.9 to 37.4 in)
Spindle Nose to Pallet Center	150 to 1,100 mm (5.9 to 43.3 in)
Pallet Size	630 x 630 mm (24.8 x 24.8 in)
Max Workpiece Diameter	1,000 mm (39.4 in) diameter
Max Pallet Load	1,000 kg (2,205 lb)
Max Workpiece Height	1,000 mm (39.4 in)
Pallet Indexing	1°
Max Spindle Speed	10,000 rpm
Spindle Torque	165 Nm (122 lb-ft)
Spindle Taper	7/24 Taper, NO.40
Spindle Bearing Inner Diameter	70 mm (2.8 in)
Spindle Transmission	Direct
Rapid Traverse Xyz	32,000 mm/min (1,260 ipm)
Cutting Feed Rate	1-10,000 mm/min (up to 394 ipm)
Tool Shank	ISO 40 or BBT-40
Tool Capacity	60
Max Tool Diameter (full magazine)	80 mm (3.1 in); 160 mm (6.3 in) without adjacent tool
Max Tool Length	450 mm (17.7 in)
Max Tool Weight	8 kg (18 lb)
Tool Change Time	5 s (tool to tool)
Tool Selection Method	Fixed Address
Pallets	2
Pallet Change Type	Rotary Type
Pallet Change Time	18 s
CNC Control	FANUC 0i-MF
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp)
Spindle Motor Torque	165 Nm (122 lb-ft)
Axis Motors Xyzb	7 / 7 / 7 / 3 kW
Hydraulic Pump Motor	2.2 kW
Coolant Pump Motor	1.6 kW
Power Requirement	42 kVA
Hydraulic Tank Capacity	60 L
Lubrication Tank Capacity	4 L
Coolant Tank Capacity	800 L
Machine Height	3,362 mm (132.4 in)
Floor Area	5,966 x 3,570 mm (234.9 x 140.6 in)
Machine Weight	23,000 kg (50,705 lb)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

10,000 rpm direct-drive No.40 spindle with 165 Nm (122 lb-ft) and a 22 / 26 kW (29.5 / 34.9 hp) motor
1,000 x 850 x 950 mm travels on 630 mm pallets
60 tools, each up to 450 mm (17.7 in) long
1,000 kg (2,205 lb) pallet load
5 s tool-to-tool change keeps short operations quick

Limitations

Tools limited to 8 kg (18 lb) and 80 mm (3.1 in) in diameter with full pockets
40-taper spindle limits heavy roughing on large steel parts
1° pallet indexing unless the finer option is ordered
23,000 kg (50,705 lb) machine weight

Best For

Large aluminium housings and cases Tombstone production with many tools Workpieces up to 1,000 mm (39.4 in) in diameter that need high spindle speed

Frequently Asked Questions

01 Why choose the Litz LH-630A over the LH-630B?

For speed and tool count. The LH-630A runs at 10,000 rpm with 60 tools on a No.40 taper. The LH-630B runs at 6,000 rpm with 40 tools on a No.50 taper and takes 20 kg (44 lb) tools. Both list 165 Nm (122 lb-ft) and a 22 / 26 kW motor.

02 What are the travels of the LH-630A?

X is 1,000 mm (39.4 in), Y is 850 mm (33.5 in) and Z is 950 mm (37.4 in). Spindle centre to pallet face is 100 to 950 mm (3.9 to 37.4 in) and spindle nose to pallet centre is 150 to 1,100 mm (5.9 to 43.3 in).

03 How big a workpiece fits the LH-630A?

Up to 1,000 mm (39.4 in) in diameter and 1,000 mm (39.4 in) high, weighing up to 1,000 kg (2,205 lb) per pallet. The pallets are 630 x 630 mm (24.8 x 24.8 in).

04 What is standard on the LH-630A?

Spindle oil cooling, roller linear rails, hollow ballscrew cooling on the three axes, a track type chip conveyor, an overhead chip wash-down system and a 60-tool magazine are standard. Coolant through the spindle and linear scales are options.
