Litz LH-350A

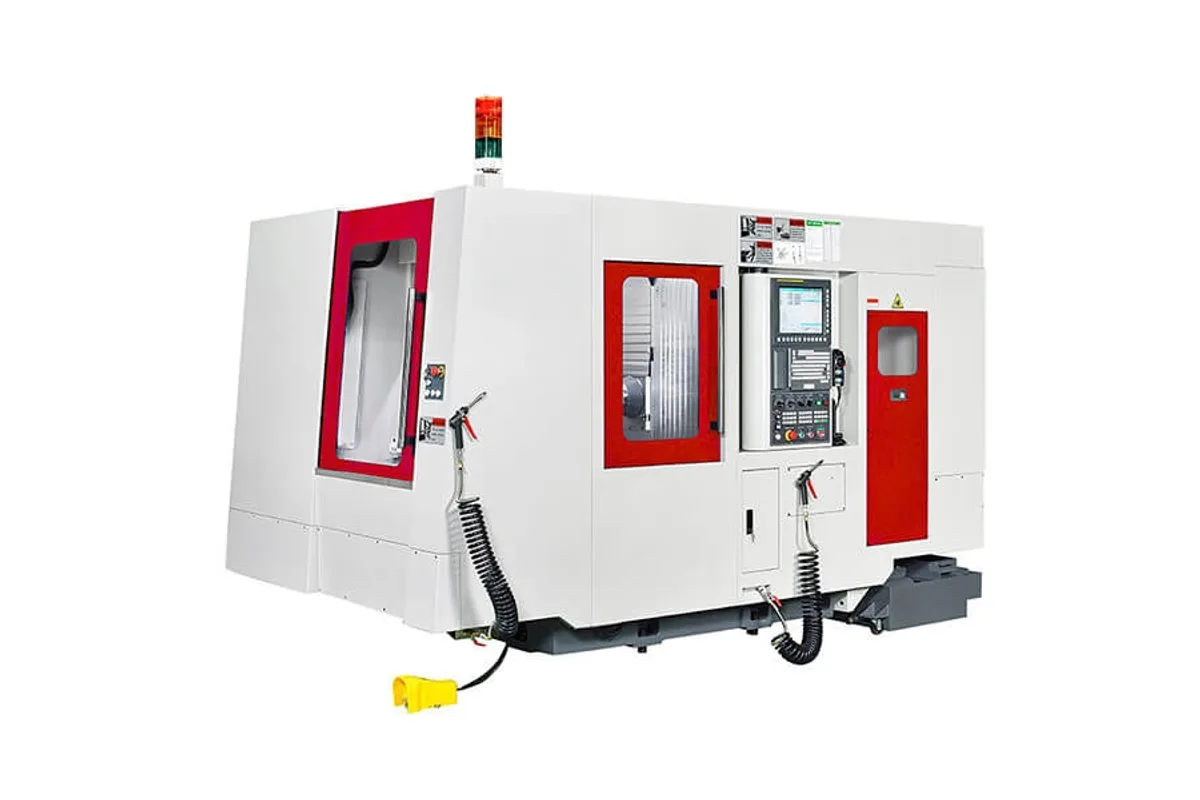

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Max Workpiece ⌀
x axis travel
How much does the Litz LH-350A cost?
Price estimate
We do not have a price for the Litz LH-350A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz LH-350A is a compact 40-taper horizontal machining center with two 350 x 350 mm (13.8 x 13.8 in) pallets. It shares its frame with the LH-300, including the 460 x 460 x 350 mm travels, and replaces the 30-taper spindle with a No.40 unit at 12,000 rpm.
That swap changes the tooling more than the cutting force. Tool shank is CAT40II, tools may weigh 8 kg (18 lb) and reach 320 mm (12.6 in) in length, and diameter can be 80 mm (3.1 in), or 160 mm (6.3 in) without adjacent tools. Maximum spindle torque is listed at 47.7 Nm (35 lb-ft) from the same 7.5 / 11 kW (10.1 / 14.8 hp) motor rating. So the LH-350A is for shops that want standard 40-taper holders and longer reach, with cutting loads that stay light.
In a small work zone, tool length needs care. With 350 mm of Z travel and 60 to 410 mm (2.4 to 16.1 in) from spindle nose to pallet centre, a 320 mm tool leaves little room over a fixture, so check interference at the pallet centre before buying long tooling.
Production features carry over from the smaller model: 48,000 mm/min (1,890 ipm) rapids, a 10 s rotary pallet change, 0.001° pallet indexing, 30 tools with random selection, and a chip conveyor as standard. Pallet load is 250 kg (551 lb). Control is FANUC 0i-MD, with FANUC 31i and Mitsubishi M720 as options.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 460 mm (18.1 in) |
| Y Axis Travel | 460 mm (18.1 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Spindle Center to Pallet Face | 60 to 520 mm (2.4 to 20.5 in) |
| Spindle Nose to Pallet Center | 60 to 410 mm (2.4 to 16.1 in) |
| Pallet Size | 350 x 350 mm (13.8 x 13.8 in) |
| Max Workpiece Diameter | 430 mm (16.9 in) diameter |
| Max Pallet Load | 250 kg (551 lb) |
| Max Workpiece Height | 550 mm (21.7 in) |
| Pallet Indexing | 0.001° |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque | 47.7 Nm (35 lb-ft) |
| Spindle Taper | 7 / 24 Taper, NO.40 |
| Spindle Bearing Inner Diameter | 70 mm (2.8 in) |
| Spindle Transmission | Direct Drive |
| Rapid Traverse Xyz | 48,000 mm/min (1,890 ipm) |
| Cutting Feed Rate | 1-12,000 mm/min (up to 472 ipm) |
| Tool Shank | CAT40II |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | 80 mm (3.1 in); 160 mm (6.3 in) without adjacent tool |
| Max Tool Length | 320 mm (12.6 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Tool Selection Method | Random |
| Pallets | 2 |
| Pallet Change Type | Rotary Type |
| Pallet Change Time | 10 s |
| CNC Control | FANUC 0i-MD |
| Spindle Motor Power | 7.5 / 11 kW (10.1 / 14.8 hp) |
| Spindle Motor Torque | 17.9 / 47.7 Nm |
| Axis Motors Xyzb | 2.7 / 4.5 / 2.7 / 1.6 kW |
| Hydraulic Pump Motor | 1.5 kW |
| Power Requirement | 25 kVA |
| Hydraulic Tank Capacity | 50 L |
| Lubrication Tank Capacity | 2 L |
| Coolant Tank Capacity | 300 L |
| Machine Height | 2,282 mm (89.8 in) |
| Machine Weight | 7,000 kg (15,432 lb) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- No.40 taper spindle at 12,000 rpm in a 7,000 kg (15,432 lb) horizontal
- 48,000 mm/min (1,890 ipm) rapids with a 10 s pallet change
- 0.001° pallet indexing as standard
- Tools up to 8 kg (18 lb) and 320 mm (12.6 in) long
Limitations
- Maximum spindle torque is 47.7 Nm (35 lb-ft)
- Pallet load of 250 kg (551 lb)
- Z travel of 350 mm (13.8 in) leaves little room for long tools
- 30-tool magazine limits multi-part tombstone work
Best For
Frequently Asked Questions
01
460 mm (18.1 in) in X, 460 mm (18.1 in) in Y and 350 mm (13.8 in) in Z. Spindle centre to pallet face is 60 to 520 mm (2.4 to 20.5 in), and spindle nose to pallet centre is 60 to 410 mm (2.4 to 16.1 in).
02
CAT40II tool shanks in a 30-tool magazine with random selection. Tools can be up to 320 mm (12.6 in) long and 8 kg (18 lb), with a diameter of 80 mm (3.1 in), or 160 mm (6.3 in) without adjacent tools. BBT is listed as an option.
03
Maximum spindle torque is listed as 47.7 Nm (35 lb-ft), with spindle motor torque given as 17.9 / 47.7 Nm. Speed is 12,000 rpm with direct drive and the motor is 7.5 / 11 kW (10.1 / 14.8 hp).
04
The machine weighs 7,000 kg (15,432 lb), is 2,282 mm (89.8 in) high and needs a 25 kVA supply. The coolant tank holds 300 L and the hydraulic tank 50 L.
