Jingdiao JDCT800T(H)_A15SH
Image: en.jingdiao.com, Jingdiao
Key Specifications
Max Spindle
Spindle Taper
Table Size
Accuracy
Repeatability
x axis travel
How much does the Jingdiao JDCT800T(H)_A15SH cost?
Price estimate
We do not have a price for the Jingdiao JDCT800T(H)_A15SH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

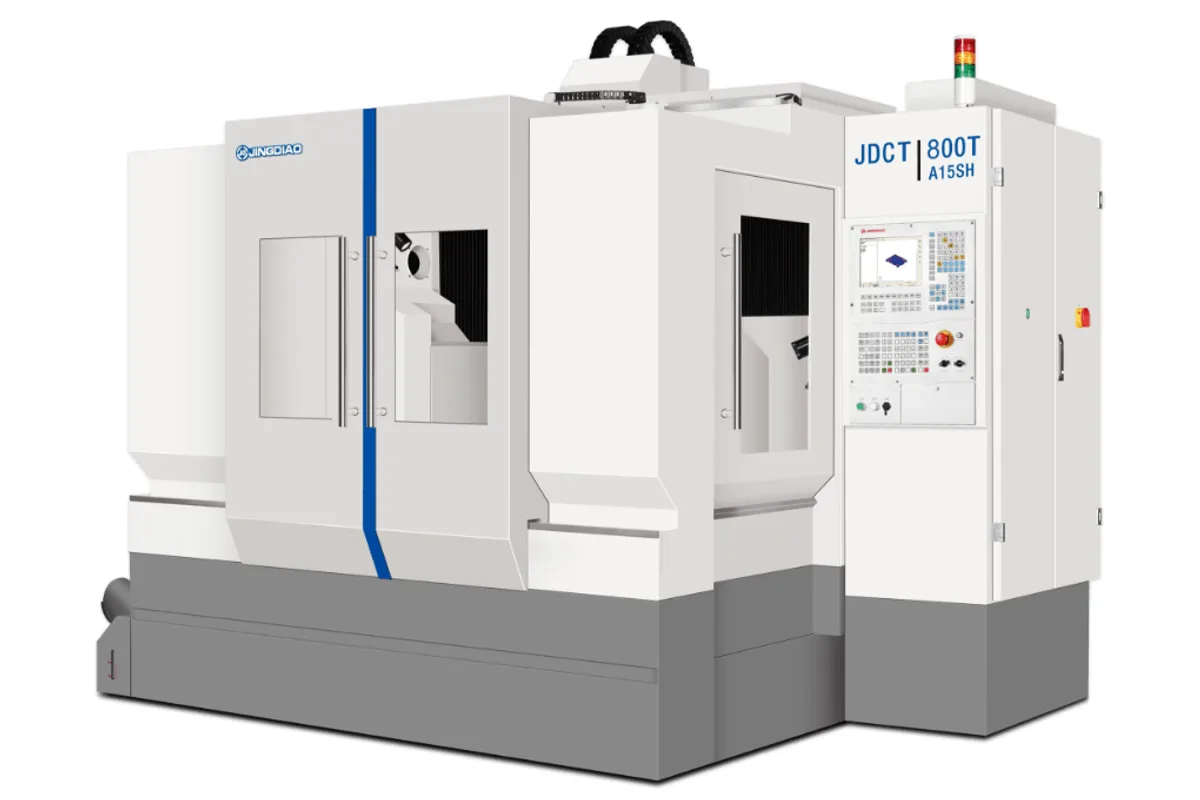

The Jingdiao JDCT800T(H)_A15SH is the large-table machine of the JDCT line: 800 mm (31.5 in) of travel in both X and Y, an 850 × 850 mm (33.5 × 33.5 in) table and a 1,000 kg (2,205 lb) load. Jingdiao describes it as 3-axis machining for hard metal above HRC 50, stainless steel and difficult-to-machine materials. Z is 350 mm (13.8 in) on the JDCT800T_A15SH and 450 mm (17.7 in) on the JDCT800TH_A15SH.
Here the two heights differ in their tool magazines as well. The lower machine is listed with an umbrella magazine of 18 tools, the taller one with a chain magazine of 37 tools. For a mold shop that distinction can matter more than the extra height, because a hardened cavity is usually finished with a long sequence of progressively smaller cutters. Both versions use the same spindle, 20,000 rpm on HSK-A50, with a coolant through spindle as the option.
Chips are the other theme. Hard milling at this scale produces a lot of them, and the standard coolant tank has a spiral chip conveyor inside the machine. A scraper type chip conveyor can be added for jobs with a large cutting volume. The machine is operated from the side, leaving the front opening free for lifting gear.
Positioning accuracy is 0.008 / 0.008 / 0.008 mm (X/Y/Z) and repeatability 0.005 / 0.005 / 0.005 mm, against the 0.002 / 0.003 / 0.002 mm (X/Y/Z) of the JDHGT800T(H) on the same travels. Rapids are 18 m/min (709 ipm). At 9,000 kg (19,841 lb) it weighs the same as that sibling.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 350 mm (13.8 in) on the JDCT800T_A15SH; 450 mm (17.7 in) on the JDCT800TH_A15SH |
| Table Size | 850 × 850 mm (33.5 × 33.5 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Spindle Type | JD150S-20-HA50/C (standard) or JD150SC-20-HA50/A (coolant through spindle, optional) |
| Max Spindle Speed | 20,000 rpm |
| Spindle Taper | HSK-A50 |
| Tool Magazine | JDCT800T_A15SH: Umbrella Type (18 Tools). JDCT800TH_A15SH: Chain Type (37 Tools) |
| Positioning Accuracy | 0.008 / 0.008 / 0.008 mm (X/Y/Z) |
| Repeatability | 0.005 / 0.005 / 0.005 mm (X/Y/Z) |
| Rapid Traverse Xyz | 18 m/min (709 ipm) |
| Cutting Feed Rate | 10 m/min (394 ipm) |
| Drive System | AC servo |
| CNC Control | JD50 Control System |
| Power Requirement | 3-Phase, 380V / 50Hz, or Customized |
| Air Pressure | ≥0.52 MPa |
| Machine Weight | 9,000 kg (19,841 lb) |
Specifications sourced from en.jingdiao.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Square 800 mm (31.5 in) X and Y travel with an 850 × 850 mm (33.5 × 33.5 in) table
- Table load of 1,000 kg (2,205 lb)
- Chain magazine with 37 tools on the 450 mm (17.7 in) Z version
- Spiral chip conveyor in the standard coolant tank, with a scraper type conveyor available for heavy cutting
- Side operating position leaves the front opening clear for lifting gear
Limitations
- Positioning accuracy of 0.008 / 0.008 / 0.008 mm (X/Y/Z) is well short of the JDHGT800T(H) at 0.002 / 0.003 / 0.002 mm (X/Y/Z)
- The 350 mm (13.8 in) Z version is listed only with an umbrella magazine of 18 tools
- One spindle speed, 20,000 rpm on HSK-A50
- Top feed of 10 m/min (394 ipm)
Best For
Frequently Asked Questions
01
X and Y travel are both 800 mm (31.5 in). Z travel is 350 mm (13.8 in) on the JDCT800T_A15SH and 450 mm (17.7 in) on the JDCT800TH_A15SH. The worktable is 850 × 850 mm (33.5 × 33.5 in) and the maximum load is 1,000 kg (2,205 lb).
02
The configuration table lists an umbrella type magazine with 18 tools for the JDCT800T_A15SH and a chain type magazine with 37 tools for the JDCT800TH_A15SH. On the 2020 data sheet a servo tool magazine is standard and a chain type tool magazine with manipulator is an option.
03
Jingdiao lists hard metal above HRC 50, stainless steel and difficult-to-machine materials, and describes the spindle as able to machine quenching material and other hard cutting materials. Stated machining accuracy on parts is 5-20μm with the appropriate software and hardware configuration.
04
Both have 800 mm (31.5 in) of X and Y travel, the same table and a 1,000 kg (2,205 lb) load. The JDHGT800T(H) lists 0.002 / 0.003 / 0.002 mm (X/Y/Z) positioning accuracy. This machine lists 0.008 / 0.008 / 0.008 mm (X/Y/Z) but has faster rapids, 18 m/min (709 ipm).
05
A coolant tank with an in-machine spiral chip conveyor is standard equipment. For work with a large amount of cutting, a scraper type chip conveyor is available as an option. A bag type filtration system and a coolant chilling system are also on the options list.
