Litz MV-1600B

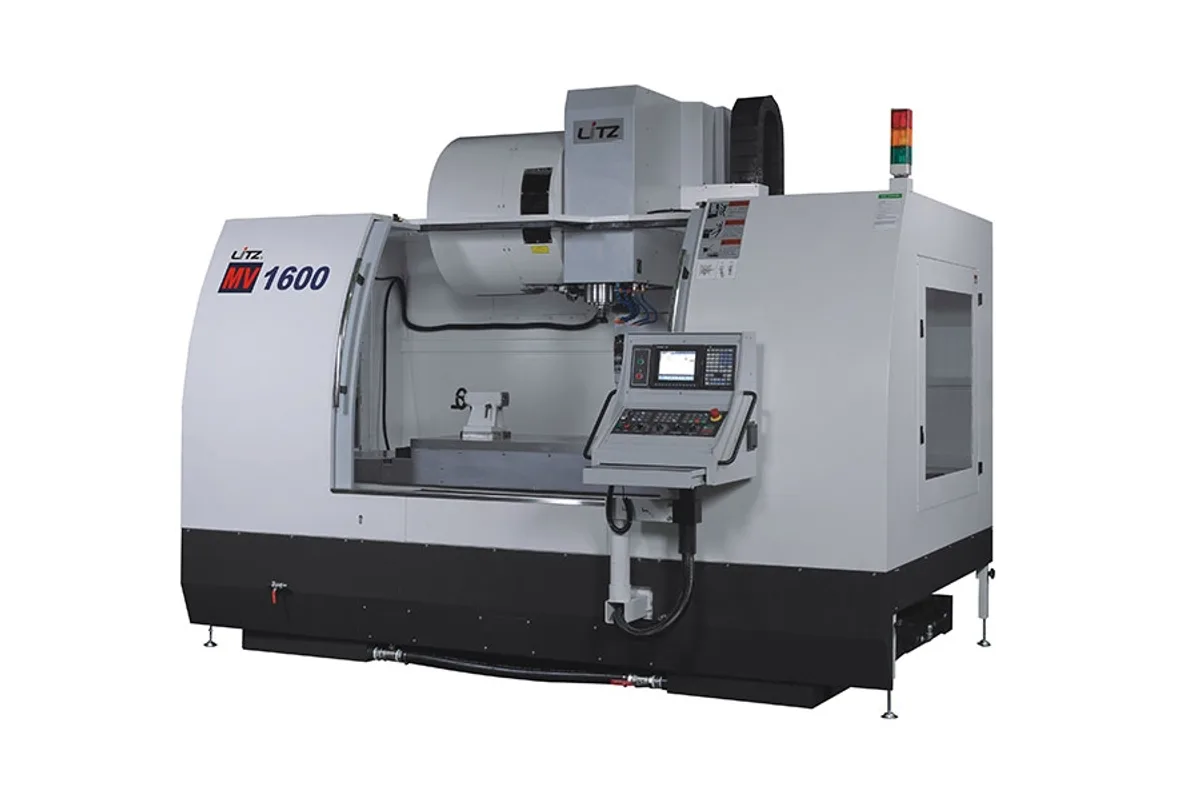

Image: litzhitech.com, Litz
Key Specifications
Max Spindle
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Litz MV-1600B cost?
Price estimate
We do not have a price for the Litz MV-1600B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Litz MV-1600B is the heaviest machine of the MV series at 15,000 kg (33,069 lb): a 50-taper vertical machining center with 1,600 mm (63.0 in) of X travel, 800 mm (31.5 in) of Y, 740 mm (29.1 in) of Z and a 1,600 kg (3,527 lb) table load.
Its job is roughing and boring big steel and iron parts. The BT-50 spindle turns at 6,000 rpm with a 15 / 18.5 kW (20 / 25 HP) motor, and a ZF gearbox is offered as an option for buyers who want full power at low speed. Tooling can be as large as 225 mm (8.9 in) in diameter when adjacent pockets are empty, 125 mm (4.9 in) otherwise, and as heavy as 15 kg (33 lb).
Compare it with the MV-1400B before deciding. Spindle, motor and tool limits are identical. What the MV-1600B adds is travel, 800 mm of Y against the 650 mm of the MV-1400B, a table 800 mm wide, and a 1,600 kg load rating against the 1,000 kg of the MV-1400B. If the parts are wide as well as long, that Y travel is what you are buying.
Axis motors are 3.5 / 3.5 / 3.5 kW and the Z axis has a counterweight with central guiding system. Movement is unhurried, with rapids of 20 / 20 / 18 m/min (787 / 787 / 709 ipm) and feed to 8,000 mm/min. The accessory list shows both a worktable half cover and a full enclosure as standard. Supply is 40 kVA, coolant 500 L.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 740 mm (29.1 in) |
| Distance Spindle Nose to Table | 100 to 840 mm (3.9 to 33.1 in) |
| Max Spindle Speed | 6,000 rpm |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | 125 mm (4.9 in) with adjacent tool / 225 mm (8.9 in) without adjacent tool |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Change Method | Arm |
| Tool Shank | BT-50 |
| Spindle Motor Power | 15 / 18.5 kW (20 / 25 HP) (continuous / 30 min rated) |
| Axis Motors Xyz | 3.5 / 3.5 / 3.5 kW |
| Table Size | 1,700 x 800 mm (66.9 x 31.5 in) |
| Max Table Load | 1,600 kg (3,527 lb) |
| T-Slots | 7 x 18 mm x 100 mm (number x width x distance from the center) |
| Cutting Feed Rate | 1-8,000 mm/min (up to 315 ipm) |
| CNC Control | Mitsubishi M80 |
| Machine Weight | 15,000 kg (33,069 lb) |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 500 L |
| Compressed Air | 6 kg/cm² |
| Rapid Traverse Xyz | 20 / 20 / 18 m/min (787 / 787 / 709 ipm) |
Specifications sourced from litzhitech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- BT-50 spindle and 15 / 18.5 kW (20 / 25 HP) motor over a 1,700 x 800 mm (66.9 x 31.5 in) table
- 1,600 kg (3,527 lb) table load, the highest in the MV series together with the MV-1600A
- Tools up to 15 kg (33 lb), 350 mm (13.8 in) long and 225 mm (8.9 in) in diameter without adjacent tools
- ZF gearbox available as an option
- Full enclosure appears on the standard list
Limitations
- 6,000 rpm spindle; 8,000 rpm and 10,000 rpm are options
- Rapids of 20 / 20 / 18 m/min (787 / 787 / 709 ipm) and feed limited to 8,000 mm/min
- 24-tool magazine, fewer than the 30 of the MV-1600A
- 15,000 kg (33,069 lb) and 40 kVA to install
Best For
Frequently Asked Questions
01
The spindle takes BT-50 tooling and runs at 6,000 rpm. The motor is rated 15 / 18.5 kW (20 / 25 HP), continuous and 30 min. Options include 8,000 rpm and 10,000 rpm spindles, a spindle oil cooler, coolant through the spindle and a ZF gearbox.
02
The table is 1,700 x 800 mm (66.9 x 31.5 in) and is rated for 1,600 kg (3,527 lb). It has seven 18 mm T-slots. Spindle nose to table distance is 100 to 840 mm (3.9 to 33.1 in).
03
Both are BT-50 machines at 6,000 rpm with 15 / 18.5 kW. The MV-1400B has 1,400 x 650 x 675 mm travels and a 1,000 kg (2,205 lb) table load; the MV-1600B has 1,600 x 800 x 740 mm and 1,600 kg (3,527 lb). The MV-1400B is faster, with 24 / 24 / 20 m/min rapids.
04
Machine weight is 15,000 kg (33,069 lb). The power requirement is 40 kVA, compressed air 6 kg/cm² and the coolant tank holds 500 L. The specification table names the Mitsubishi M80 control.
