Litz DV-1200A

Q: How much does the Litz DV-1200A cost?

The price estimate for the Litz DV-1200A is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/litz-dv-1200a#price; the request is passed to Litz or an authorised dealer.

Specs verified 2026-10-04 · litzhitech.com Updated 2026-10-04

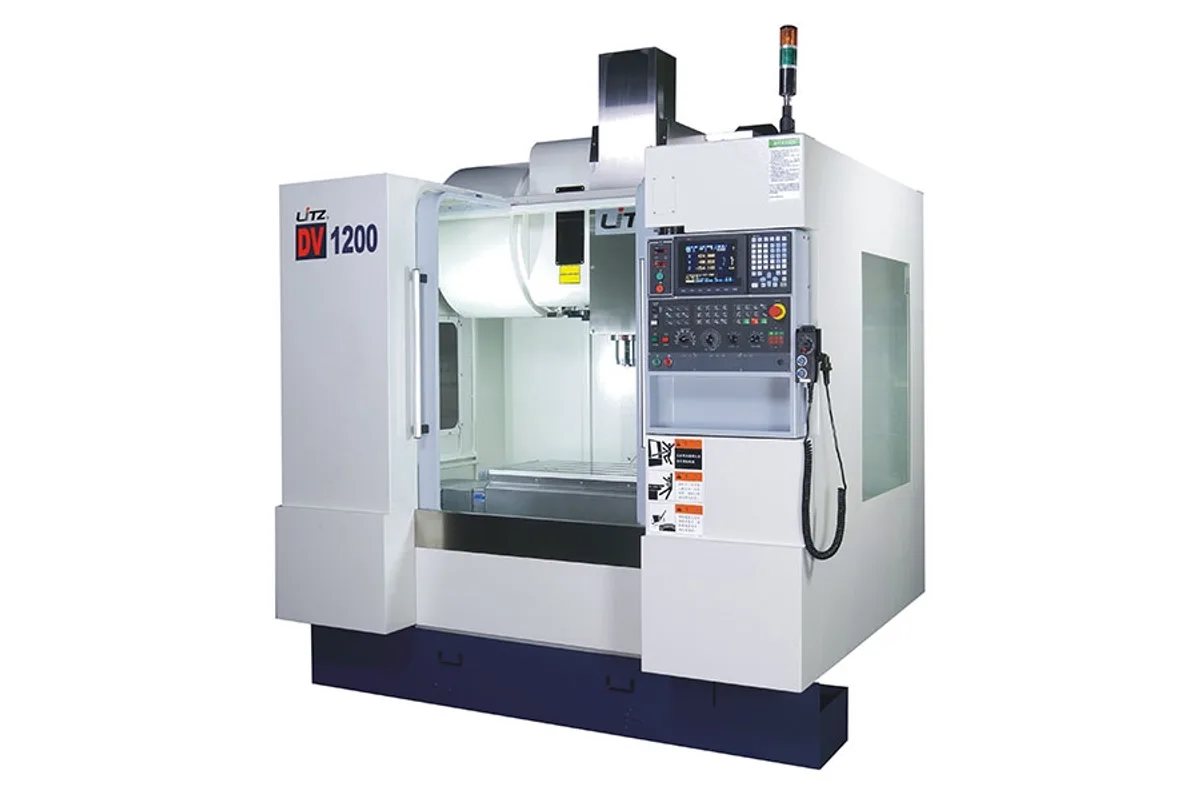

Image: litzhitech.com, Litz

Key Specifications

Max Spindle

10,000 rpm

Tool Capacity

Table Size

1,220 x 620 mm (48.0 x 24.4 in)

Spindle Power

11 / 15 kW (14.8 / 20.1 hp) (continuous / 30 min rated)

x axis travel

1,200 mm (47.2 in)

y axis travel

600 mm (23.6 in)

How much does the Litz DV-1200A cost?

Price estimate

Uncertain

We do not have a price for the Litz DV-1200A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Litz DV-1200A tops the DV vertical machining center series. Travels are 1,200 mm (47.2 in) in X, 600 mm (23.6 in) in Y and 675 mm (26.6 in) in Z, the table is 1,220 x 620 mm (48.0 x 24.4 in), and the load rating reaches 1,000 kg (2,205 lb).

It is also the only DV model with a bigger spindle motor. Litz lists 11 / 15 kW (14.8 / 20.1 hp), continuous and 30 min rated, where the DV-1000 has 7.5 / 11 kW. Speed stays at 10,000 rpm on a BBT-40 shank. For steel plate, die sets and other work where a face mill spends long periods in the cut, that extra motor is the reason to step up from the DV-1000, more than the added X travel.

Something is given up for the mass. X and Y rapids drop to 30 m/min (1,181 ipm) from the 36 m/min of the DV-1000, while Z stays at 24 m/min (945 ipm). The tool changer still holds 24 tools, but its limits are stated differently here: 85 mm (3.3 in) diameter with adjacent tools, 150 mm (5.9 in) without, 300 mm (11.8 in) long and 7 kg (15 lb).

With 100 to 775 mm (3.9 to 30.5 in) between spindle nose and table, tall workpieces and stacked fixtures are within reach. The machine weighs 8,500 kg (18,739 lb), draws 35 kVA and has a 360 L coolant tank.

Full Specifications

Parameter	Value
X Axis Travel	1,200 mm (47.2 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	675 mm (26.6 in)
Distance Spindle Nose to Table	100 to 775 mm (3.9 to 30.5 in)
Max Spindle Speed	10,000 rpm
Tool Capacity	24
Max Tool Diameter (full magazine)	85 mm (3.3 in) with adjacent tool / 150 mm (5.9 in) without adjacent tool
Max Tool Length	300 mm (11.8 in)
Max Tool Weight	7 kg (15 lb)
Tool Change Method	Arm
Tool Shank	BBT-40
Spindle Motor Power	11 / 15 kW (14.8 / 20.1 hp) (continuous / 30 min rated)
Axis Motors Xyz	2.0 / 2.0 / 3.5 kW
Table Size	1,220 x 620 mm (48.0 x 24.4 in)
Max Table Load	1,000 kg (2,205 lb)
T-Slots	5 x 18 mm x 100 mm (number x width x distance from the center)
Cutting Feed Rate	1-20,000 mm/min (up to 787 ipm)
CNC Control	Mitsubishi M80
Machine Weight	8,500 kg (18,739 lb)
Power Requirement	35 kVA
Coolant Tank Capacity	360 L
Compressed Air	6 kg/cm²
Rapid Traverse Xyz	30 / 30 / 24 m/min (1,181 / 1,181 / 945 ipm)

Specifications sourced from litzhitech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Largest DV envelope: 1,200 x 600 x 675 mm with a 1,000 kg (2,205 lb) table load
11 / 15 kW (14.8 / 20.1 hp) spindle motor, the highest rating in the DV series
Up to 775 mm (30.5 in) between spindle nose and table
Tools up to 150 mm (5.9 in) in diameter when adjacent pockets are empty
360 L coolant tank, the largest in the DV series

Limitations

X and Y rapids are 30 m/min (1,181 ipm), slower than the 36 m/min of the DV-1000
Tool weight limit is 7 kg (15 lb), under the 8 kg of the DV-1000
Needs a 35 kVA supply and a floor that takes 8,500 kg (18,739 lb)
Spindle speed remains 10,000 rpm unless the 15,000 rpm option is ordered

Best For

Steel plates, die sets and mould bases up to 1,000 kg (2,205 lb) Long parts needing 1,200 mm (47.2 in) of X travel Face milling and roughing that benefits from the 11 / 15 kW motor

Frequently Asked Questions

01 What are the travels of the Litz DV-1200A?

X travel is 1,200 mm (47.2 in), Y is 600 mm (23.6 in) and Z is 675 mm (26.6 in). The table measures 1,220 x 620 mm (48.0 x 24.4 in) and carries 1,000 kg (2,205 lb). Spindle nose to table distance is 100 to 775 mm (3.9 to 30.5 in).

02 How does the DV-1200A differ from the DV-1000?

It is larger and has more spindle power. The DV-1200A has an 11 / 15 kW motor and a 1,000 kg (2,205 lb) table load; the DV-1000 has 7.5 / 11 kW and 750 kg (1,653 lb). X and Y rapids are 30 m/min on the DV-1200A against 36 m/min on the DV-1000.

03 What tools can the DV-1200A changer take?

The arm-type changer holds 24 BBT-40 tools. Maximum diameter is 85 mm (3.3 in) with adjacent tools and 150 mm (5.9 in) without, maximum length is 300 mm (11.8 in) and maximum weight is 7 kg (15 lb).

04 What supply and floor loading does the DV-1200A need?

The power requirement is 35 kVA and the compressed air source is 6 kg/cm². The machine weighs 8,500 kg (18,739 lb). The coolant tank holds 360 L. A chip conveyor and an air conditioner for the electrical cabinet are options.
