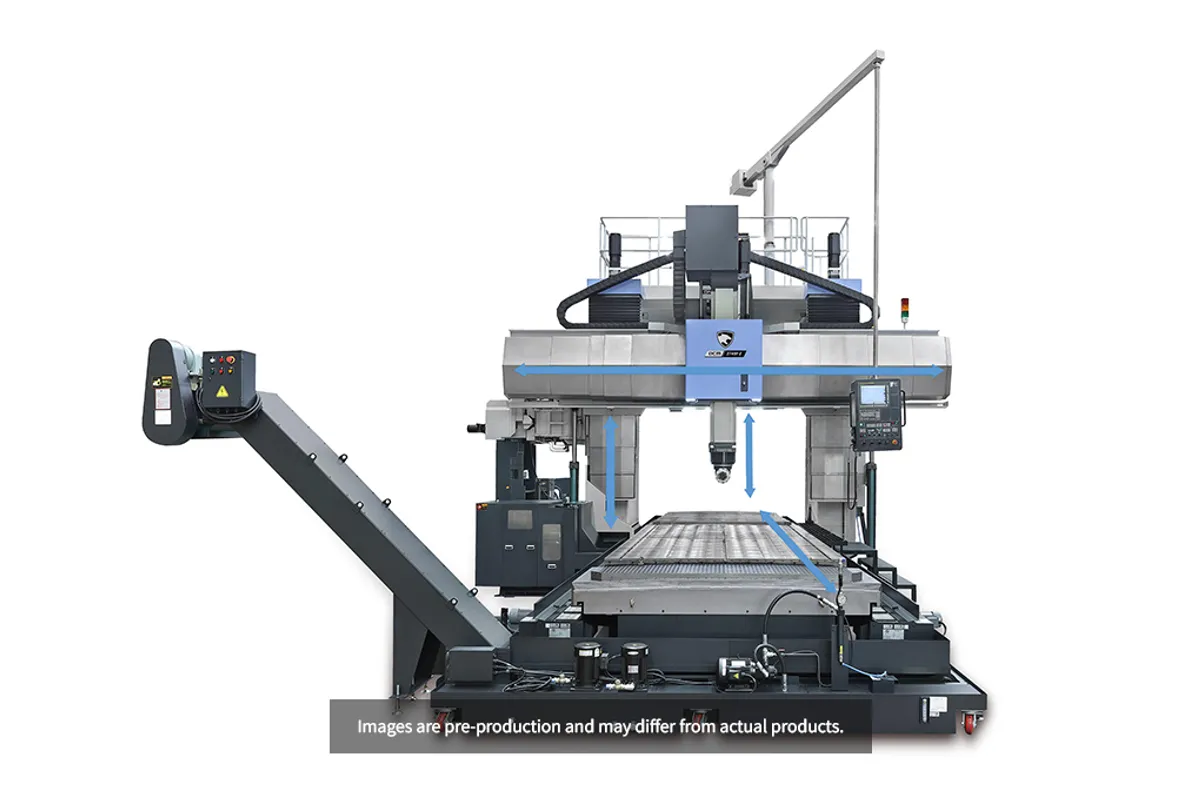

DN Solutions DCM 4280 F II
Key Specifications
x axis travel
y axis travel
z axis travel
rapid traverse x
rapid traverse y
rapid traverse z
Overview
The DN Solutions DCM 4280 F II is the widest machine in the DCM double-column series, pushing Y-axis travel to 5,000 mm (197 in) while maintaining the 8,250 mm (325 in) X-travel and 1,000 mm (39 in) Z-depth shared with the 3780. When your workpieces are as wide as they are long, this is the machine that covers them.
Five meters of Y-axis cross-travel opens up applications that narrower double-column machines can't touch. Think large aerospace wing skins, wide turbine base plates, shipbuilding structural sections, and oversized mold bases. The double-column gantry maintains rigidity across that entire 5-meter span — there's no cantilever moment degrading accuracy at the extremes of travel.
At 130,000 kg (286,601 lb), the DCM 4280 F II is the heaviest in the current lineup. That mass isn't just structural overhead — it's working for you every time you take a cut. Vibration damping scales directly with machine weight, and at 130 tons, you're getting surface finishes on large parts that lighter machines struggle to match.
The W-axis crossrail, 45,000 kg table capacity, and 16/18/15 m/min rapids (X/Y/Z) are consistent with the rest of the DCM F II family. DN Solutions designs these machines for 24/7 production in the most demanding heavy-industry environments, and the F II generation's thermal stability improvements keep accuracy tight through extended machining cycles.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,250 mm (325 in) |
| Y Axis Travel | 5,000 mm (197 in) |
| Z Axis Travel | 1,000 mm (39 in) |
| Rapid Traverse X | 16 m/min (630 in/min) |
| Rapid Traverse Y | 18 m/min (709 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Max Workpiece Weight | 45,000 kg (99,208 lb) |
| Machine Weight | 130,000 kg (286,601 lb) |
| Construction | Double-column with W-axis crossrail |
| X Axis Travel Distance | 8250 mm |
| Y Axis Travel Distance | 5000 mm |
| Z Axis Travel Distance | 1000 mm |
| Metric | IMPERIAL |
| Capacity | Table to spindle nose |
| Travels | X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance |
| Feed Rates | X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse |
| Table | Table LengthTable WidthMaximum Workpiece weight |
| Dimensions | LengthHeightWidthWeight |
| Favorites | DCM 4280F |
Specifications sourced from dn-solutions.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 5,000 mm Y-axis travel is the widest in the DCM family — covers the broadest workpieces in aerospace and energy
- 130,000 kg machine weight is the heaviest in the lineup, delivering maximum vibration damping
- Same 8,250 mm X-travel and 1,000 mm Z-depth as the 3780, with 600 mm more cross-travel
- Double-column construction ensures consistent rigidity across the full 5-meter Y-span
- 45,000 kg table capacity handles oversized castings, weldments, and structural assemblies
- F II thermal compensation maintains geometric accuracy through multi-hour cycles
Limitations
- 130-ton weight demands the most robust foundation engineering in the DCM family
- Largest footprint of the 8.25-meter X-travel models — requires a big bay
- Premium price over the 3780 for the additional 600 mm of Y-travel may not be justified for all applications
- Long lead times for a machine of this scale and specialization
Best For
Frequently Asked Questions
01
Expect $1,100,000 to $1,900,000 depending on spindle configuration, tooling, and accessories. Foundation engineering and installation for a 130-ton machine typically adds $150,000-$300,000 to the total project cost.
02
The 4280 adds 600 mm of Y-axis travel (5,000 vs 4,400 mm) while keeping the same X and Z travels. If your parts regularly exceed 4.4 meters in width, or you need the extra Y-travel for fixturing clearance, the 4280 is the right choice. Otherwise, the 3780 saves money.
03
The working envelope spans 8,250 x 5,000 x 1,000 mm with a 45,000 kg table capacity. Practical part size also depends on fixturing, tool length, and spindle head clearance. Consult DN Solutions applications engineering for specific part evaluations.
04
Yes. The 130-ton mass and double-column rigidity handle the high cutting forces titanium demands. Many DCM machines are installed in aerospace facilities specifically for titanium structural components. Proper spindle selection and coolant configuration are critical for titanium performance.
