Johnford DMC-6100SH

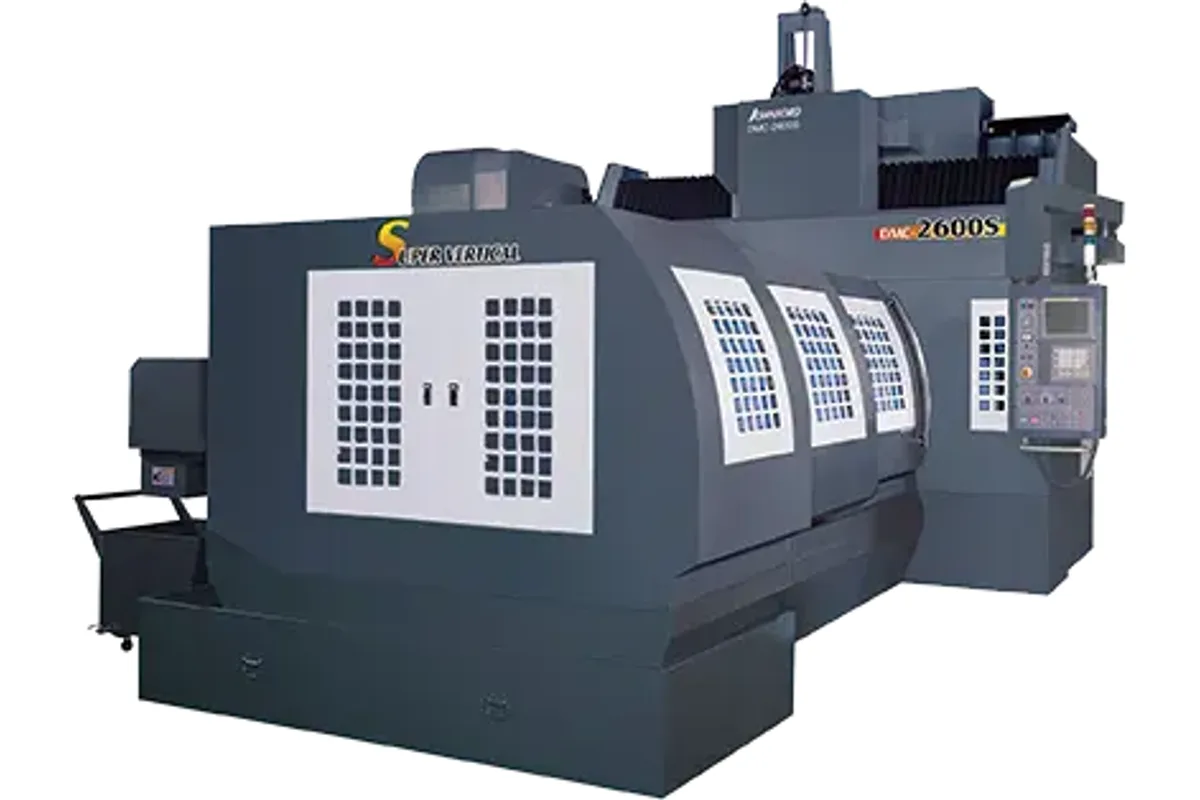

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
distance between columns
x axis travel
How much does the Johnford DMC-6100SH cost?
Price estimate
We do not have a price for the Johnford DMC-6100SH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Top of the DMC-S table, the Johnford DMC-6100SH has every figure of the frame at its maximum: 6,100 mm (240.2 in) of X, a 14,000 kg (30,800 lb) table load, 47,000 kg (103,525 lb) of machine weight, and the No.50 spindle with its 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear drive.
It remains a fixed-column machine. The table, 6,200 x 1,500 mm (244.1 x 59 in), carries the part past the bridge, which is why the installed length is 15,590 mm (613.8 in). Beyond this size Johnford's answer is a different architecture, the sliding double column SDMC, where the workpiece stays still.
Y travel is 1,778 mm (70 in). Parts wider than that, at shorter lengths, belong on the DMC-P frame; the DMC-4100PH offers 2,300 mm of Y but no more than 4,100 mm (161.4 in) of X. So the 6100SH has a clear niche: long, relatively narrow, heavy steel and iron parts. Lathe beds, planer-type machine components, rolling mill parts, long die shoes.
The spindle takes BT-50 / CAT-50 holders, HSK A100 optionally, on a 90 mm (3.5 in) bearing. 6,000 rpm is standard. Tools up to Ø200 mm (Ø7.8 in), 400 mm (15.7 in) and 15 kg (33 lb) go through the 24-tool arm type changer. Standard coolant is an external 2 bar supply; high pressure coolant through the spindle at 20 bar is an extra worth considering for deep drilling along a six-metre part.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 1,796 mm (70.7 in) |
| Table Size | 6,200 x 1,500 mm (244.1 x 59 in) |
| X Axis Travel | 6,100 mm (240.2 in) |
| Y Axis Travel | 1,778 mm (70 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Spindle Taper | BT-50 / CAT-50; HSK A100(Opt.) |
| Spindle Bearing Diameter | 90 mm (3.5 in) |
| Spindle Speed | 6,000; 10,000 rpm |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear; 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) Built-in |
| Rapid Traverse Xyz | 12 / 12 / 12 m/min (472 / 472 / 472 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø5 in) |
| Tool Capacity | Arm type 24 ; 32 / 40 (Opt.) |
| Max Tool Diameter (full magazine) | Ø200 mm (Ø7.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Selection | Bi-direction random type, Shortest path |
| Max Table Load | 14,000 kg (30,800 lb) |
| Machine Dimensions | 15,590 x 4,600 x 4,013 mm (613.8 x 181.1 x 158 in) |
| Machine Weight | 47,000 kg (103,525 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest envelope of the frame: 6,100 x 1,778 x 800 mm (240.2 x 70 x 31.5 in)
- 14,000 kg (30,800 lb) table load
- 22 / 26 kW (29.5 / 34.9 hp) geared 50-taper spindle
- 47,000 kg (103,525 lb) machine weight behind heavy cuts
- HSK A100 and 10,000 rpm built-in spindles available as options
Limitations
- Needs 15,590 mm (613.8 in) of length for the moving table
- Table is 1,500 mm wide; wider parts need the DMC-P frame
- Standard coolant is a 2 bar external supply
- 6,000 rpm standard spindle speed
Best For
Frequently Asked Questions
01
Travels of 6,100 x 1,778 x 800 mm (240.2 x 70 x 31.5 in), a 6,200 x 1,500 mm (244.1 x 59 in) table rated 14,000 kg (30,800 lb), and a BT-50 / CAT-50 spindle at 6,000 rpm with 22 / 26 kW (29.5 / 34.9 hp).
02
The SDMC-6000x2800x800 is a sliding double column machine with 6,000 mm (236.2 in) of X, 2,800 mm (110.2 in) of Y and a 6,000 x 2,200 mm (236.2 x 86.6 in) table. The DMC-6100SH moves its table instead and has 1,778 mm (70 in) of Y. Both use a 22 / 26 kW (29.5 / 34.9 hp) BT-50 / CAT-50 spindle at 6,000 rpm.
03
15,590 x 4,600 x 4,013 mm (613.8 x 181.1 x 158 in) and 47,000 kg (103,525 lb). The DMC-5100SH, one size shorter, is 13,666 mm (538 in) long and weighs 42,100 kg (92,620 lb).
04
Not as standard. The base machine has an external coolant supply at 2 bar with spindle nozzles. High pressure coolant through the spindle or through the tool tip at 20 bar, with cartridge type filtration, is optional.
More from Johnford
Other Vertical Machining Centers (VMC)
Republic Lagun VBMA-1600

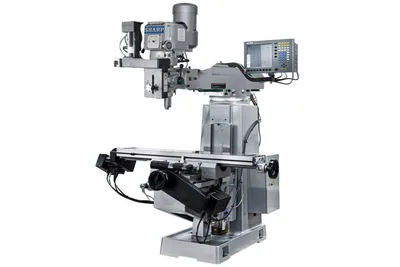

Sharp TMV-1-MP-3
