Anderson FUV-250
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Anderson FUV-250 cost?
Price estimate
We do not have a price for the Anderson FUV-250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Anderson FUV-250 is a compact trunnion-type 5-axis machining center with a Ø255 mm (Ø10.0 in) table rated for 100 kg (220 lb). It shares its frame with the smaller FUV-170: X travel is the same 360 mm (14.2 in), Z the same 465 mm (18.3 in), and both machines weigh 4,500 kg (9,921 lb). Y travel is slightly longer at 440 mm (17.3 in).
So the choice between the two is about the table. The FUV-250 carries more than three times the load of the FUV-170, which lists 30 kg (66 lb), and the larger faceplate takes a proper 5-axis vise or a small fixture plate. In exchange the rotary axes are much slower. A is listed at 22.2 rpm and C at 33.3 rpm, both direct drive, where the FUV-170 lists 100 rpm and 250 rpm. For 3+2 work, where the table indexes and then stands still, that hardly matters. For continuous 5-axis contouring of small parts it does.
The spindle is the lighter of the two used in the series: ISO 40, direct drive, 12,000 rpm with 15,000 listed, and a 5.5/7.5 kW motor. With 100 kg on the table the machine can hold a steel workpiece of real size, but the motor is better matched to aluminum and to finishing than to heavy stock removal.
A tilts from +30° to -120° and C turns through a continuous 360°. Linear rapids are 36/36/36 m/min and the cutting feed rate is 12 m/min. The 24 tool magazine, with 30 and 36 listed, changes tools in 1.55 sec. Coolant capacity is 180 L. Control is FANUC 0i-MF.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø255 mm (Ø10.0 in) |
| X Axis Travel | 360 mm (14.2 in) |
| Y Axis Travel | 440 mm (17.3 in) |
| Z Axis Travel | 465 mm (18.3 in) |
| A Axis Range | +30° to -120° |
| C Axis Range | 360° Continuous |
| A Axis Speed | 22.2 rpm |
| C Axis Speed | 33.3 rpm |
| Rotary Axis Resolution | 0.001° |
| Rotary Axis Drive | Direct Drive |
| Spindle Taper | ISO 40 |
| Max Spindle Speed | 12,000 rpm (15,000) |
| Spindle Motor Power | 5.5/7.5 kW |
| Spindle Transmission | Direct Drive |
| Tool Capacity | 24 (30, 36) |
| Tool Selection Method | Random |
| Max Tool Diameter (full magazine) | Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in) |
| Max Tool Weight | 7 kg (15 lb) |
| Tool Change Time | T-T: 1.55 sec; C-C: 5 sec |
| Max Tool Length | 250 mm (9.8 in) |
| Positioning Accuracy | ±0.008 mm |
| Repeatability | ±0.005 mm |
| Rapid Traverse Xyz | 36/36/36 m/min |
| Cutting Feed Rate | 12 m/min |
| Machine Dimensions | 2,560 x 3,310 x 2,910 mm (100.8 x 130.3 x 114.6 in) |
| Machine Weight | 4,500 kg (9,921 lb) |
| Coolant Tank Capacity | 180 L |
| Coolant Flow | 100 L/min |
| Air Pressure Required | 5-7 kg/cm² |
| CNC Control | FANUC 0i-MF |
| Max Table Load | 100 kg (220 lb) |
Specifications sourced from andersonvmc.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Ø255 mm (Ø10.0 in) table rated for 100 kg (220 lb)
- Same 4,500 kg (9,921 lb) machine weight as the FUV-170 with a larger table
- Direct-drive A and C axes with 0.001° resolution
- 36/36/36 m/min linear rapids
- Positioning accuracy of ±0.008 mm and repeatability of ±0.005 mm
Limitations
- Rotary speeds of 22.2 rpm on A and 33.3 rpm on C are far below the 100 rpm and 250 rpm of the FUV-170
- X travel is only 360 mm (14.2 in)

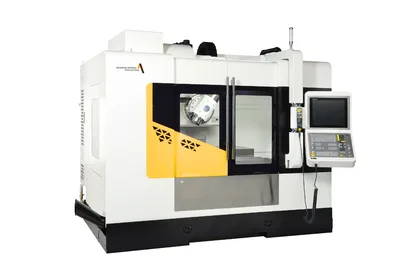

- Spindle motor is 5.5/7.5 kW; the 7.5/11 kW motor starts with the FUV-400
- Coolant tank is 180 L, against 350 L on the FUV-400
Best For
Frequently Asked Questions
01
The table is Ø255 mm (Ø10.0 in) and the maximum table load is 100 kg (220 lb). Travels are 360 mm (14.2 in) in X, 440 mm (17.3 in) in Y and 465 mm (18.3 in) in Z.
02
Choose by part weight and by how the rotary axes are used. The FUV-250 carries 100 kg (220 lb) on a Ø255 mm table; the FUV-170 carries 30 kg (66 lb) on Ø170 mm. The FUV-170 has much faster rotary axes, 100 rpm on A and 250 rpm on C, which favours continuous 5-axis motion on small parts. Spindle, magazine and linear rapids are the same.
03
The A axis tilts from +30° to -120° and the C axis rotates 360° continuously. Both axes are direct drive with a resolution of 0.001°. Tilting past the horizontal lets the tool reach slightly undercut features without a second setup.
04
Machine dimensions are 2,560 x 3,310 x 2,910 mm (100.8 x 130.3 x 114.6 in) and the weight is 4,500 kg (9,921 lb). It needs air at 5-7 kg/cm² and has a 180 L coolant tank with a flow of 100 L/min.
