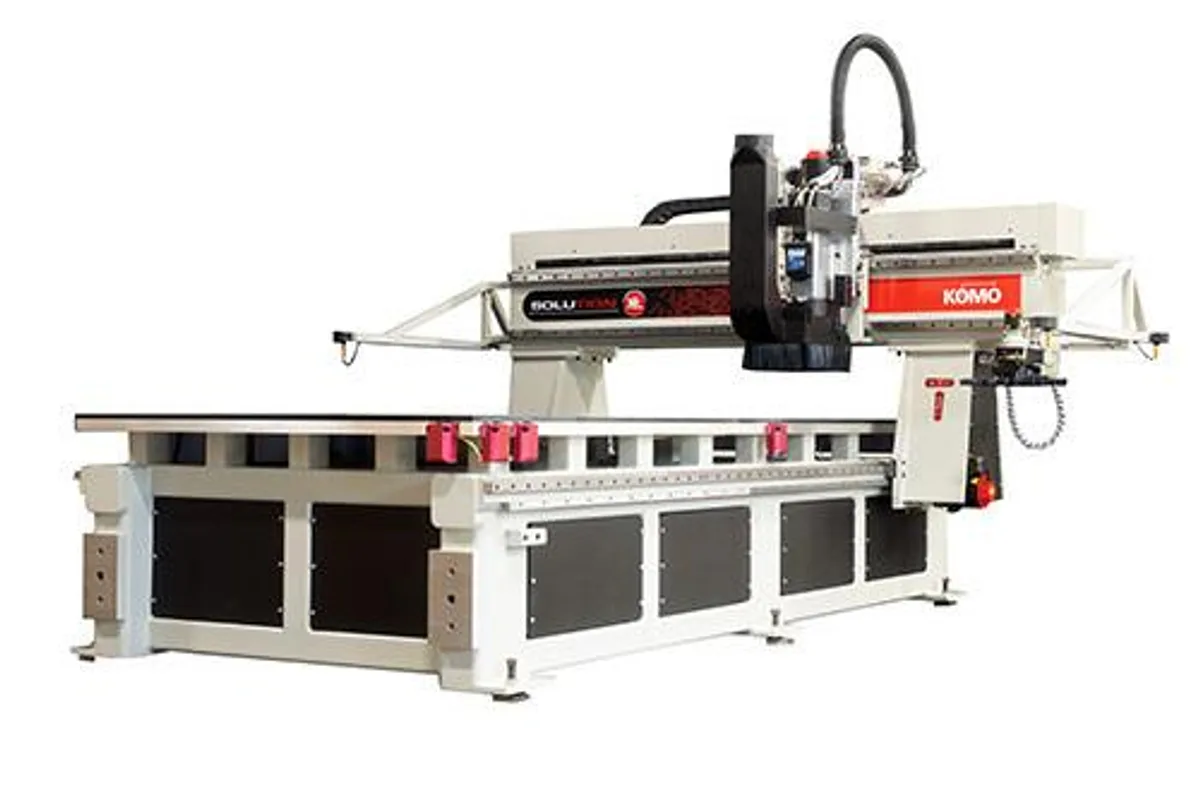

Komo Solution XL
Image: komo.com, Komo
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
spindle quantity
How much does the Komo Solution XL cost?
Price estimate
We do not have a price for the Komo Solution XL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Komo Solution XL is a moving gantry router on a 60 in wide bed whose length is the buyer's choice. Three sizes are catalogued, and Komo will build the table up to 60 in x 110 ft (1,524 mm x 33,000 mm).
The listed sizes are the 510 at 60 in x 120 in (1,524 mm x 3,048 mm), the 512 at 60 in x 144 in (1,524 mm x 3,658 mm) and the 524 at 60 in x 288 in (1,524 mm x 7,316 mm). X travel is 131 in (3,327 mm), 155 in (3,937 mm) and 299 in (7,595 mm) in that order, with 80 in (2,032 mm) in Y. Because the gantry moves and the bed does not, the machine takes up little more floor than its table, and the 524 can hold two full sheets end to end.
A long gantry axis needs a drive that keeps both ends in step. Komo uses a dual helical rack drive on the X/U axes with synchronous axis control, a detail it lists only for the Solution series. Traverse is 2,100 ipm (53.5 m/min) in X, 2,300 ipm (58.5 m/min) in Y and 1,200 ipm (30.5 m/min) in Z, with 95 in/sec² acceleration.
The working head is kept simple. There is one 18 hp (13.2 kW) four-pole, fan-cooled HSK 63F spindle with a programmable speed of up to 24,000 rpm, and a 12-tool changer with aggregate capability. Z travel is 10 in (254 mm), and an optional 17.7 in (450 mm) Z travel is available for thicker work. Options include boring blocks from nine to 25 spindles, a C axis for aggregate tooling, mist coolant and automatic material handling.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Motor Power | 18 hp (13.2 kW), four-pole, fan cooled |
| Max Spindle Speed | Up to 24,000 rpm, fully programmable |
| Spindle Taper | HSK 63F |
| Spindle Quantity | 1 Hiteco or HSD spindle |
| Table Size Max | Available up to 60 in x 110 ft (1,524 mm x 33,000 mm) |
| Part Location Pins | Four (4) 1 in (25 mm) part location pins |
| Table Size | 510: 60 in x 120 in (1,524 mm x 3,048 mm); 512: 60 in x 144 in (1,524 mm x 3,658 mm); 524: 60 in x 288 in (1,524 mm x 7,316 mm) |
| Tool Capacity | 12 tools |
| Max Tool Diameter (full magazine) | 3.25 in (82 mm) positions full; 6.5 in (165 mm) adjacent positions empty |
| Max Tool Weight | 12 lbs each / 80 lbs (total) (5.4 kg / 36.4 kg) |
| Max Tool Length | 5 in (127 mm) |
| Tool Changer Type | Aggregate-capable tool changer |
| Feed Rate Traverse X | 2,100 ipm (53.5 m/min) |
| Feed Rate Traverse Y | 2,300 ipm (58.5 m/min) |
| Feed Rate Traverse Z | 1,200 ipm (30.5 m/min) |
| Acceleration Deceleration | 95 in/sec² |
| Z Axis Travel Optional | Optional 17.7 in (450 mm) Z travel is available |
| Axis Travels | 510: 131 in (3,327 mm) x 80 in (2,032 mm) x 10 in (254 mm); 512: 155 in (3,937 mm) x 80 in (2,032 mm) x 10 in (254 mm); 524: 299 in (7,595 mm) x 80 in (2,032 mm) x 10 in (254 mm) |
| CNC Control | FANUC Controls with integrated PC and 19 in touch screen display |
| Dust Collection Interface | 6 in (152 mm) diameter (recommended volume 900 cfm) |
| Vacuum System | With low vacuum sensing interface |
Specifications sourced from komo.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Bed length to order: three listed tables and builds up to 60 in x 110 ft (1,524 mm x 33,000 mm)
- Dual helical rack drive on the X/U axes with synchronous axis control
- Optional 17.7 in (450 mm) Z travel over the standard 10 in (254 mm)
- 18 hp (13.2 kW) HSK 63F spindle running up to 24,000 rpm
- The 524 offers 299 in (7,595 mm) of X travel on a 60 in x 288 in (1,524 mm x 7,316 mm) table
Limitations
- The tool changer row lists 12 tools with no expansion figure
- X traverse of 2,100 ipm (53.5 m/min) is below the 3,150 ipm (80 m/min) of the moving table Xtreme XL
- One spindle only is listed
- Table width is fixed at 60 in; wider beds are the Solution Wide
Best For
Frequently Asked Questions
01
The listed tables are 60 in x 120 in (1,524 mm x 3,048 mm), 60 in x 144 in (1,524 mm x 3,658 mm) and 60 in x 288 in (1,524 mm x 7,316 mm). Beyond those Komo states that the table is available up to 60 in x 110 ft (1,524 mm x 33,000 mm). Each table has four 1 in (25 mm) part location pins.
02
Komo lists a dual helical rack drive on the X/U axes with synchronous axis control. X and U are the two sides of the gantry, each with its own rack, and the control keeps them synchronised. X traverse is 2,100 ipm (53.5 m/min) and acceleration is 95 in/sec².
03
10 in (254 mm) on all three listed sizes. Komo adds that an optional 17.7 in (450 mm) Z travel is available. Z traverse is 1,200 ipm (30.5 m/min).
04
Width. The Solution XL bed is 60 in wide. The Solution Wide starts at 96 in x 144 in (2,438 mm x 3,658 mm) and goes to 144 in x 144 in (3,658 mm x 3,658 mm). Spindle, tool changer and traverse rates are the same in both data blocks, and both can be built up to 110 ft long.
