Komo Solution Wide
Image: komo.com, Komo
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
spindle quantity
How much does the Komo Solution Wide cost?
Price estimate
We do not have a price for the Komo Solution Wide that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

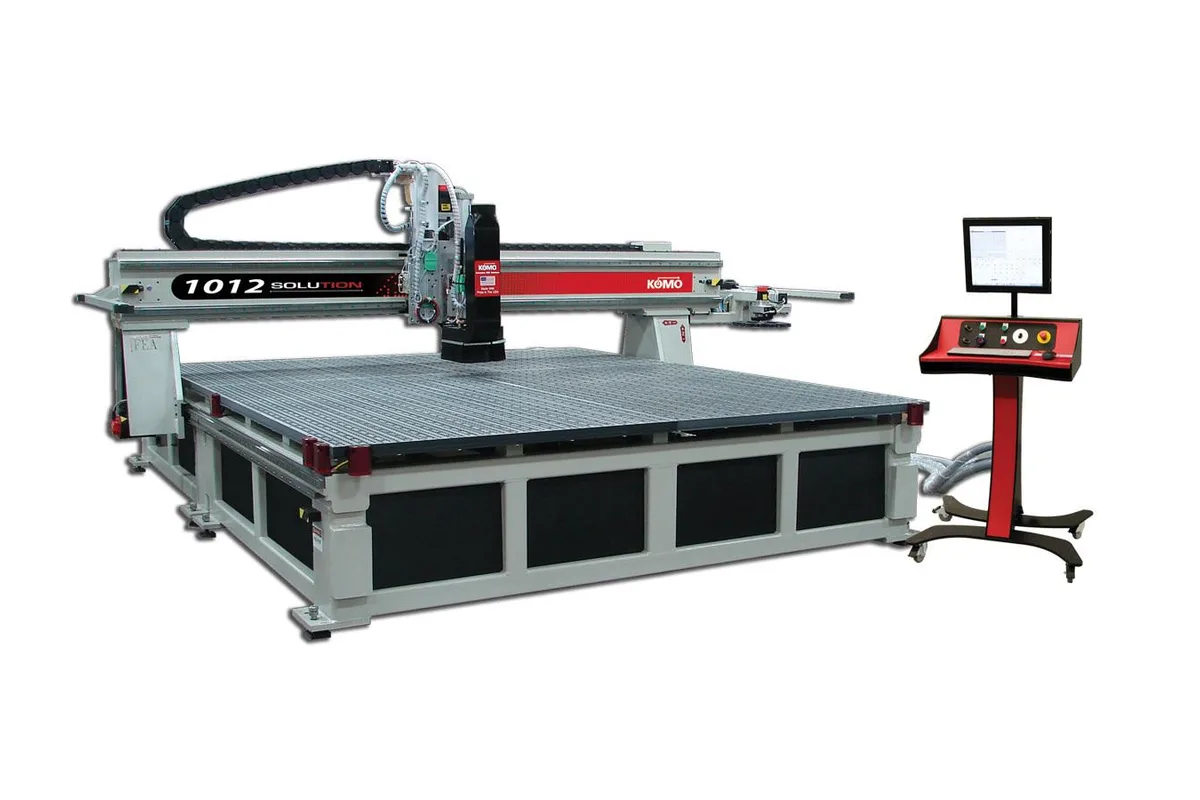

Most routers are built around a sheet five feet wide. The Komo Solution Wide is for material that is not: its three tables are 96 in, 120 in and 144 in wide, each 144 in long, under a moving gantry. Komo developed it for customers who need more table width than a Solution XL.
Komo calls the sizes the 812, the 1012 and the 1212. Their tables measure 96 in x 144 in (2,438 mm x 3,658 mm), 120 in x 144 in (3,048 mm x 3,658 mm) and 144 in x 144 in (3,658 mm x 3,658 mm). All three travel 155 in (3,937 mm) in X. The cross travel follows the width: 116 in (2,946 mm), 140 in (3,556 mm) and 164 in (4,165 mm). If square is not long enough, the table is available up to 144 in x 110 ft (3,658 mm x 33,000 mm).
Spanning 144 in with a gantry is a structural question before it is a spindle question. Komo's answers on the page are an FEA engineered structure in heavy-duty steel fabrication and a dual helical rack drive on the X/U axes with synchronous axis control. The cutting head is modest by comparison. It is a single 18 hp (13.2 kW) fan-cooled HSK 63F spindle running up to 24,000 rpm with a 12-tool aggregate-capable changer.
Traverse is 2,100 ipm (53.5 m/min) in X, 2,300 ipm (58.5 m/min) in Y and 1,200 ipm (30.5 m/min) in Z, and acceleration is 83.3 in/sec². Z travel is 10 in (254 mm) with an optional 17.7 in (450 mm). On a bed this wide the operator cannot reach the middle from the side, so plan how sheets and parts will be loaded and cleared.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Motor Power | 18 hp (13.2 kW), four-pole, fan cooled |
| Max Spindle Speed | Up to 24,000 rpm, fully programmable |
| Spindle Taper | HSK 63F |
| Spindle Quantity | 1 Hiteco or HSD spindle |
| Table Size Max | Available up to 144 in x 110 ft (3,658 mm x 33,000 mm) |
| Part Location Pins | Four (4) 1 in (25 mm) part location pins |
| Table Size | 812: 96 in x 144 in (2,438 mm x 3,658 mm); 1012: 120 in x 144 in (3,048 mm x 3,658 mm); 1212: 144 in x 144 in (3,658 mm x 3,658 mm) |
| Tool Capacity | 12 tools |
| Max Tool Diameter (full magazine) | 3.25 in (82 mm) positions full; 6.5 in (165 mm) adjacent positions empty |
| Max Tool Weight | 12 lbs each / 80 lbs (total) (5.4 kg / 36.4 kg) |
| Max Tool Length | 5 in (127 mm) |
| Tool Changer Type | Aggregate-capable tool changer |
| Feed Rate Traverse X | 2,100 ipm (53.5 m/min) |
| Feed Rate Traverse Y | 2,300 ipm (58.5 m/min) |
| Feed Rate Traverse Z | 1,200 ipm (30.5 m/min) |
| Acceleration Deceleration | 83.3 in/sec² |
| Z Axis Travel Optional | Optional 17.7 in (450 mm) Z travel is available |
| Axis Travels | 812: 155 in (3,937 mm) x 116 in (2,946 mm) x 10 in (254 mm); 1012: 155 in (3,937 mm) x 140 in (3,556 mm) x 10 in (254 mm); 1212: 155 in (3,937 mm) x 164 in (4,165 mm) x 10 in (254 mm) |
| CNC Control | FANUC Controls with integrated PC and 19 in touch screen display |
| Dust Collection Interface | 6 in (152 mm) diameter (recommended volume 900 cfm) |
| Vacuum System | With low vacuum sensing interface |
Specifications sourced from komo.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Tables 96 in, 120 in or 144 in wide, each 144 in long
- Cross travel up to 164 in (4,165 mm) on the 1212
- Available up to 144 in x 110 ft (3,658 mm x 33,000 mm)
- Dual helical rack drive on the X/U axes with synchronous axis control
- Optional 17.7 in (450 mm) Z travel over the standard 10 in (254 mm)
Limitations
- One 18 hp (13.2 kW) spindle and a 12-tool changer serve a very large table
- The centre of a 144 in wide bed is out of arm's reach, which complicates loading and cleanup
- Acceleration of 83.3 in/sec² is lower than the 95 in/sec² of the Solution XL
- Komo lists no automatic material handling option on this page, unlike the Solution XL
Best For
Frequently Asked Questions
01
Three: the 812 with a 96 in x 144 in (2,438 mm x 3,658 mm) table, the 1012 with 120 in x 144 in (3,048 mm x 3,658 mm) and the 1212 with 144 in x 144 in (3,658 mm x 3,658 mm). Komo adds that the table is available up to 144 in x 110 ft (3,658 mm x 33,000 mm), and each table has four 1 in (25 mm) part location pins.
02
The 812 travels 155 in (3,937 mm) x 116 in (2,946 mm) x 10 in (254 mm), the 1012 travels 155 in (3,937 mm) x 140 in (3,556 mm) x 10 in (254 mm) and the 1212 travels 155 in (3,937 mm) x 164 in (4,165 mm) x 10 in (254 mm). An optional 17.7 in (450 mm) Z travel is available.
03
One Hiteco or HSD spindle rated 18 hp (13.2 kW), four-pole and fan cooled, with an HSK 63F taper and up to 24,000 rpm. The changer holds 12 tools and accepts aggregates. Boring blocks from nine to 25 spindles and a C axis for four axis machining are options, as is mist coolant for non-ferrous metals.
04
Komo recommends the machine for wood applications, plastic applications and aluminum applications. The universal grid fixture table is composite as standard with aluminum as an option, and the vacuum system has a low vacuum sensing interface.
