HOLZ-HER EVOLUTION 7402

Specs verified 2026-10-05 · holzher.co.uk Updated 2026-10-05

Image: holzher.co.uk, HOLZ-HER

Key Specifications

Spindle Power

10.3 kW (13.8 hp), HSK chuck

machining length x

2,500 mm (98.4 in)

machining height y

920 mm (36.2 in)

spindle speed range

1,000-24,000 rpm

max tool diameter

80 mm (3.1 in)

max tool length

80 mm (3.1 in) from front edge of chuck

How much does the HOLZ-HER EVOLUTION 7402 cost?

Price estimate

Uncertain

We do not have a price for the HOLZ-HER EVOLUTION 7402 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

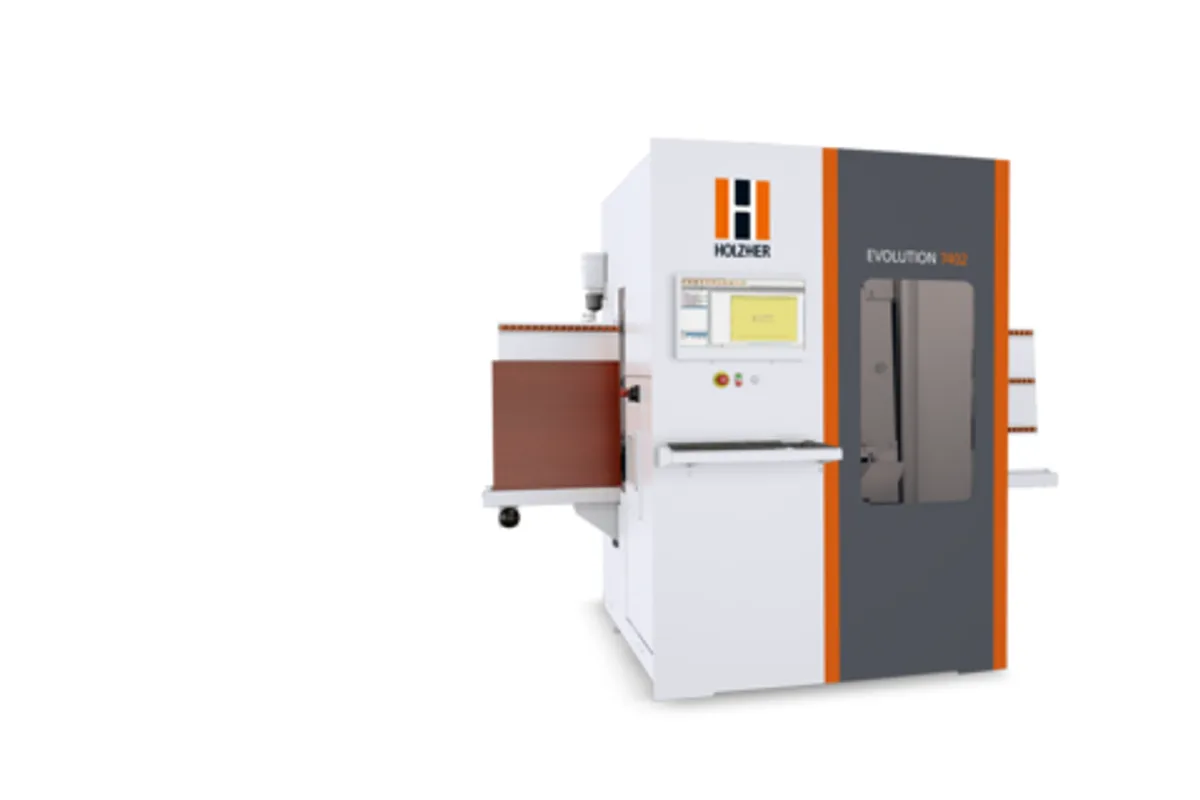

The HOLZ-HER EVOLUTION 7402 is a vertical CNC machining centre: the panel stands on edge on rollways and is machined by a drilling and routing head, so the whole machine is 2,960 mm (116.5 in) long, 1,725 mm (67.9 in) deep and 2,440 mm (96.1 in) high. HOLZ-HER puts the floor space at less than 5 m². Edge routing dimensions are 2,500 mm (98.4 in) in X and 920 mm (36.2 in) in Y.

It is the shorter of the two EVOLUTION frames. The EVOLUTION 7405 is 3,200 mm (126.0 in) in X and has a height-adjustable run-in linear guide, a row this model's table leaves empty. Material from 8 to 70 mm thick is accepted, and because the panel is fed lengthwise HOLZ-HER describes the workable length as unlimited.

The drilling head carries 15 spindles (9 vertical, 6 horizontal) and a sawing unit in X, which covers rows of holes, edge drilling and back-panel grooves. For routing, the table lists a 10.3 kW (13.8 hp) cutter unit with HSK chuck and a 1,000 to 24,000 rpm range, taking tools up to 80 mm (3.1 in) in diameter and 80 mm (3.1 in) long from the front edge of the chuck. The Quattro HSK package combines that spindle with a 4-position tool changer, and with it the machine formats on four sides, profiles and mills pockets in one clamping. The optional door package requires the Quattro HSK package as well.

Clamping is automatic: a vacuum system positions its own suction cups, and an ECO-Vac 8 m³/h vacuum pump is the listed option. Vector speed is 68 m/min and the machine weighs 2,500 kg (5,511 lb). Extraction needs two connections of 120 mm (4.7 in) diameter and one of 140 mm (5.5 in).

Full Specifications

Parameter	Value
Machining Length X	2,500 mm (98.4 in)
Machining Height Y	920 mm (36.2 in)
Spindle Motor Power	10.3 kW (13.8 hp), HSK chuck
Spindle Speed Range	1,000-24,000 rpm
Max Tool Diameter (full magazine)	80 mm (3.1 in)
Max Tool Length	80 mm (3.1 in) from front edge of chuck
Vector Speed	68 m/min
Safety Equipment	CE compliant
Drilling Head	15 spindles (9 V \| 6 H), sawing unit in X direction
Drilling Head Options	XL drilling head with sawing unit in X direction; double drilling spindle in Y direction; vertical adapter with double positioning force
Workpiece Clamping	Automatically positioning vacuum system
Vacuum Pump Option	ECO-Vac 8 m³/h vacuum pump
Workpiece Support	Solid rollways incl. stops
Software	CAMPUS / NC-HOPS incl. aCADemy CAD/CAM module with machine license
Machine Weight	2,500 kg (5,511 lb)
Overall Length	2,960 mm (116.5 in)
Overall Height	2,440 mm (96.1 in)
Overall Depth	1,725 mm (67.9 in)
Extraction Connections	2 x dia. 120 mm (4.7 in) + 1 x dia. 140 mm (5.5 in)

Specifications sourced from holzher.co.uk — verified 2026-10-05

Strengths & Limitations

Strengths

Footprint of 2,960 mm (116.5 in) by 1,725 mm (67.9 in), which HOLZ-HER describes as less than 5 m² of floor space
A 15-spindle drilling head with sawing unit in X is standard
10.3 kW (13.8 hp) HSK cutter unit with a 1,000 to 24,000 rpm range
Automatically positioning vacuum clamping for material from 8 to 70 mm thick
Panels up to 920 mm (36.2 in) high can be fed through in unlimited length

Limitations

Y dimension is 920 mm (36.2 in), so tall cabinet sides lying crosswise and full-height doors do not fit
Tools are limited to 80 mm (3.1 in) in diameter and 80 mm (3.1 in) in length
The table shows no tool changer for the base machine; the 4-position changer comes with the Quattro HSK package
X is 2,500 mm (98.4 in) against 3,200 mm (126.0 in) on the EVOLUTION 7405

Best For

Workshops with very little floor space for a CNC Drilling, grooving and formatting of cabinet parts, drawers and fronts Strip-to-part production with the optional xcut package

Frequently Asked Questions

01 How much space does the EVOLUTION 7402 need?

The machine is 2,960 mm (116.5 in) long, 1,725 mm (67.9 in) deep and 2,440 mm (96.1 in) high, and weighs 2,500 kg (5,511 lb). HOLZ-HER describes it as needing less than 5 m² of floor space. Long panels need clear room at both ends, since they pass through lengthwise.

02 What size panels can the EVOLUTION 7402 machine?

Edge routing dimensions are 2,500 mm (98.4 in) in X and 920 mm (36.2 in) in Y. HOLZ-HER states that workpieces up to 920 mm high and of unlimited length can be processed, in thicknesses from 8 to 70 mm, and that lengths up to 2,500 mm need no additional supports.

03 Does the EVOLUTION 7402 have a routing spindle and tool changer?

The technical data table lists a 10.3 kW (13.8 hp) cutter unit with HSK chuck, 1,000 to 24,000 rpm, and shows no tool changer. HOLZ-HER offers the Quattro HSK package, in which that spindle comes with a 4-position tool changer for 4-sided formatting, profiling and pocket milling in one clamping.

04 What is the xcut package?

An option that makes the machine a cutting and formatting station for panel strips. Strips already cut lengthwise are fed in, and the EVOLUTION cuts them to precise length, mills them on 4 sides and drills them as required, which removes the separate cross-cut on a saw.
