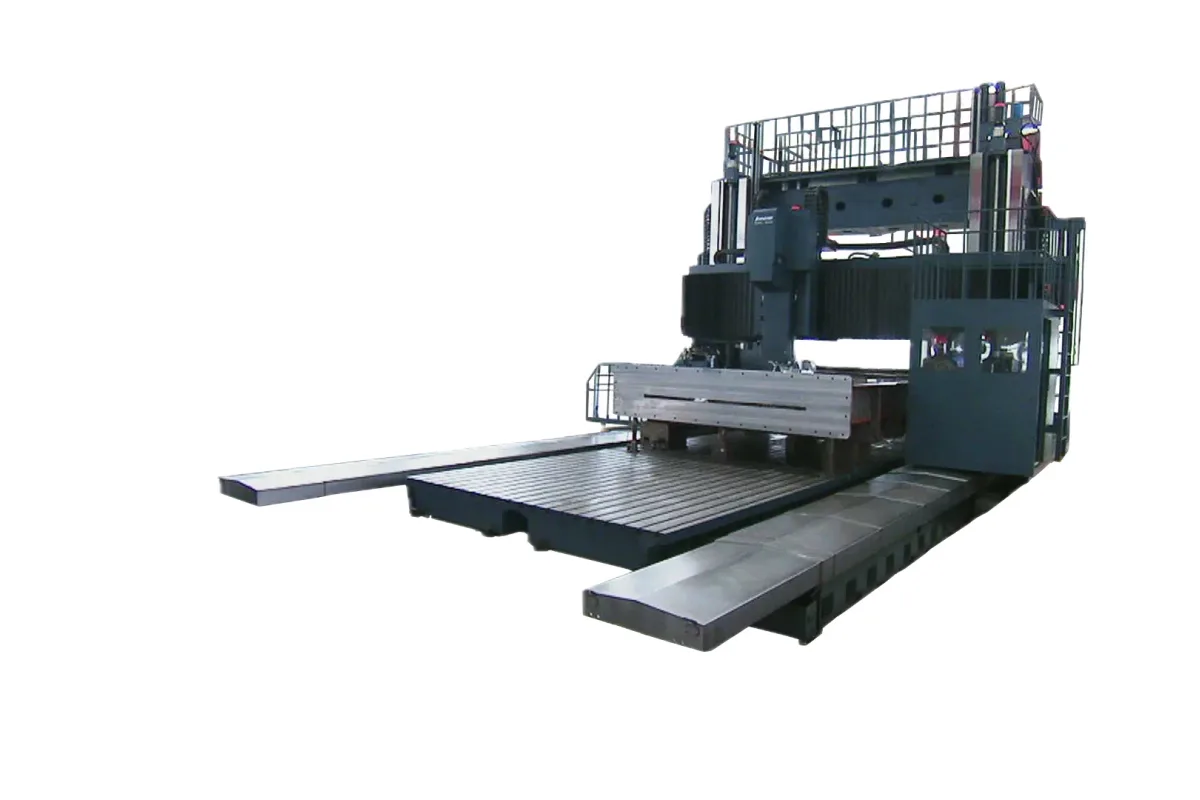

Johnford SDMC-16000X4600X1400-W
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford SDMC-16000X4600X1400-W cost?
Price estimate
We do not have a price for the Johnford SDMC-16000X4600X1400-W that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Sixteen metres of X makes the Johnford SDMC-16000X4600X1400-W the largest machine with a published table on Johnford's site. It is a portal machining center with a movable crossbeam: 16,000 mm (630 in) in X, 4,600 mm (181.1 in) in Y, 1,400 mm (55.1 in) in Z and 2,200 mm (86.6 in) in W.
The W axis is what the suffix refers to, and it explains an unusual figure. Spindle nose to table distance runs from 400 to 4,000 mm (15.7~157.5 in), far more than the Z stroke, because the whole crossbeam climbs the columns. A low plate and a casting several metres tall can be machined on the same table. The crossbeam is slow, 1 m/min (39 ipm), since it is a positioning axis; X, Y and Z rapid at 10 m/min (394 ipm).
Everything about the spindle says heavy and slow. BT-50 taper, Ø100 mm (Ø4 in) spindle diameter, 3,000 rpm through a Hi-Lo Gear, 37 / 45 kW (49.6 / 60.3 hp). The 50-tool arm type magazine takes cutters up to 250 mm (10 in) in diameter. This is a machine for ship engine frames, press crowns, large turbine casings and the bases of other heavy machines.
The table, 16,000 x 4,000 mm (630 x 157.5 in), is rated 3 ton/m². The columns stand 4,700 mm (185 in) apart, so the Y travel of 4,600 mm (181.1 in) covers nearly the whole opening.
At 183,500 kg (403,700 lb), 24,450 mm (963 in) long, 9,930 mm (391 in) wide and 8,215 mm (323.4 in) high, the building is part of the project.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 16,000 mm (630 in) |
| Y Axis Travel | 4,600 mm (181.1 in) |
| Z Axis Travel | 1,400 mm (55.1 in) |
| W Axis Travel | 2,200 mm (86.6 in) |
| Table Size | 16,000 x 4,000 mm (630 x 157.5 in) |
| Distance Between Columns | 4,700 mm (185 in) |
| Distance Spindle Nose to Table | 400~4,000 mm (15.7~157.5 in) |
| Spindle Taper | BT-50 |
| Spindle Diameter | Ø100 mm (Ø4 in) |
| Spindle Speed | 3,000 rpm Hi-Lo Gear |
| Spindle Motor Power | 37 / 45 kW (49.6 / 60.3 hp) |
| Rapid Traverse Xyzw | 10 / 10 / 10 / 1 m/min (394 / 394 / 394 / 39 ipm) |
| Tool Shank | BT-50 |
| Tool Capacity | 50 Arm Type |
| Max Tool Diameter (full magazine) | 250 mm (10 in) |
| Max Tool Length | 400 mm (16 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Selection | Bi-Direction Random Type,Shortest Path |
| Table Load Capacity | 3 ton/m² |
| Machine Length | 24,450 mm (963 in) |
| Machine Width | 9,930 mm (391 in) |
| Machine Height | 8,215 mm (323.4 in) |
| Machine Weight | 183,500 kg (403,700 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 16,000 x 4,600 mm of X and Y travel over a 16,000 x 4,000 mm (630 x 157.5 in) table
- W axis of 2,200 mm (86.6 in) gives 400~4,000 mm (15.7~157.5 in) between spindle nose and table
- 37 / 45 kW (49.6 / 60.3 hp) Hi-Lo Gear spindle with a Ø100 mm (Ø4 in) spindle diameter
- Tool diameter up to 250 mm (10 in)
- Linear scales on the X axes are standard
Limitations
- Spindle speed limited to 3,000 rpm
- Rapids of 10 m/min (394 ipm) over a 16,000 mm axis
- 8,215 mm (323.4 in) machine height
- No cutting feed range is given in the maker's table
Best For
Frequently Asked Questions
01
The W axis, the vertical travel of the crossbeam, which is 2,200 mm (86.6 in) on this machine. Combined with 1,400 mm (55.1 in) of Z it gives a spindle nose to table range of 400~4,000 mm (15.7~157.5 in).
02
183,500 kg (403,700 lb). Its overall size is 24,450 mm (963 in) by 9,930 mm (391 in) by 8,215 mm (323.4 in), so foundation, crane and hall height have to be planned around it.
03
A BT-50 spindle at 3,000 rpm with a Hi-Lo Gear and a 37 / 45 kW (49.6 / 60.3 hp) motor. The arm type changer holds 50 tools up to 250 mm (10 in) in diameter, 400 mm (16 in) long and 20 kg (44 lb).
04
The SDMC-6000x2800x800 has 6,000 mm (236.2 in) of X, 2,800 mm (110.2 in) of Y, a 22 / 26 kW (29.5 / 34.9 hp) spindle at 6,000 rpm and weighs 63,000 kg (138,600 lb). The 16000 model has 16,000 mm (630 in) of X, 4,600 mm (181.1 in) of Y and a 37 / 45 kW (49.6 / 60.3 hp) spindle at 3,000 rpm.
