Johnford DMC-3100PH

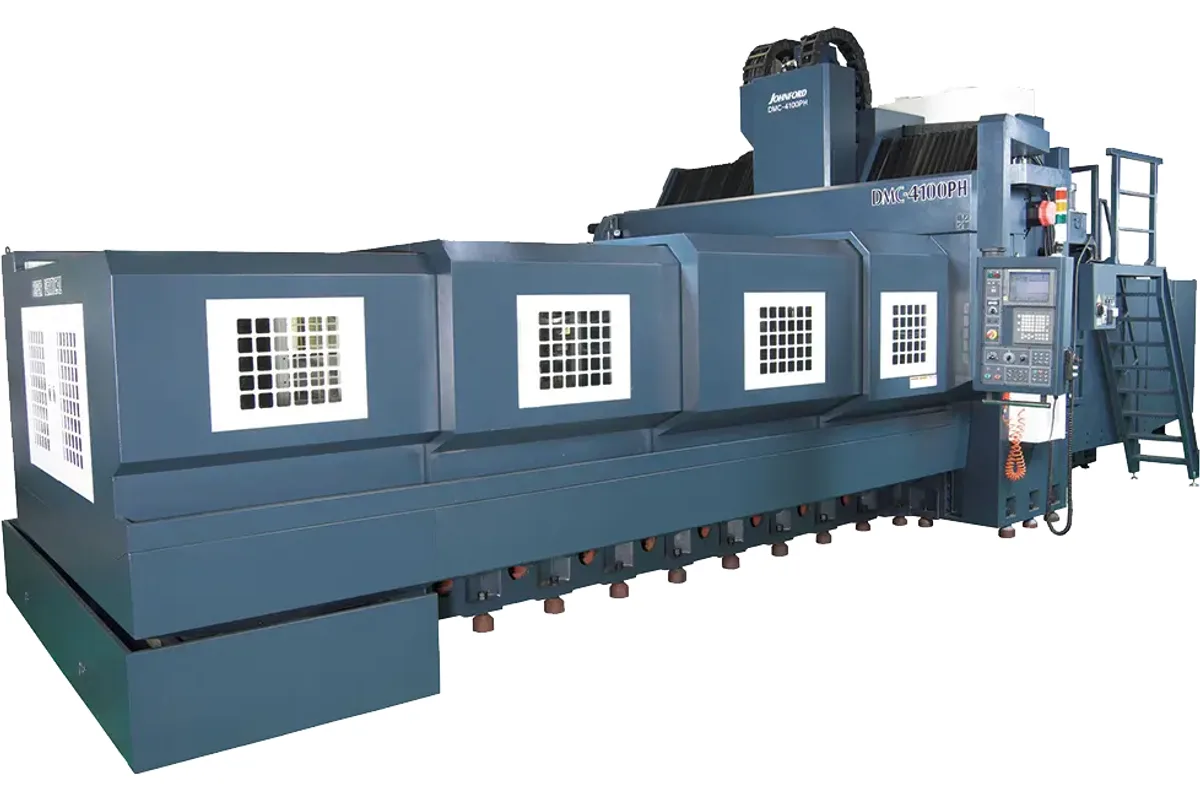

Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
distance between columns
x axis travel
How much does the Johnford DMC-3100PH cost?
Price estimate
We do not have a price for the Johnford DMC-3100PH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Johnford DMC-3100PH is the No.50 version of the wide DMC-P frame at its shorter length: 3,100 mm (122 in) in X, 2,300 mm in Y and 800 mm (31.5 in) in Z, with 2,400 mm (94.4 in) between columns. It is a machine for parts that are both wide and hard to cut.
Stamping die shoes are the obvious example. They are thick steel or cast plates, often two metres across, that need deep pockets, large bores for guide posts and long flat faces. The spindle here is BT-50 / CAT-50 on a 90 mm (3.5 in) bearing with a 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear drive. It holds a Ø200 mm (Ø7.8 in) face mill when the neighbouring pockets are empty, and tools up to 15 kg (33 lb).
A caution on weight, though. The 3,200 x 2,050 mm (126 x 80.7 in) table is rated 10,000 kg (22,000 lb). Thick die plates that cover the table approach that figure, and a casting with its fixture can pass it. Weigh the heaviest job against the rating, and against the 13,000 kg (28,600 lb) of the DMC-4100PH.
The maker's table has a slip for this model: beside the 2,300 mm Y travel it prints an inch figure that does not convert, so this page gives the metric value only. Other figures match those of the 40-taper DMC-3100P, including the 35,000 kg (77,000 lb) weight and the 8,775 x 5,580 x 3,960 mm (345.5 x 220 x 156 in) footprint.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 2,400 mm (94.4 in) |
| Table Size | 3,200 x 2,050 mm (126 x 80.7 in) |
| X Axis Travel | 3,100 mm (122 in) |
| Y Axis Travel | 2,300 mm |
| Z Axis Travel | 800 mm (31.5 in) |
| Distance Spindle Nose to Table | 150~950 mm (5.9~37.4 in) |
| Spindle Taper | BT-50 / CAT-50; HSK A100(Opt.) |
| Spindle Bearing Diameter | 90 mm (3.5 in) |
| Spindle Speed | 6,000; 10,000 rpm |
| Spindle Motor Power | 22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear; 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) Built-in |
| Rapid Traverse Xyz | 12 / 12 / 12 m/min (472 / 472 / 472 ipm) |
| Cutting Feed Rate | 1~10,000 mm/min (0.04~394 ipm) |
| Max Tool Diameter Adjacent Pockets | Ø125 mm (Ø5 in) |
| Tool Capacity | Arm type 24 ; 32 / 40 (Opt.) |
| Max Tool Diameter (full magazine) | Ø200 mm (Ø7.8 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Selection | Bi-direction random type, Shortest path |
| Max Table Load | 10,000 kg (22,000 lb) |
| Machine Dimensions | 8,775 x 5,580 x 3,960 mm (345.5 x 220 x 156 in) |
| Machine Weight | 35,000 kg (77,000 lb) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 50-taper spindle with 22 / 26 kW (29.5 / 34.9 hp) on a frame 2,400 mm (94.4 in) wide between columns
- Y travel of 2,300 mm over a table 2,050 mm (80.7 in) wide
- Face mills up to Ø200 mm (Ø7.8 in) and tools up to 400 mm (15.7 in) long
- Built-in 10,000 rpm spindles of 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) as options
Limitations
- 10,000 kg (22,000 lb) table load for a table this wide
- 6,000 rpm standard speed with the geared drive
- Rapids of 12 / 12 / 12 m/min (472 / 472 / 472 ipm)
- The maker's inch figure for Y travel is wrong on its page, so only the metric value can be relied on
Best For
Frequently Asked Questions
01
X 3,100 mm (122 in), Y 2,300 mm, Z 800 mm (31.5 in). The distance from spindle nose to table is 150~950 mm (5.9~37.4 in) and the columns are 2,400 mm (94.4 in) apart.
02
The spindle and tool changer limits. The DMC-3100P is BT-40 / CAT-40 with a 7.5 / 11 kW (10.1 / 14.8 hp) geared drive and 10 kg (22 lb) tools. The DMC-3100PH is BT-50 / CAT-50 with 22 / 26 kW (29.5 / 34.9 hp) and 15 kg (33 lb) tools. Frame, table and weight are shared.
03
Fanuc 0i-MF PLUS with a 10.4 in LCD and Manual Guide i is standard. Options include Siemens SINUMERIK 828D, Fanuc 31i-MB PLUS or Siemens SINUMERIK ONE, linear scales on X, Y or Z, thermal compensation on the spindle and four kinds of milling head.
04
The arm type changer holds 24 tools as standard, with 32 or 40 as options in the table and a 60-tool ATC on the accessory list. Tool selection is bi-directional random by the shortest path.
