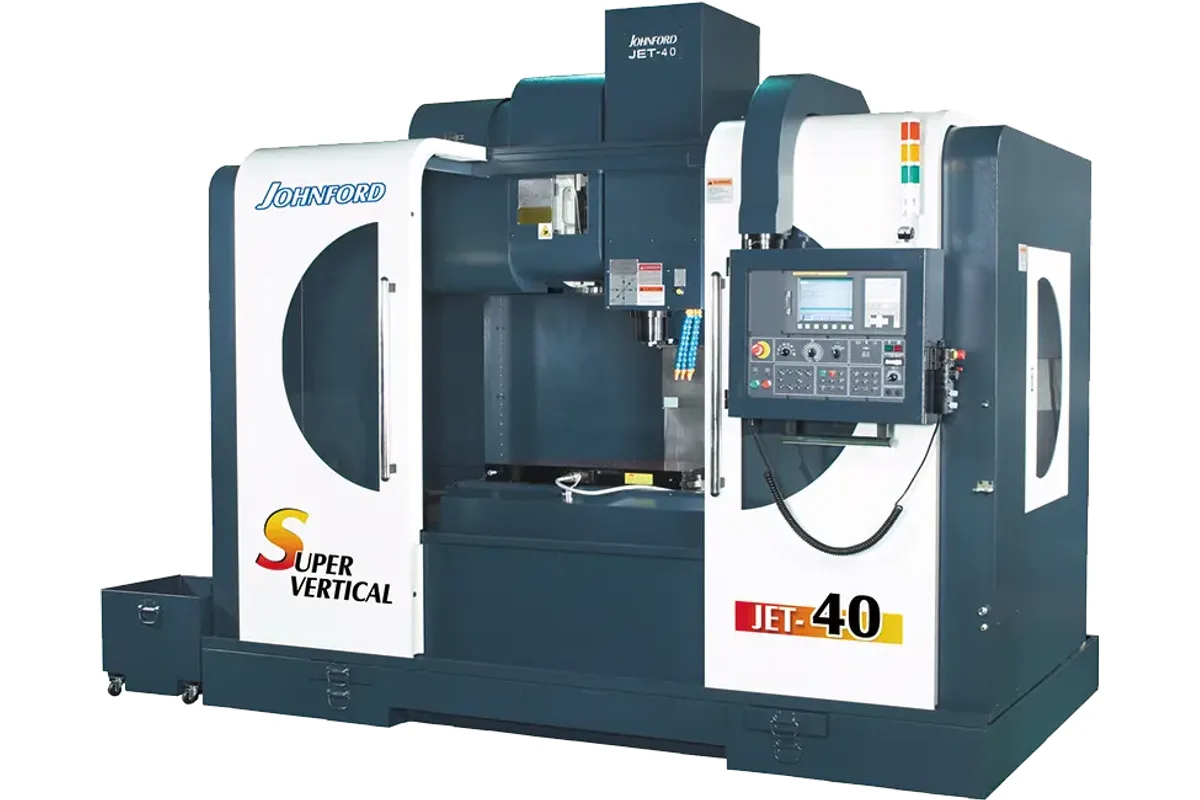

Johnford JET-40
Image: johnford.com.tw, Johnford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Johnford JET-40 cost?
Price estimate
We do not have a price for the Johnford JET-40 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 1,050 mm (41.3 in) of X travel, the Johnford JET-40 is the long-table member of the two-model JET-32/40 pair. It keeps the pair's 40 m/min (1,575 ipm) X and Y rapids and puts them over a 1,200 x 500 mm (47.2 x 19.7 in) table.
Why does the extra length matter on a fast-rapid machine? Because the time lost travelling between features grows with the distance between them. On a 1,200 mm table loaded with a row of vises or a long fixture, the spindle spends a real share of the cycle crossing from one station to the next, and a 40 m/min axis recovers more of that than it would on a short table. The Z axis is slower at 20 m/min (787 ipm).
Cutting data is unchanged from the JET-32. Standard spindle speed is 60~8,000 rpm with 5.5 / 7.5 kW (7.4 / 10.1 hp), and the quoted S45C capacity is 120 cc/min milling, Ø30 mm (Ø1.2 in) drilling and M30 x P3.5 tapping. Taper is BT-40, CAT-40 or BBT-40, with HSK A63 optional. Y travel is 500 mm (19.7 in) and Z is 610 mm (24 in).
The longer casting brings the weight to 6,000 kg (13,200 lb) and the footprint to 3,200 x 2,250 x 3,110 mm (126 x 88.6 x 122.4 in). Table load stays at 400 kg (880 lb). Options listed for the pair include CTS at 20 bar or 70 bar with a cartridge type filtration system, linear scales on X, Y and Z, a 4th-axis programmable rotary table and a Siemens SINUMERIK 828D control with a 10.4 in LCD.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,200 x 500 mm (47.2 x 19.7 in) |
| X Axis Travel | 1,050 mm (41.3 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 610 mm (24 in) |
| Distance Spindle Nose to Table | 150~760 mm (5.9~29.9 in) |
| Distance Spindle to Column | 550 mm (21.7 in) |
| Spindle Taper | BT-40 / CAT-40 / BBT-40, HSK A63 (Opt.) |
| Spindle Speed | 60~8,000 rpm |
| Spindle Motor Power | 5.5 / 7.5 kW (7.4 / 10.1 hp) P motor (Std.); 5.5 / 7.5 kW (7.4 / 10.1 hp) Hi-Lo Gear (Opt.) |
| Rapid Traverse Xyz | 40 / 40 / 20 m/min (1,575 / 1,575 / 787 ipm) |
| Cutting Feed Rate | 1~12,000 mm/min (0.04~472 ipm) |
| Tool Selection | Bi-direction random type, Shortest path |
| Tool Capacity | Armless 24; Arm type 24 / 32 (Opt.) |
| Max Tool Diameter Adjacent Pockets | 75 mm (3 in) |
| Max Tool Diameter (full magazine) | 100 mm (4 in) |
| Max Tool Length | 320 mm (12.6 in) |
| Max Tool Weight | 10 kg (22 lb) |
| Max Table Load | 400 kg (880 lb) |
| Machine Weight | 6,000 kg (13,200 lb) |
| Machine Dimensions | 3,200 x 2,250 x 3,110 mm (126 x 88.6 x 122.4 in) |
| Ball Screw Diameter Xyz | Ø40, Ø40, Ø40 |
| Cutting Capacity Milling S45c | 120 cc/min |
| Cutting Capacity Drilling S45c | Ø30 mm (Ø1.2 in) |
| Cutting Capacity Tapping S45c | M30 x P3.5 |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,050 mm (41.3 in) of X travel combined with 40 m/min (1,575 ipm) rapids on X and Y
- Room for multi-vise setups on a 1,200 x 500 mm (47.2 x 19.7 in) table
- Choice of BT-40, CAT-40 or BBT-40 taper, with HSK A63 as an option
- Renishaw tool probes (TS-27R touch or NC4 non-contact) and workpiece probes are factory options
Limitations
- 400 kg (880 lb) table load is the same as on the shorter JET-32 despite the longer table
- Base spindle is 60~8,000 rpm; the 10,000 rpm and faster spindles are options
- Only 500 mm (19.7 in) of Y travel behind a 1,200 mm long table
- Height of 3,110 mm (122.4 in) needs checking against low ceilings and doorways
Best For
Frequently Asked Questions
01
The table working surface is 1,200 x 500 mm (47.2 x 19.7 in). X travel is 1,050 mm (41.3 in), Y travel 500 mm (19.7 in) and Z travel 610 mm (24 in), with 150~760 mm (5.9~29.9 in) between spindle nose and table.
02
Machine weight is 6,000 kg (13,200 lb). The listed machine dimensions are 3,200 x 2,250 x 3,110 mm (126 x 88.6 x 122.4 in), length by width by height.
03
Not as standard. An external coolant supply system with spindle nozzles and chip flushing coolant are standard. CTS at 20 bar or 70 bar with a cartridge type filtration system is on the optional accessory list, along with a paper filtration system.
04
Johnford states the cutting capacity in S45C as 120 cc/min for milling, Ø30 mm (Ø1.2 in) for drilling and M30 x P3.5 for tapping, with the standard 5.5 / 7.5 kW (7.4 / 10.1 hp) spindle motor.
