Brother Industries Vertical Machining Centers (VMC)

Brother SPEEDIO S1000X1

Est. $130,000 - $180,000 Discontinued Specs verified 2026-10-03 · machinetool.global.brother Updated 2026-10-03

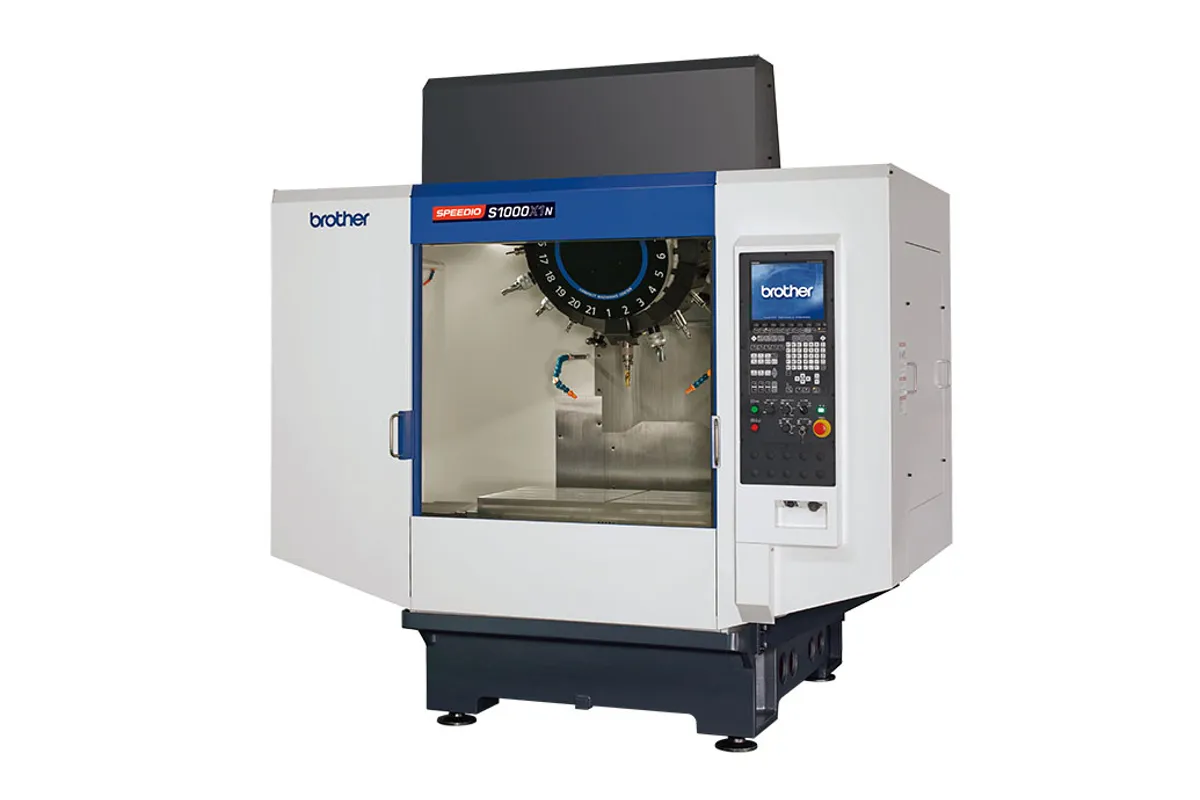

Image: machinetool.global.brother, Brother Industries

Key Specifications

X Travel

1,000 mm (39.4 in)

Y Travel

500 mm (19.7 in)

Z Travel

300 mm (11.8 in)

Max Spindle

10,000 rpm (16,000 rpm optional)

Spindle Taper

BT30 (7/24 taper No. 30)

Tool Capacity

14/21 tools

How much does the Brother SPEEDIO S1000X1 cost?

Estimated price range

Est.$130,000 - $180,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Brother Industries. Configuration moves it a long way.

Overview

The Brother SPEEDIO S1000X1 is the long-table member of Brother's X1-generation BT30 machines: 1,000 x 500 x 300 mm (39.4 x 19.7 x 11.8 in) of travel, a 1,100 x 500 mm (43.3 x 19.7 in) table and a 10,000 rpm spindle under the CNC-C00 control. Brother has discontinued it, so it is now a used-machine purchase.

The extra length is the point of the model. Next to the Speedio S700X1, with 700 mm (27.6 in) of X on an 800 x 400 mm (31.5 x 15.7 in) table, the S1000X1 has room for two vises or fixtures side by side, or one long part such as a rail or manifold. Table load is 300 kg (661.3 lb) as standard and 400 kg (881.8 lb) with the option, which, spread across a longer table, still points to aluminium fixtures and light steel work.

Most of the spindle end matches the smaller X1 machine. The spindle runs to 10,000 rpm, with a 16,000 rpm option and a high-torque 10,000 rpm option; unlike the Speedio S700X1, no 27,000 rpm version appears in this table. Rating is 10.1 kW for 10 minutes and 6.7 kW continuous, tapping goes to 6,000 rpm, and Z stays at 300 mm (11.8 in) with 180 - 480 mm (7.1 - 18.9 in) from spindle nose to table. The magazine holds 14 or 21 MAS-BT30 tools of up to 110 mm (4.3 in), 250 mm (9.8 in) and 3.0 kg (6.6 lb), changing tool to tool in 0.8 sec, chip to chip in 1.4 sec and cut to cut in 1.2 sec.

The machine is 2,410 x 2,442 mm (94.9 x 96.1 in) in plan, 2,532 mm (99.7 in) tall and 3,300 kg (7,275 lb). It runs on AC 200V and needs 45 L/min of air at 0.4 to 0.6 MPa. The Speedio W1000Xd1 keeps the same envelope but moves to the CNC-D00 control and 7.0 kW continuous.

Full Specifications

Parameter	Value
CNC Control	Brother CNC-C00
X-Axis Travel	1,000 mm (39.4 in)
Y-Axis Travel	500 mm (19.7 in)
Z-Axis Travel	300 mm (11.8 in)
Spindle Nose to Table	180 - 480 mm (7.1 - 18.9 in)
Table Size	1,100 x 500 mm (43.3 x 19.7 in)
Max Table Load	300 kg (661.3 lb); 400 kg (881.8 lb) with option
Max Spindle Speed	10,000 rpm (16,000 rpm optional)
Tapping Speed Max	6,000 rpm
Spindle Taper	BT30 (7/24 taper No. 30)
Dual Contact Spindle	Optional
Coolant Through Spindle	Optional
Rapid Traverse Rate	50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm)
Max Cutting Feedrate	30,000 mm/min (1,181 ipm)
Tool Shank	MAS-BT30
Pull Stud	MAS-P30T-2
Tool Capacity	14/21 tools
Max Tool Length	250 mm (9.8 in)
Max Tool Diameter (full magazine)	110 mm (4.3 in)
Max Tool Weight	3.0 kg (6.6 lb) per tool
Tool Selection	Random shortcut method
Tool Change Time	Tool To Tool : 0.8sec. Chip To Chip : 1.4sec. Cut To Cut : 1.2sec.
Spindle Motor Power	10.1 kW (10 min) / 6.7 kW continuous
Axis Feed Motor	X,Y : 1.0 Z : 2.0 kW
Power Supply	AC 200V ±10%, 50/60Hz ±1Hz
Power Capacity	10,000min-1 specifications : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 16,000min-1 specifications(Optional) : 9.5 kVA
Air Pressure	0.4 - 0.6 MPa
Air Flow	45 L/min
Machine Height	2,532 mm (99.7 in)
Floor Space Required	2,410 x 2,442 mm (94.9 x 96.1 in)
Machine Weight	3,300 kg (7,275 lb)
Positioning Accuracy	0.006 - 0.020 mm (0.00024 - 0.00079 in)
Repeatability	< 0.004 mm (0.00016 in)

Specifications sourced from machinetool.global.brother — verified 2026-10-03

Strengths & Limitations

Strengths

1,000 mm (39.4 in) of X and a 1,100 x 500 mm (43.3 x 19.7 in) table for multiple fixtures or long parts
Table load of 300 kg (661.3 lb), or 400 kg (881.8 lb) with the option
Rapids of 50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm) across the full 1,000 mm stroke
Tool changes of 0.8 sec tool to tool and 1.4 sec chip to chip
Positioning accuracy of 0.006 - 0.020 mm (0.00024 - 0.00079 in), repeatability under 0.004 mm (0.00016 in)

Limitations

Discontinued by Brother; check the fitted spindle and options on any used machine
Only 300 mm (11.8 in) of Z, the same as the much smaller Speedio S700X1
Spindle options stop at 16,000 rpm, and continuous output is 6.7 kW
The magazine holds at most 21 tools, a limit when several fixtures each need their own set
A 2,410 x 2,442 mm (94.9 x 96.1 in) footprint and 3,300 kg (7,275 lb) need more floor than the S700 machines

Best For

Multi-fixture setups along a 1,100 mm (43.3 in) table Long aluminium parts such as rails and plates Drilling and tapping of several parts per cycle Used-machine buyers wanting long X on a BT30 spindle

Frequently Asked Questions

01 Is the SPEEDIO S1000X1 still made?

No, Brother has discontinued it. On a used S1000X1, check whether the spindle is the standard 10,000 rpm, the 16,000 rpm option or the high-torque 10,000 rpm option, whether the magazine holds 14 or 21 tools, and whether the dual-contact spindle and through-spindle coolant options were fitted.

02 How does the S1000X1 compare with the Speedio S700X1?

The Speedio S700X1 has 700 x 400 x 300 mm (27.6 x 15.7 x 11.8 in) of travel, an 800 x 400 mm (31.5 x 15.7 in) table and weighs 2,400 kg (5,291 lb). The S1000X1 has 1,000 x 500 x 300 mm (39.4 x 19.7 x 11.8 in), a 1,100 x 500 mm (43.3 x 19.7 in) table and weighs 3,300 kg (7,275 lb). Spindle rating and tool magazine sizes are the same.

03 How does the S1000X1 differ from the Speedio W1000Xd1?

The Speedio W1000Xd1 has the same 1,000 x 500 x 300 mm (39.4 x 19.7 x 11.8 in) travels and table but uses the CNC-D00 control, lists 7.0 kW continuous spindle output against 6.7 kW, and weighs 3,350 kg (7,386 lb). It is also discontinued.

04 What does the S1000X1 need for installation?

An AC 200V supply; power capacity is 9.5 kVA for the 10,000 and 16,000 rpm spindles and 10.4 kVA for the high-torque version. Air demand is 45 L/min at 0.4 to 0.6 MPa. Allow 2,410 x 2,442 mm (94.9 x 96.1 in) of floor and 2,532 mm (99.7 in) of height for a 3,300 kg (7,275 lb) machine.
