Johnford DMC-4100PH

Q: How much does the Johnford DMC-4100PH cost?

The price estimate for the Johnford DMC-4100PH is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/johnford-dmc-4100ph#price; the request is passed to Johnford or an authorised dealer.

Specs verified 2026-10-04 · johnford.com.tw Updated 2026-10-04

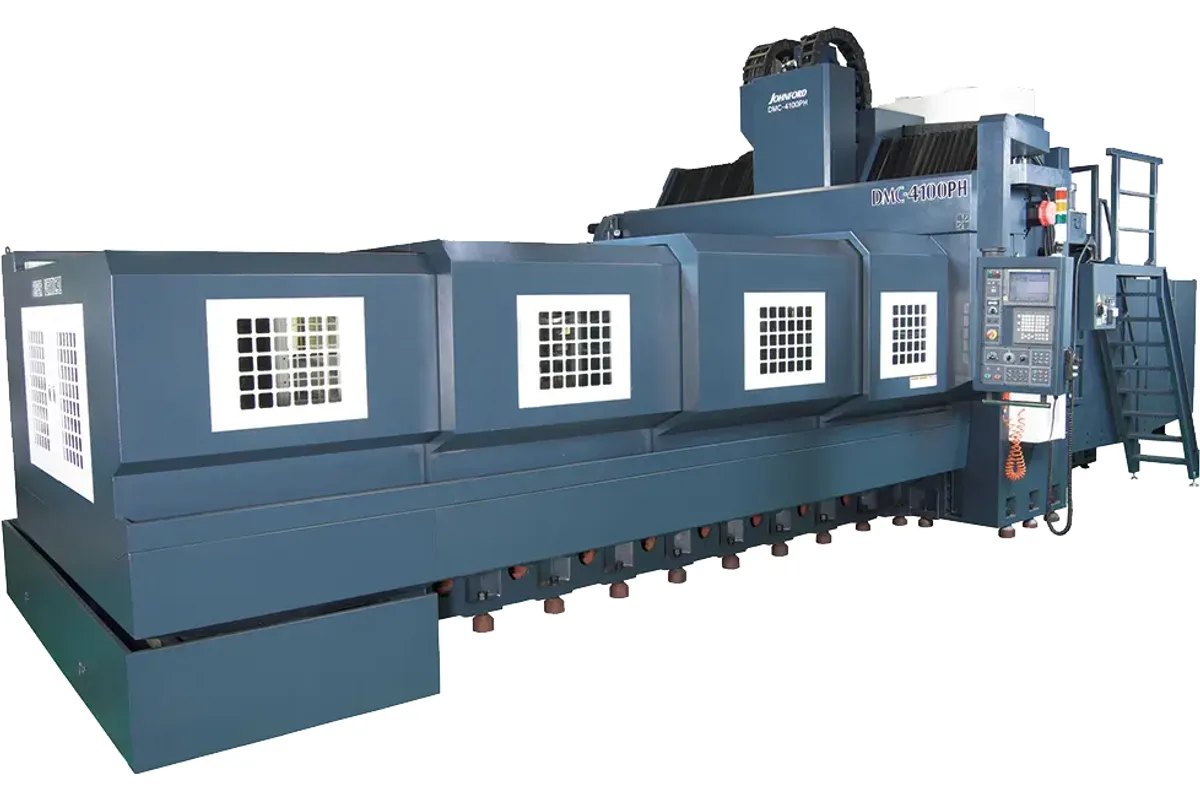

Image: johnford.com.tw, Johnford

Key Specifications

Spindle Taper

BT-50 / CAT-50; HSK A100(Opt.)

Tool Capacity

Arm type 24 ; 32 / 40 (Opt.)

Table Size

4,200 x 2,050 mm (165.3 x 80.7 in)

Spindle Power

22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear; 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) Built-in

distance between columns

2,400 mm (94.4 in)

x axis travel

4,100 mm (161.4 in)

How much does the Johnford DMC-4100PH cost?

Price estimate

Uncertain

We do not have a price for the Johnford DMC-4100PH that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Johnford DMC-4100PH is the largest model of the Medium DMC-P group: a No.50 double column machining center with 4,100 mm (161.4 in) of X, 2,300 mm of Y and 800 mm (31.5 in) of Z, weighing 42,200 kg (92,840 lb).

Its place in the range is easiest to see from above and below. Below it, the DMC-4100SH has the same X travel and spindle but 1,796 mm (70.7 in) between columns and a 10,000 kg (22,000 lb) table. Above it, the DMC-4000x2800x800 opens to 2,800 mm (110.2 in) between columns and carries 20,000 kg (44,000 lb), at a machine weight of 59,200 kg (130,240 lb). The 4100PH sits between: 2,400 mm (94.4 in) between columns and 13,000 kg (28,600 lb).

For that envelope the cutting hardware is the standard 50-taper set. BT-50 / CAT-50, a 90 mm (3.5 in) spindle bearing, 22 / 26 kW (29.5 / 34.9 hp) through a Hi Lo Gear, 6,000 rpm. The tool changer takes 24 tools, each up to 15 kg (33 lb) and 400 mm (15.7 in) long. Wind turbine and construction machinery frames, large gearbox housings split on the table, injection mould bases for bumper and dashboard tools: these are the part families the figures fit.

Note that the maker prints an inch value beside the Y travel that does not convert from 2,300 mm, so only the metric figure is given here. The machine is 11,290 mm (444.5 in) long, 5,580 mm (220 in) wide and 3,960 mm (156 in) high.

Full Specifications

Parameter	Value
Distance Between Columns	2,400 mm (94.4 in)
Table Size	4,200 x 2,050 mm (165.3 x 80.7 in)
X Axis Travel	4,100 mm (161.4 in)
Y Axis Travel	2,300 mm
Z Axis Travel	800 mm (31.5 in)
Distance Spindle Nose to Table	150~950 mm (5.9~37.4 in)
Spindle Taper	BT-50 / CAT-50; HSK A100(Opt.)
Spindle Bearing Diameter	90 mm (3.5 in)
Spindle Speed	6,000; 10,000 rpm
Spindle Motor Power	22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear; 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) Built-in
Rapid Traverse Xyz	12 / 12 / 12 m/min (472 / 472 / 472 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Max Tool Diameter Adjacent Pockets	Ø125 mm (Ø5 in)
Tool Capacity	Arm type 24 ; 32 / 40 (Opt.)
Max Tool Diameter (full magazine)	Ø200 mm (Ø7.8 in)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	15 kg (33 lb)
Tool Selection	Bi-direction random type, Shortest path
Max Table Load	13,000 kg (28,600 lb)
Machine Dimensions	11,290 x 5,580 x 3,960 mm (444.5 x 220 x 156 in)
Machine Weight	42,200 kg (92,840 lb)

Specifications sourced from johnford.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

4,100 x 2,300 mm of X and Y travel under a 50-taper spindle
13,000 kg (28,600 lb) table load on a 4,200 x 2,050 mm (165.3 x 80.7 in) table
22 / 26 kW (29.5 / 34.9 hp) Hi Lo Gear spindle drive
42,200 kg (92,840 lb) of machine weight
5-Face, universal, orthogonal and NC 2-Axis heads offered as options

Limitations

Z travel is 800 mm (31.5 in); the DMC-4000x2800-5F offers 1,066 mm (42 in)
6,000 rpm standard, 10,000 rpm only with a built-in spindle
24-tool changer as standard for work that often needs more tools
5,580 mm (220 in) wide and 11,290 mm (444.5 in) long

Best For

Large mould bases for automotive interior and exterior tools Split gearbox housings and heavy equipment frames Wide steel plates up to 13,000 kg (28,600 lb)

Frequently Asked Questions

01 What is the difference between the DMC-4100PH and the DMC-4100SH?

Width and load. The DMC-4100SH has 1,778 mm (70 in) of Y travel, a 4,200 x 1,500 mm (165.4 x 59 in) table and a 10,000 kg (22,000 lb) rating. The DMC-4100PH has 2,300 mm of Y, a table 2,050 mm (80.7 in) wide and a 13,000 kg (28,600 lb) rating. The spindles are the same.

02 How heavy a workpiece can the DMC-4100PH carry?

13,000 kg (28,600 lb), including fixtures. The next step up in the range, the DMC-4000x2800x800, is rated 20,000 kg (44,000 lb).

03 Which spindle options does the DMC-4100PH have?

The standard drive is 22 / 26 kW (29.5 / 34.9 hp) with a Hi Lo Gear at 6,000 rpm. Built-in spindles of 26 / 31 kW (34.9 / 41.6 hp) or 31 / 40 kW (41.6 / 53.6 hp) run at 10,000 rpm, with HSK A100 as the optional taper.

04 What tool sizes can the DMC-4100PH changer handle?

Ø125 mm (Ø5 in) with adjacent pockets occupied and Ø200 mm (Ø7.8 in) with them empty, up to 400 mm (15.7 in) long and 15 kg (33 lb). Selection is bi-directional random, shortest path.
