HNK HPM-30H (30x60)
Key Specifications
Max Spindle
Spindle Taper
Table Size
Spindle Power
distance between columns
distance spindle nose to table
How much does the HNK HPM-30H (30x60) cost?
Price estimate
We do not have a price for the HNK HPM-30H (30x60) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With the HNK HPM-30H (30x60) the die and mold series changes frame. The ram grows to 400 x 400 mm (15.7 x 15.7 in), the crossrail stroke to 1,500 mm (59.1 in) and the distance under the spindle to 2,000 mm (78.7 in), with 2,350 mm (92.5 in) in braces.
The table is 3,000 x 6,000 mm (118.1 x 236.2 in). Its columns stand 4,000 mm (157.5 in) apart, a clear metre wider than the table, and Y travel reaches 5,000 mm (196.9 in). Table load is 25,000 kg (55,115 lb), and X travel 6,250 mm (246.1 in).
Why does the taller frame matter in die work? Large draw dies are deep, and they are often machined standing on parallels or on a tilting fixture. Two metres or more under the spindle allows that without removing the fixture between roughing and finishing set-ups. Fanuc 31i-B and Siemens 840D are the listed controls.
The spindle itself is unchanged from the small sizes: Ø100 mm (3.9 in), ISO No.50, 6,000 rpm with 8,000 rpm in braces, 22/25 kW (29.5/33.5 hp), cont/30min. Ram travel stays at 800 mm (31.5 in).
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 4,000 mm (157.5 in) |
| Distance Spindle Nose to Table | 2,000 mm (78.7 in) {2,350 mm (92.5 in)} |
| X Axis Travel | 6,250 mm (246.1 in) |
| Y Axis Travel | 5,000 mm (196.9 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 1,500 mm (59.1 in) |
| Table Size | 3,000 x 6,000 mm (118.1 x 236.2 in) |
| Max Table Load | 25,000 kg (55,115 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø100 mm (3.9 in) |
| Ram Size | 400 x 400 mm (15.7 x 15.7 in) |
| Max Spindle Speed | 6,000 rpm {8,000 rpm} |
| Spindle Motor Power | 22/25 kW (29.5/33.5 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 400 x 400 mm (15.7 x 15.7 in) ram
- 1,500 mm (59.1 in) of crossrail travel
- 2,000 mm (78.7 in) under the spindle, 2,350 mm (92.5 in) in braces
- 4,000 mm (157.5 in) between columns with 5,000 mm (196.9 in) of Y
Limitations
- Spindle and 22/25 kW motor are no larger than on the HPM-15H
- Ram travel remains 800 mm (31.5 in)
- 25,000 kg (55,115 lb) limits very large cast die sets
Best For
Frequently Asked Questions
01
The HPM-25H has a 380 x 380 mm (15.0 x 15.0 in) ram, 1,200 mm (47.2 in) of W and 1,800 mm (70.9 in) under the spindle. The HPM-30H (30x60) has a 400 x 400 mm ram, 1,500 mm of W and 2,000 mm under the spindle, on a table 3,000 mm wide.
02
The effective distance between columns is 4,000 mm (157.5 in). The table is 3,000 mm (118.1 in) wide, so a die may overhang the table slightly and still pass, subject to guarding.
03
25,000 kg (55,115 lb). The longer HPM-30H (30x80) carries the same, and the wider HPM-35H sizes are rated at 30,000 kg (66,138 lb).
04
6,000 rpm, with 8,000 rpm in braces. The speed row is starred, meaning HNK will change it to the customer's requirements. Spindle taper is ISO No.50.
More from HNK
Other Vertical Machining Centers (VMC)
KAAST V-Mill 810

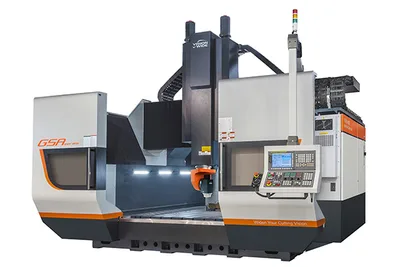

Vision Wide GSA-2227
