Hwacheon Vertical Machining Centers (VMC)

Hwacheon SIRIUS-1750

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

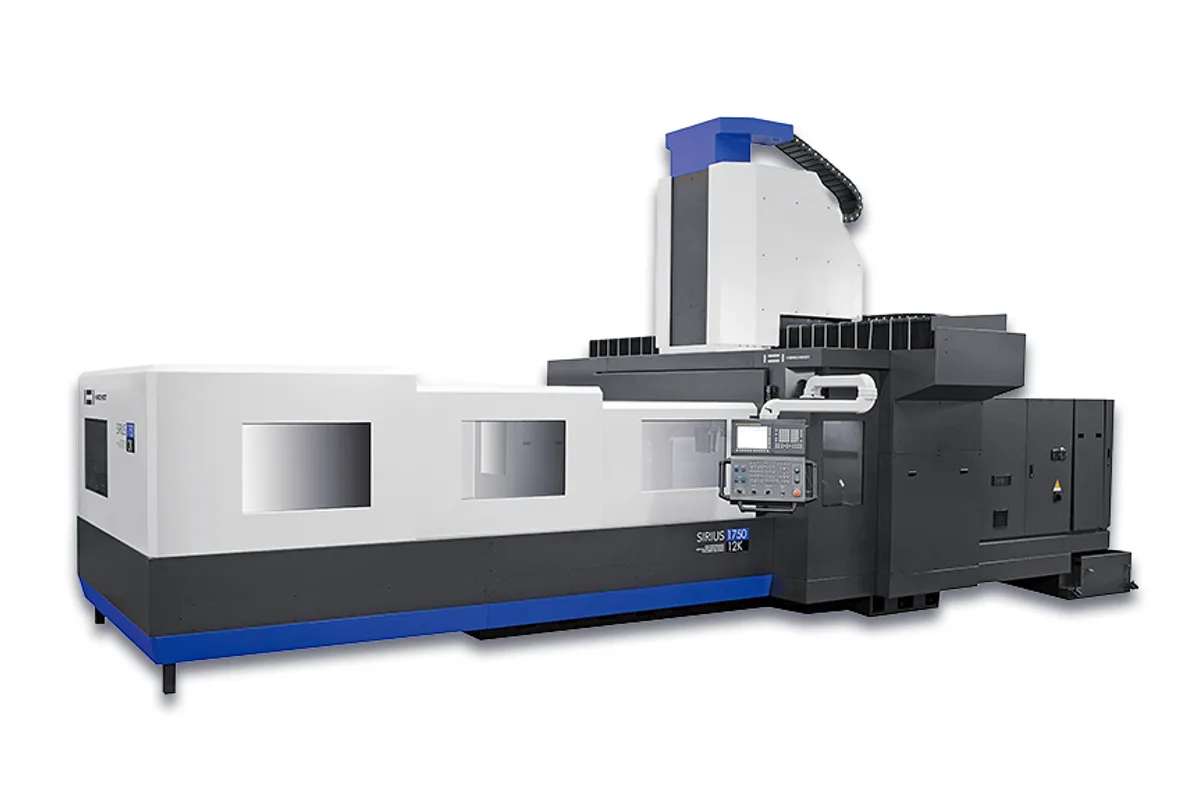

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

12,000 / 15,000 rpm

Spindle Taper

BBT-50

Tool Capacity

40 (opt.: 60)

Table Size

3,200 x 1,750 mm (126.0 x 68.9 in) [L version: 4,200 x 1,750 mm (165.4 x 68.9 in)]

Spindle Power

30 / 25 kW (40.2 / 33.5 hp)

x axis travel

3,000 mm (118.1 in) [L version: 4,000 mm (157.5 in)]

How much does the Hwacheon SIRIUS-1750 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon SIRIUS-1750 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon SIRIUS-1750 is the largest machine of the SIRIUS range, with 1,750 mm (68.9 in) of Y and two bed lengths: 3,000 mm (118.1 in) of X on the standard machine and 4,000 mm (157.5 in) on the L version. Z is 800 mm (31.5 in). The table is 3,200 x 1,750 mm (126.0 x 68.9 in), or 4,200 x 1,750 mm (165.4 x 68.9 in) on the L, and is rated for 10,000 kg (22,046 lb), or 15,000 kg (33,069 lb) on the L.

Where the SIRIUS-1350 offers 8,000 / 12,000 rpm, the SIRIUS-1750 is listed with 12,000 and 15,000 rpm spindles. Both are built-in BBT-50 units rated 30 / 25 kW (40.2 / 33.5 hp), with oil-jet bearings on a Ø100 mm (Ø3.9 in) bore. The higher speed range suits finishing large moulds and aluminium structures with smaller cutters, but the power rating is no higher than on the SIRIUS-850, so this is not a heavy-roughing spindle.

Part height is set by the version. The standard machine has 250 ~ 1,000 mm (9.8 ~ 39.4 in) from spindle nose to table and a 2,000 x 850 mm (78.7 x 33.5 in) workpiece passage. The Gap version moves that to 600 ~ 1,350 mm (23.6 ~ 53.1 in) and 2,000 x 1,200 mm (78.7 x 47.2 in), and the machine grows from 5,020 mm (197.6 in) to 5,370 mm (211.4 in) tall.

Rapids are 16 m/min (630 ipm) on all axes of the standard machine; the L version drops X to 10 m/min (394 ipm). The magazine holds 40 tools, 60 optional, up to 400 mm (15.7 in) long, 20 kg (44 lb) and Ø120 / Ø200 mm (Ø4.7 / Ø7.9 in) with / without adjacent tools. Eight 22 x 200 mm (0.87 x 7.87 in) T-slots cross the table.

Weight runs from 31,000 kg (68,343 lb) for the standard machine to 37,500 kg (82,673 lb) for the L version with the 60-tool magazine, and the L needs 10,740 x 5,510 mm (422.8 x 216.9 in) of floor. Power is 75 kVA, air 0.5 ~ 0.7 MPa x 1,870 NL/min, coolant 850 L (225 US gal), control Fanuc 31i-B.

Full Specifications

Parameter	Value
X Axis Travel	3,000 mm (118.1 in) [L version: 4,000 mm (157.5 in)]
Y Axis Travel	1,750 mm (68.9 in)
Z Axis Travel	800 mm (31.5 in)
Distance Spindle Nose to Table	250 ~ 1,000 mm (9.8 ~ 39.4 in) [Gap version: 600 ~ 1,350 mm (23.6 ~ 53.1 in)]
Max Workpiece Passage W X H	2,000 x 850 mm (78.7 x 33.5 in) [Gap version: 2,000 x 1,200 mm (78.7 x 47.2 in)]
Table Size	3,200 x 1,750 mm (126.0 x 68.9 in) [L version: 4,200 x 1,750 mm (165.4 x 68.9 in)]
Max Table Load	10,000 kg (22,046 lb) [L version: 15,000 kg (33,069 lb)]
T-Slots	22 x 200 mm (0.87 x 7.87 in), 8 slots (width x pitch, count)
Max Spindle Speed	12,000 / 15,000 rpm
Spindle Motor Power	30 / 25 kW (40.2 / 33.5 hp)
Spindle Taper	BBT-50
Spindle Bearing Bore	Ø100 mm (Ø3.9 in)
Spindle Drive	Built-in motor
Spindle Bearing Lubrication	Oil-jet
Spindle Cooling	Jacket cooling (oil cooler)
Rapid Traverse Xyz	16 / 16 / 16 m/min (630 / 630 / 630 ipm) [L version: 10 / 16 / 16 m/min (394 / 630 / 630 ipm)]
Tool Shank	BBT-50 (opt.: CAT-50)
Pull Stud	BT-50 (90˚)
Tool Capacity	40 (opt.: 60)
Max Tool Diameter (full magazine)	Ø120 / Ø200 mm (Ø4.7 / Ø7.9 in) (with / without adjacent tools)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	20 kg (44 lb)
Tool Selection	Memory Random
Power Requirement	75 kVA
Air Supply	0.5 ~ 0.7 MPa x 1,870 NL/min
Coolant Tank Capacity	850 L (225 US gal)
Machine Height	5,020 mm (197.6 in) [Gap version: 5,370 mm (211.4 in)]
Floor Space	8,840 x 5,510 mm (348.0 x 216.9 in) [L version: 10,740 x 5,510 mm (422.8 x 216.9 in)]
Machine Weight	31,000 kg (68,343 lb) [L version: 35,000 kg (77,161 lb)] [60-tool magazine: 33,500 kg (73,854 lb)] [L version with 60-tool magazine: 37,500 kg (82,673 lb)]
CNC Control	Fanuc 31i-B

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

1,750 mm (68.9 in) of Y and up to 4,000 mm (157.5 in) of X on the L version
Table load of 10,000 kg (22,046 lb), or 15,000 kg (33,069 lb) on the L version
12,000 and 15,000 rpm built-in BBT-50 spindles, faster than the 8,000 / 12,000 rpm of the SIRIUS-1350
Gap version gives a 2,000 x 1,200 mm (78.7 x 47.2 in) workpiece passage for tall parts
40-tool magazine with a 60-tool option, tools up to 400 mm (15.7 in) long

Limitations

Spindle rating is 30 / 25 kW (40.2 / 33.5 hp), with no high-torque option listed as on the SIRIUS-1350
The L version rapids X at only 10 m/min (394 ipm)
Standard Z is 800 mm (31.5 in) and the standard passage is 2,000 x 850 mm (78.7 x 33.5 in), limiting tall parts unless the Gap version is chosen
31,000 kg (68,343 lb) to 37,500 kg (82,673 lb) and up to 5,370 mm (211.4 in) tall, a major foundation and building job

Best For

Large plates and mould bases up to 1,750 mm (68.9 in) wide Long structures on the 4,200 x 1,750 mm (165.4 x 68.9 in) L table Finishing with small cutters at 12,000 or 15,000 rpm Workpieces up to 15,000 kg (33,069 lb) on the L version

Frequently Asked Questions

01 What does the SIRIUS-1750 L version change?

X travel rises from 3,000 mm (118.1 in) to 4,000 mm (157.5 in), the table from 3,200 x 1,750 mm to 4,200 x 1,750 mm (165.4 x 68.9 in), and table load from 10,000 kg (22,046 lb) to 15,000 kg (33,069 lb). X rapid falls from 16 m/min to 10 m/min (394 ipm), weight rises to 35,000 kg (77,161 lb), and floor space becomes 10,740 x 5,510 mm (422.8 x 216.9 in).

02 What is the SIRIUS-1750 Gap version for?

Taller workpieces. It moves the spindle nose range from 250 ~ 1,000 mm (9.8 ~ 39.4 in) to 600 ~ 1,350 mm (23.6 ~ 53.1 in) and the workpiece passage from 2,000 x 850 mm (78.7 x 33.5 in) to 2,000 x 1,200 mm (78.7 x 47.2 in). Machine height becomes 5,370 mm (211.4 in) instead of 5,020 mm (197.6 in).

03 How heavy is the SIRIUS-1750?

31,000 kg (68,343 lb) as standard, 33,500 kg (73,854 lb) with the 60-tool magazine, 35,000 kg (77,161 lb) as the L version, and 37,500 kg (82,673 lb) as the L version with the 60-tool magazine. Plan the foundation for the configuration you order.

04 Which spindles are available on the SIRIUS-1750?

12,000 and 15,000 rpm built-in motor spindles with a BBT-50 taper, rated 30 / 25 kW (40.2 / 33.5 hp). Bearings are oil-jet lubricated on a Ø100 mm (Ø3.9 in) bore and the housing is jacket cooled by an oil cooler. CAT-50 shanks are optional.
