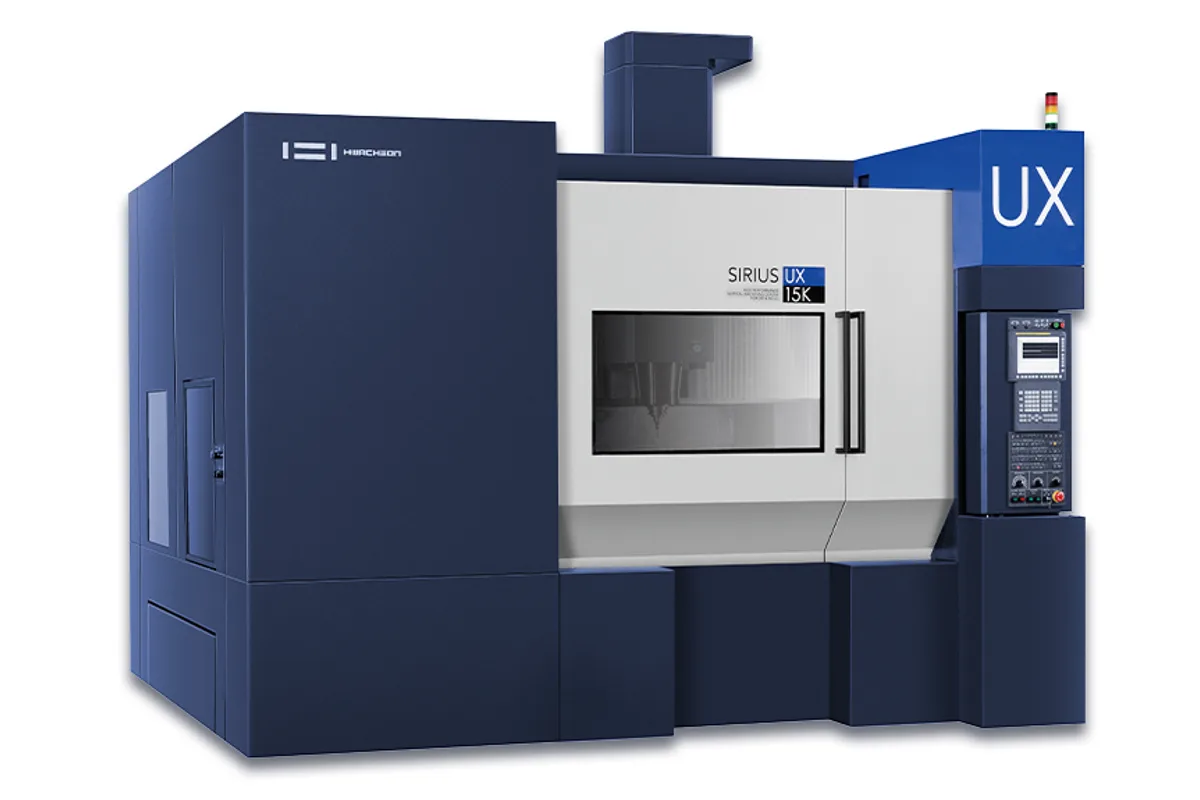

Hwacheon SIRIUS-UX
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon SIRIUS-UX cost?
Price estimate
We do not have a price for the Hwacheon SIRIUS-UX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon SIRIUS-UX is a 50-taper vertical machining center that runs fast: a BBT-50 built-in spindle at 12,000 or 15,000 rpm rated 30 / 25 kW (40.2 / 33.5 hp), with 1,500 x 750 x 650 mm (59.1 x 29.5 x 25.6 in) of travel over a 1,650 x 750 mm (65.0 x 29.5 in) table rated 2,500 kg (5,512 lb).
Many 50-taper machines use a gearbox for low-speed torque. The SIRIUS-UX lists none: its spindle is a built-in motor on a Ø100 mm (Ø3.9 in) bearing with oil-jet lubrication and an oil-cooled jacket. The large taper gives rigidity for heavy steel cuts and long tools, while 12,000 or 15,000 rpm leaves room for finishing with smaller cutters in the same setup. For comparison, the gear-driven SIRIUS-650 reaches 5,000 or 8,000 rpm at 18.5 / 11 kW (24.8 / 14.8 hp).
The magazine holds 40 tools, 60 as an option, and uses fixed-address selection, so each tool returns to its own pocket. That keeps the large tools where the programmer put them, which matters with tools up to Ø200 mm (Ø7.9 in) when the adjacent pockets are empty, Ø120 mm (Ø4.7 in) otherwise, 400 mm (15.7 in) long and 20 kg (44 lb). BBT-50 holders are standard and CAT-50 is an option.
The frame is sized for heavy die and mould sets. The distance between columns is 1,800 mm (70.9 in), the spindle nose ranges 175 to 825 mm (6.9 to 32.5 in) above the table, and five 18 mm T-slots at 125 mm pitch take the clamps. Rapids are 20 m/min (787 ipm) on all three axes.
The machine weighs 13,860 kg (30,556 lb), stands 3,550 mm (139.8 in) tall and needs a floor space of 3,770 x 3,330 mm (148.4 x 131.1 in). Supply is 70 kVA with air at 0.5 to 0.7 MPa x 690 NL/min, and the coolant tank holds 290 L (77 US gal). Control is Fanuc 31i-B.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,500 mm (59.1 in) |
| Y Axis Travel | 750 mm (29.5 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| Distance Spindle Nose to Table | 175 ~ 825 mm (6.9 ~ 32.5 in) |
| Distance Between Columns | 1,800 mm (70.9 in) |
| Table Size | 1,650 x 750 mm (65.0 x 29.5 in) |
| Max Table Load | 2,500 kg (5,512 lb) |
| T-Slots | 18 x 125 mm (0.71 x 4.92 in), 5 slots (width x pitch, count) |
| Max Spindle Speed | 12,000 / 15,000 rpm |
| Spindle Motor Power | 30 / 25 kW (40.2 / 33.5 hp) |
| Spindle Taper | BBT-50 |
| Spindle Bearing Bore | Ø100 mm (Ø3.9 in) |
| Spindle Drive | Built-in motor |
| Spindle Bearing Lubrication | Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 20 / 20 / 20 m/min (787 / 787 / 787 ipm) |
| Tool Shank | BBT-50 (opt.: CAT-50) |
| Pull Stud | 90˚ Type |
| Tool Capacity | 40 (opt.: 60) |
| Max Tool Diameter (full magazine) | Ø120 / Ø200 mm (Ø4.7 / Ø7.9 in) (with / without adjacent tools) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Selection | Fixed Address |
| Power Requirement | 70 kVA |
| Air Supply | 0.5 ~ 0.7 MPa x 690 NL/min |
| Coolant Tank Capacity | 290 L (77 US gal) |
| Machine Height | 3,550 mm (139.8 in) |
| Floor Space | 3,770 x 3,330 mm (148.4 x 131.1 in) |
| Machine Weight | 13,860 kg (30,556 lb) |
| CNC Control | Fanuc 31i-B |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- BBT-50 built-in spindle at 12,000 or 15,000 rpm rated 30 / 25 kW (40.2 / 33.5 hp)
- Table rated 2,500 kg (5,512 lb) on a 1,650 x 750 mm (65.0 x 29.5 in) table
- 40-tool magazine, 60 optional, for tools up to 400 mm (15.7 in) long and 20 kg (44 lb)
- 650 mm (25.6 in) of Z with the spindle nose up to 825 mm (32.5 in) above the table
- CAT-50 holders available as an option to BBT-50
Limitations
- Rapids of 20 m/min (787 ipm) are slower than the 36 m/min (1,417 ipm) of the 40-taper SIRIUS-UL+
- The spindle nose comes no closer than 175 mm (6.9 in) to the table, so thin parts cut with short tools may need a riser
- Coolant tank holds only 290 L (77 US gal) on a 2,500 kg (5,512 lb) capacity machine
- Needs a 70 kVA supply and stands 3,550 mm (139.8 in) tall
Best For
Frequently Asked Questions
01
A BBT-50 built-in motor spindle at 12,000 or 15,000 rpm, rated 30 / 25 kW (40.2 / 33.5 hp), on a Ø100 mm (Ø3.9 in) bearing with oil-jet lubrication and an oil-cooled jacket. CAT-50 tooling is optional, and the pull stud is a 90° type.
02
The SIRIUS-650 has a gear-driven BBT-50 spindle at 5,000 or 8,000 rpm rated 18.5 / 11 kW (24.8 / 14.8 hp), a longer 1,800 x 650 mm (70.9 x 25.6 in) table rated 1,500 kg (3,307 lb) and 24 tools. The SIRIUS-UX is faster and more powerful, with a 2,500 kg (5,512 lb) table rating and 40 tools.
03
The SIRIUS-UL+ is a 40-taper machine with a 1,200 x 600 mm (47.2 x 23.6 in) table rated 800 kg (1,764 lb) and spindles from 12,000 to 24,000 rpm. The SIRIUS-UX moves to BBT-50 tooling, a 1,650 x 750 mm (65.0 x 29.5 in) table and a 2,500 kg (5,512 lb) rating.
04
Up to Ø120 mm (Ø4.7 in) with adjacent tools in place or Ø200 mm (Ø7.9 in) with the neighbouring pockets empty, up to 400 mm (15.7 in) long and 20 kg (44 lb). The magazine holds 40 tools, 60 as an option, by fixed address.
05
Floor space of 3,770 x 3,330 mm (148.4 x 131.1 in), 3,550 mm (139.8 in) of height and a foundation for 13,860 kg (30,556 lb). It takes 70 kVA and air at 0.5 to 0.7 MPa x 690 NL/min.
