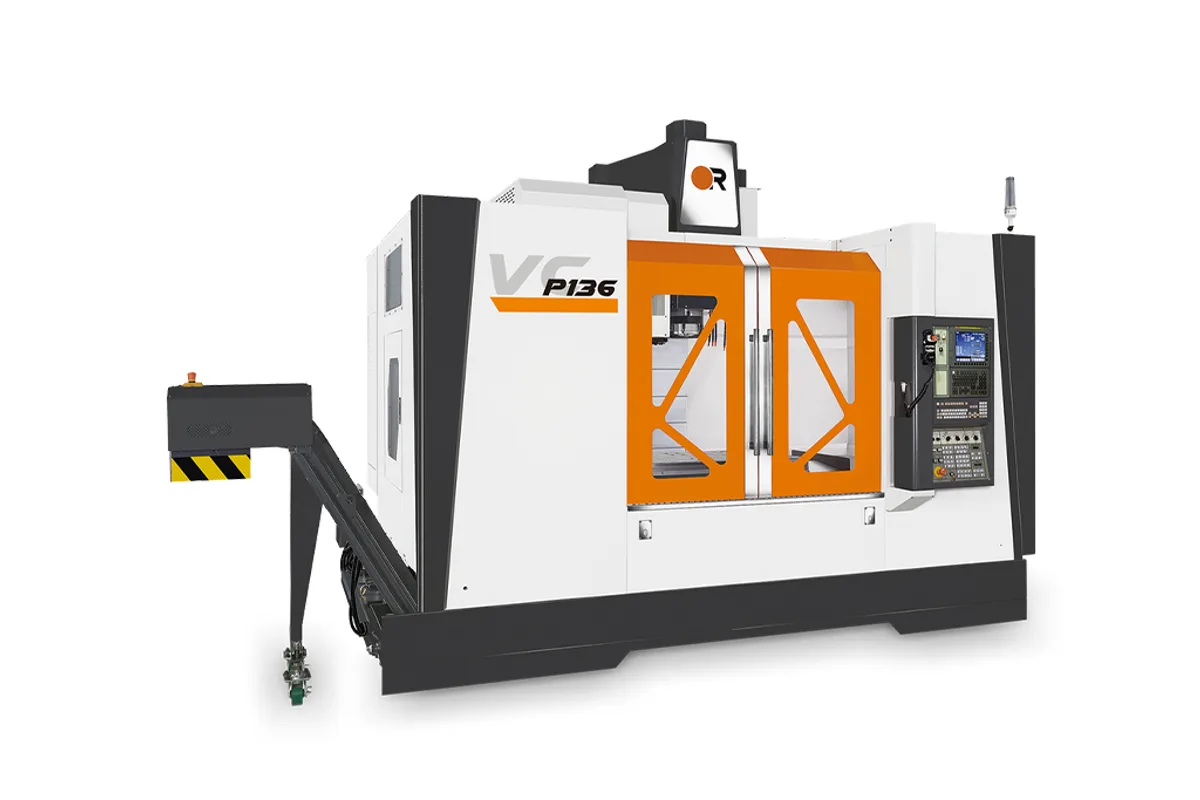

Victor Taichung Vcenter-P136
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-P136 cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-P136 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-P136 is the largest of the three-axis P series machines, with 1,360 mm (53.54 in) of X travel and 700 mm (27.55 in) in both Y and Z. The table is 1,400 x 700 mm (55.11 x 27.55 in) and takes a full tonne: 1,000 kg (2,204.61 lb).
Its proportions are those of a small mould and plate machine. Y travel equals the table depth, so the whole surface is usable, and 700 mm (27.55 in) of Z gives room for a tall workpiece plus a long tool. The seven T-slots are 18 mm wide on a 100 mm pitch.
It is not as fast as its smaller siblings. Rapid feeds are given as 32/32/32 m/min, lower than the maker quotes for the smaller P models, a reasonable trade for the heavier moving masses. The spindle is unchanged: BBT-40, 12,000 rpm, 30 tools, with 11 / 15 / 18.5 kW (15 / 20 / 25 HP) in the Non CTS column and 7.5 / 11 / 15 kW (10 / 15 / 20 HP) in the CTS column.
That last point is the limit to keep in mind. A 40-taper spindle and a 7 kg (15.43 lb) tool limit on a machine of 8,880 kg (19,577.02 lb) mean large parts are welcome but heavy stock removal is not its strength. For that, the maker's box-way G series has a BBT-50 spindle on similar travels.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,360 mm (53.54 in) |
| Y Axis Travel | 700 mm (27.55 in) |
| Z Axis Travel | 700 mm (27.55 in) |
| Table Size | 1,400 x 700 mm (55.11 x 27.55 in) |
| T-Slots | 7 x 18 x 100 mm |
| Max Table Load | 1,000 kg (2,204.61 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | Non CTS: 11 / 15 / 18.5 kW (15 / 20 / 25 HP); CTS: 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 30 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 8,880 kg (19,577.02 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,360 x 700 x 700 mm class travels with a 1,400 x 700 mm (55.11 x 27.55 in) table
- 1,000 kg (2,204.61 lb) table load
- Y travel covers the full table depth
- 12,000 rpm BBT-40 spindle with 30 tools
- 700 mm (27.55 in) of Z travel for tall parts
Limitations
- Rapid feeds are 32/32/32 m/min, below the smaller P models
- 40-taper spindle and 7 kg (15.43 lb) tool limit on a large machine
- CTS column lists 7.5 / 11 / 15 kW (10 / 15 / 20 HP)
- Weighs 8,880 kg (19,577.02 lb)
Best For
Frequently Asked Questions
01
X travel is 1,360 mm (53.54 in), Y travel 700 mm (27.55 in) and Z travel 700 mm (27.55 in). The table is 1,400 x 700 mm (55.11 x 27.55 in) with 7 x 18 x 100 mm T-slots.
02
1,000 kg (2,204.61 lb). That is well above the 600 kg (1,322.77 lb) of the Vcenter-P106, and the machine itself weighs 8,880 kg (19,577.02 lb).
03
Victor Taichung quotes rapid feeds of 32/32/32 m/min for this model. The spindle reaches 12,000 rpm, and a 15000 rpm direct-coupled spindle is on the P series option list.
04
It has a BBT-40 spindle rated at most 11 / 15 / 18.5 kW (15 / 20 / 25 HP) and a 7 kg (15.43 lb) tool limit, so it suits medium cuts and finishing on large parts more than heavy stock removal.
