Hedelius FORTE 10-6200

Q: How much does the Hedelius FORTE 10-6200 cost?

The price estimate for the Hedelius FORTE 10-6200 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hedelius-forte-10-6200#price; the request is passed to Hedelius or an authorised dealer.

Specs verified 2026-10-04 · hedelius.de Updated 2026-10-04

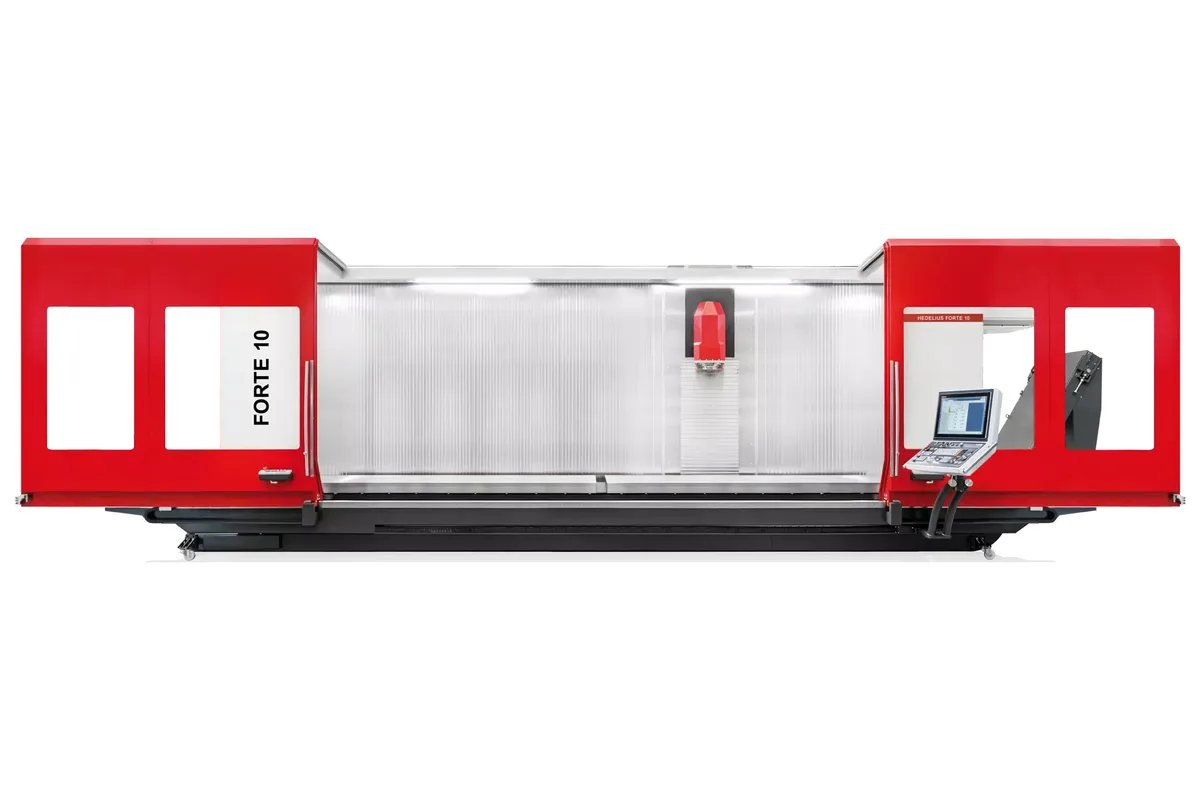

Hedelius FORTE 10-6200 3-axis travelling column machining centre

Image: hedelius.de, Hedelius

Key Specifications

Tool Capacity

40 / 192

Table Size

6,680 x 1,000 mm (263.0 x 39.4 in)

Accuracy

A=6 µm/1,000 mm (ISO 230-2, X, Y, Z)

x axis travel

6,200 mm (244.1 in)

y axis travel

1,000 mm (39.4 in)

z axis travel

1,165 mm (45.9 in)

How much does the Hedelius FORTE 10-6200 cost?

Price estimate

Uncertain

We do not have a price for the Hedelius FORTE 10-6200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hedelius FORTE 10-6200 rounds off the FORTE 10 series with a 6,200 mm (244.1 in) X travel. It is the largest 3-axis machine Hedelius builds with SK50 tooling: a travelling column centre with 1,000 mm of Y, 1,165 mm of Z, and a fixed table of 6,680 x 1,000 mm that carries 8,000 kg (17,637 lb).

Hedelius is specific about how this one is built. The travelling column and the machine table are heavy grey cast iron, which the maker calls an essential criterion for an SK50 machine if surface quality is to stay high and tool wear low in difficult materials. The axes run on generously dimensioned recirculating roller guides, with direct Heidenhain measuring systems in all axes. At 31,500 kg (69,444 lb) the machine weight bears that description out.

The mass is there to support the spindle. It produces 300 Nm and 50 kW, with a top speed of 8,000 or 12,000 rpm, and Hedelius rates it at 1,050 cm3/min in E335/St60-2. Feed force is 34,000 N. SK50 and BT50 are the standard tool systems and HSK A100 the optional one.

A six-metre table can be worked as one or as two. The data sheet lists pendulum operation as 2,765 x 2,765 mm. Tooling is 40 places as standard with access to up to 192 tools, each up to 400 mm long and 12 kg, changed in ca. 15 s chip to chip. Accessories named for the series include rotary tables, vacuum pumps and pick-up magazines for extra-long tools.

Full Specifications

Parameter	Value
X Axis Travel	6,200 mm (244.1 in)
Y Axis Travel	1,000 mm (39.4 in)
Z Axis Travel	1,165 mm (45.9 in)
Pendulum Operation	2,765 x 2,765 mm (108.9 x 108.9 in)
Spindle Option 1	SK50 / BT50 / HSK A100, 8,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30
Spindle Option 2	SK50 / BT50 / HSK A100, 12,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30
Spindle Distance	20 - 1,185 mm (0.8 - 46.7 in)
Table Size	6,680 x 1,000 mm (263.0 x 39.4 in)
T-Slots	18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in)
Max Table Load	8,000 kg (17,637 lb)
Feed Rate Xyz	40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable)
Feed Force Max	34,000 N (7,643 lbf)
Formingstar 3d Package	optional
Tool Capacity	40 / 192
Max Tool Diameter (full magazine)	100 / 140 mm (3.9 / 5.5 in); 140 mm with free adjoining areas (option)
Max Tool Length	400 mm (15.7 in)
Max Tool Weight	12 kg (26 lb); other weights on request
Chip to Chip Time	ca. 15 s (for pre-selected follow-on tools)
Positioning Accuracy	A=6 µm/1,000 mm (ISO 230-2, X, Y, Z)
Machine Weight	31,500 kg (69,444 lb)
Transport Height	3,240 mm (127.6 in)
Transport Width	4,230 / 3,940 mm (166.5 / 155.1 in)

Specifications sourced from hedelius.de — verified 2026-10-04

Strengths & Limitations

Strengths

6,200 mm of X travel with a fixed 6,680 x 1,000 mm table for 8,000 kg (17,637 lb)
Travelling column and table in heavy grey cast iron, on recirculating roller guides
Direct Heidenhain measuring systems in all axes
SK50 spindle with 300 Nm and 50 kW, rated at 1,050 cm3/min in E335/St60-2
Pendulum operation with two 2,765 x 2,765 mm work areas

Limitations

31,500 kg (69,444 lb), 3,240 mm transport height and a table near seven metres: a foundation and logistics project
40 tools as standard; access to up to 192 costs extra
Maximum spindle speed of 12,000 rpm
Y travel of 1,000 mm is the limit on part width

Best For

Extra-long workpieces up to 6,200 mm and 8,000 kg Difficult-to-machine materials cut with SK50 tools Machine beds, press frames and large welded structures Two large pendulum set-ups of up to 2,765 mm each

Frequently Asked Questions

01 How long and heavy can a part be on the FORTE 10-6200?

X travel is 6,200 mm and the clamping area 6,680 x 1,000 mm. The table load is 8,000 kg (17,637 lb). Y travel is 1,000 mm and Z travel 1,165 mm, with a spindle distance of 20 to 1,185 mm above the table.

02 Why does Hedelius stress grey cast iron on the FORTE 10-6200?

The travelling column and machine table are made of heavy grey cast iron. Hedelius calls that an essential criterion for an SK50 machine to ensure high surface quality and low tool wear even in difficult-to-machine materials. The standard machine weighs 31,500 kg.

03 What measuring systems and guides does the FORTE 10-6200 use?

Hedelius lists generously dimensioned recirculating roller guides and direct Heidenhain measuring systems in all axes. The stated positioning accuracy is A=6 µm/1,000 mm to ISO 230-2, a per-metre value, so ask for the protocol over the whole 6,200 mm.

04 How many tools does the FORTE 10-6200 carry?

40 tools as standard for SK50, BT50 or HSK A100, with access to up to 192 tools as an extension. Tools may be 400 mm long, 12 kg and 100 mm in diameter, or 140 mm with free adjoining places. Chip-to-chip time is ca. 15 s.
