Vision Wide Vertical Machining Centers (VMC)

Vision Wide SF-2127

Q: How much does the Vision Wide SF-2127 cost?

The price estimate for the Vision Wide SF-2127 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-sf-2127#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

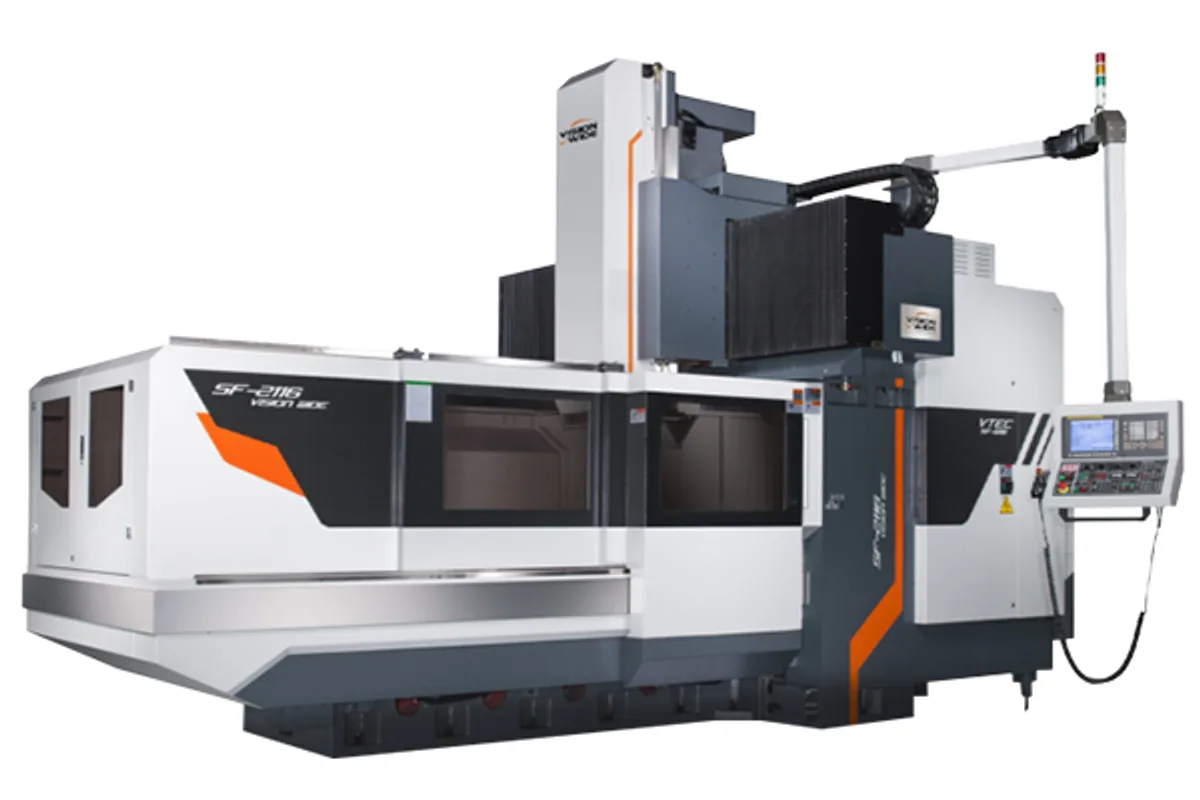

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

2,000x1,800 mm (78.7x70.9 in)

x axis travel

2,100 mm (82.7 in)

y axis travel

2,700 mm (106.3 in)

z axis travel box way

800/1,020 mm (31.5/40.2 in)(Opt.)

max table load

8,000 kg (17,637 lb)

spindle power cont 30 min

18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)

How much does the Vision Wide SF-2127 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide SF-2127 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Y travel is longer than X travel on the Vision Wide SF-2127. The cross axis runs 2,700 mm (106.3 in) and the table axis 2,100 mm (82.7 in), an unusual proportion for a bridge-type machine and the widest reach of any SF.

The table underneath is 2,000x1,800 mm (78.7x70.9 in), rated for 8,000 kg (17,637 lb). So the beam overhangs the table generously on both sides. That space is not for bigger parts, since the table and its load rating are no larger than on the SF-2120. It is working room for a head attachment beside the part and parking room in front of a floor-standing tool changer.

Is it the right machine for a compact, heavy block that needs all five faces done? On the figures, yes: short X stroke, so less floor length, and full access around a part up to the table size. The Z axis is the box way type with 800 mm of travel, or 1,020 mm as an option.

Spindle speed is 6,000 rpm with the standard 2-step gear spindle and power is 18.5/22 kW (24.8/29.5 hp). Rapids are X/Y/Z : 24/20/15 m/min.

Full Specifications

Parameter	Value
X Axis Travel	2,100 mm (82.7 in)
Y Axis Travel	2,700 mm (106.3 in)
Z Axis Travel Box Way	800/1,020 mm (31.5/40.2 in)(Opt.)
Table Size	2,000x1,800 mm (78.7x70.9 in)
Max Table Load	8,000 kg (17,637 lb)
Spindle Power Cont 30 Min	18.5/22 kW (24.8/29.5 hp) (22/26 kW (29.5/34.9 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	6,000/4,000 rpm(Opt.)
Cutting Feed Rate	1-10,000 mm/min
Rapid Traverse Xyz	X/Y/Z : 24/20/15 m/min
Tool Capacity Floor Standing Vertical Tool Change	32/40 pcs(Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.)/40 pcs(Opt.)/60 pcs(Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,700 mm (106.3 in) of Y travel, the longest in the SF series
2,000x1,800 mm (78.7x70.9 in) table with travel to spare on both sides
Short 2,100 mm (82.7 in) X stroke keeps the machine compact in length
Floor-standing tool changers, vertical or vertical-horizontal

Limitations

8,000 kg (17,637 lb) table load is the lowest rating in the series
The long Y travel does not enlarge the table
Only the box way geared spindle is listed

Best For

Compact, heavy blocks machined on five faces Shops short on floor length but needing wide reach Valve bodies, gearbox housings and die blocks up to 8,000 kg (17,637 lb)

Frequently Asked Questions

01 Why is the Y travel of the Vision Wide SF-2127 longer than its X travel?

The table lists 2,100 mm (82.7 in) for X and 2,700 mm (106.3 in) for Y. Vision Wide gives no explanation. The models with this long Y are also the ones listed with floor-standing tool changers, including a vertical-horizontal type.

02 What is the SF-2127 table size and load?

2,000x1,800 mm (78.7x70.9 in), with a maximum table load of 8,000 kg (17,637 lb). The SF-2120 has the same table and load with 2,000 mm (78.7 in) of Y travel.

03 What Z travel does the SF-2127 have?

800/1,020 mm (31.5/40.2 in)(Opt.) on the box way head. No linear way head is listed for this model, so there is no 1,000 mm option as on some other SF machines.

04 What are the spindle figures for the SF-2127?

Spindle power is 18.5/22 kW (24.8/29.5 hp) with a 22/26 kW (29.5/34.9 hp) option. The 2-step gear spindle is listed at 6,000/4,000 rpm(Opt.), meaning 6,000 rpm standard and 4,000 rpm optional.
