Hwacheon D2-5AX

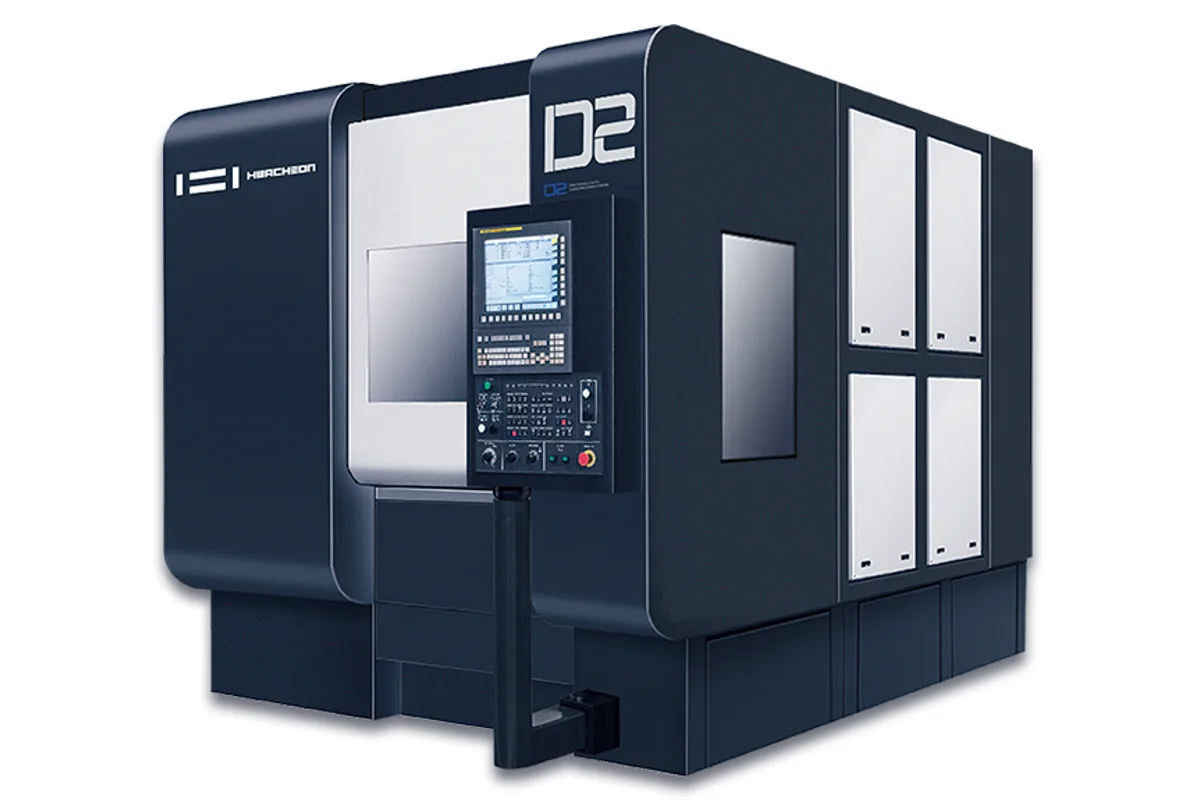

Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon D2-5AX cost?
Price estimate
We do not have a price for the Hwacheon D2-5AX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon D2-5AX is a high-productivity five-axis vertical machining centre for parts machining, and the smaller of the two machines in Hwacheon's D series (with the D3-5AX). Hwacheon describes it as a mid-size five-axis machine that is easy to automate: its structure is designed for fast acceleration and cycle times, and it leaves the front and right sides open for a robot or pallet system, making it suited to high-volume production.
Travels are 650 x 500 x 500 mm, with a trunnion that tilts the B axis from -30 to +110 degrees and rotates the C axis a full 360 degrees on a 600 mm table (400 mm and 500 mm tables are optional) rated for 500 kgf. Hwacheon quotes 0.0001 degree resolution on the rotary table and a hydraulic table clamp for stable roughing. A gantry-type frame with linear guides on all axes gives 36/30/30 m/min rapid traverse.
The in-house built #40 spindle comes in four versions: 12,000 rpm as standard (250 Nm) and 14,000, 20,000 and 24,000 rpm options, all at 37 kW peak. Spindle and frame cooling are used to control thermal growth. Tool magazines hold 30 tools as standard, with 40, 60 and 120 tools available.
Control is a Fanuc 0i-MF Plus, or a Fanuc 31i-B5 Plus option, with Hwacheon's HARMONY interface and HRCC II rotary-centre optimisation for five-axis accuracy. Automation options include a 20-pallet AWC and the HMP-100 multi-pallet system. The machine occupies 3,970 x 3,523 mm and weighs 11,500 kgf.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 650 mm (25.6 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| B Axis Range | -30 to +110 deg |
| C Axis Range | 360 deg |
| Distance Spindle Nose to Table | 175-675 mm (6.9-26.6 in) |
| Z Guide to Spindle Center | 192 mm (7.6 in) |
| Table Size | Ø600 mm (23.6 in) (optional Ø400 / Ø500) |
| Max Table Load | 500 kgf (1,102 lb) |
| T-Slots | 14 x 80 mm x 5 (width x pitch x number) |
| Rotary Table Resolution | 0.0001 deg |
| Max Spindle Speed | 12,000 rpm standard (14,000 / 20,000 / 24,000 rpm optional) |
| Spindle Motor Power | 37 / 18.5 kW (49.6 / 24.8 hp) for 12,000, 20,000 and 24,000 rpm; 37 / 22 kW (49.6 / 29.5 hp) for 14,000 rpm |
| Spindle Torque | 250 Nm (184.4 lb-ft) at 12,000 rpm; 303 Nm (223.5 lb-ft) at 14,000 rpm; 221 Nm (163.0 lb-ft) at 20,000 / 24,000 rpm |
| Spindle Taper | ISO #40, 7/24 taper (BBT-40); options CAT-40, HSK-A63, SK-40; HSK-A63 on 24,000 rpm |
| Spindle Bearing Bore | Ø70 mm (2.8 in) |
| Spindle Cooling | Oil cooler |
| Rapid Traverse Xyz | 36 / 30 / 30 m/min (1,417 / 1,181 / 1,181 ipm) |
| Axis Motors | X / Y / Z / B / C 7 / 4 / 4 / 5.5 / 2.7 kW |
| Tool Capacity | 30 (optional 40, 60, 120) |
| Max Tool Diameter (full magazine) | Ø80 / Ø130 mm (3.1 / 5.1 in) with / without adjacent tools |
| Max Tool Length | 300 mm (11.8 in) |
| Max Tool Weight | 8 kgf (18 lb) |
| Tool Selection | Memory random |
| Pull Stud | MAS P40T-1 (45 deg) |
| Power Requirement | 70 kVA; air 0.5-0.7 MPa |
| Machine Height | 3,610 mm (142.1 in) |
| Floor Space | 3,970 x 3,523 mm (156.3 x 138.7 in) L x W (mesh-drum chip type 4,360 x 3,523 mm; rear discharge 3,450 x 4,370 mm) |
| Machine Weight | 11,500 kgf (25,353 lb) (mesh-drum type 11,800 kgf; rear discharge 11,600 kgf) |
| CNC Control | Fanuc 0i-MF Plus (optional Fanuc 31i-B5 Plus; HARMONY on either) |
| Automation | AWC (20 pallets) or HMP-100 multi-pallet system on the right side; robot loading from front or right |
Specifications sourced from hwacheon.com — verified 2026-09-25
Strengths & Limitations
Strengths
- Four spindle choices from 12,000 rpm (250 Nm) to 24,000 rpm, all rated at 37 kW peak
- Designed for automation: robot access from the front or right and optional 20-pallet AWC or HMP-100 pallet system
- Magazine options up to 120 tools for high-mix or lights-out production
- Wide -30 to +110 degree B axis and 0.0001 degree rotary table resolution for five-axis work
- Hydraulic table clamping and a gantry frame with linear guides on all axes for stable roughing and fast rapids
- HRCC II rotary-centre optimisation and HARMONY software aimed at five-axis accuracy
Limitations
- 500 kgf table load and a 600 mm table limit it to small and medium parts
- #40 taper spindle limits heavy roughing compared with a #50 machine
- Maximum tool weight of 8 kgf and tool length of 300 mm restrict long or heavy tooling
- 70 kVA power requirement and 11,500 kgf weight are substantial for a machine of this envelope
- The larger D3-5AX is needed for parts beyond 650 x 500 x 500 mm travels
Best For
Frequently Asked Questions
01
X, Y and Z travels are 650, 500 and 500 mm. The B axis tilts from -30 to +110 degrees and the C axis rotates 360 degrees; the distance from spindle nose to table is 175-675 mm.
02
A 12,000 rpm spindle (37/18.5 kW, 250 Nm) is standard. Options are 14,000 rpm (37/22 kW, 303 Nm), 20,000 rpm and 24,000 rpm (both 37/18.5 kW, 221 Nm). The 24,000 rpm spindle uses HSK-A63; the others take BBT-40, CAT-40, HSK-A63 or SK-40.
03
30 tools as standard, with 40, 60 and 120 tool magazines available. Maximum tool diameter is 80 mm with adjacent tools (130 mm without), length 300 mm and weight 8 kgf.
04
Yes. Hwacheon designed it for automation: robots can load from the front or right side, and a 20-pallet AWC or the HMP-100 multi-pallet system can be fitted on the right side.
05
Fanuc 0i-MF Plus as standard, with Fanuc 31i-B5 Plus as an option. Hwacheon's HARMONY interface is available on both.
