Hwacheon Vertical Machining Centers (VMC)

Hwacheon HiT-400

Specs verified 2026-10-03 · hwacheon.com Updated 2026-10-03

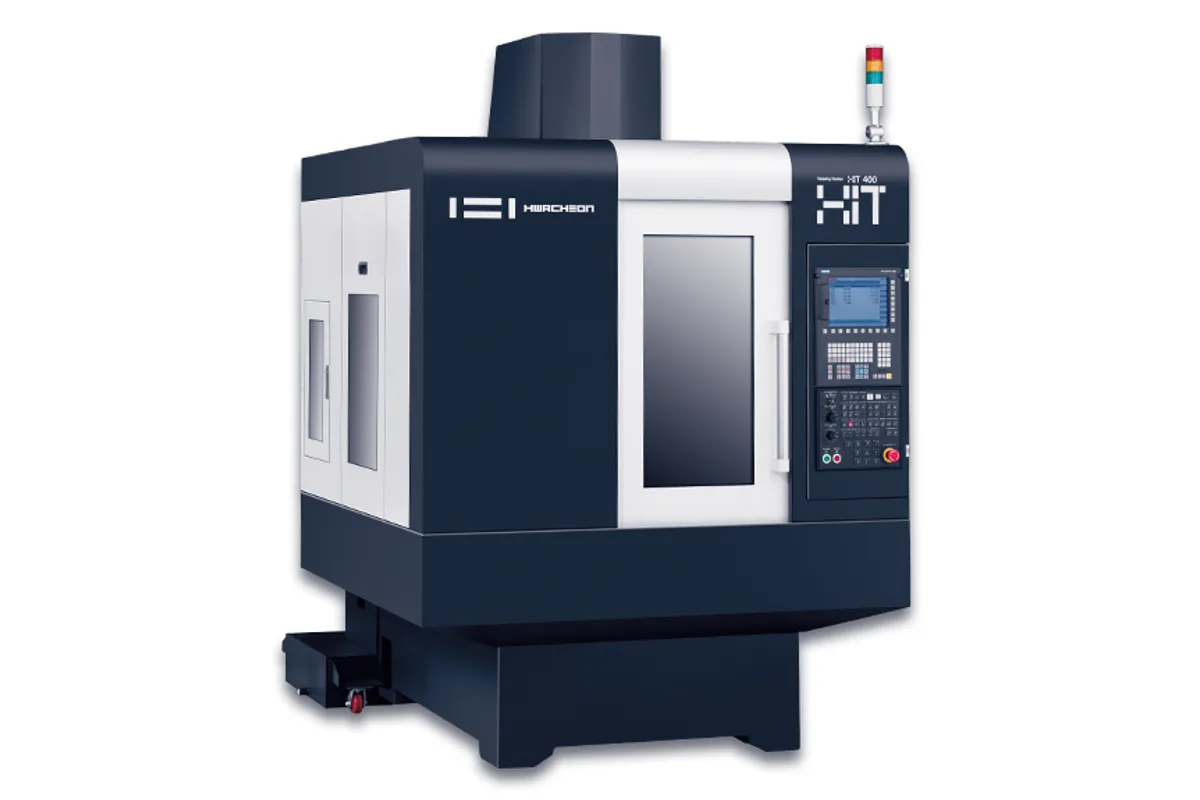

Image: hwacheon.com, Hwacheon

Key Specifications

Max Spindle

12,000 rpm (12K, FANUC) / 15,000 rpm (15K, SIEMENS) / 24,000 rpm (24K, FANUC or SIEMENS); CTS (opt.)

Spindle Taper

BBT-30

Tool Capacity

Table Size

600 x 400 mm (23.6 x 15.7 in)

Spindle Power

FANUC versions: 7.5 / 5.5 kW (10.1 / 7.4 hp); SIEMENS versions: 7.2 / 4.8 kW (9.7 / 6.4 hp)

x axis travel

520 mm (20.5 in)

How much does the Hwacheon HiT-400 cost?

Price estimate

Uncertain

We do not have a price for the Hwacheon HiT-400 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hwacheon HiT-400 is a compact BBT-30 vertical machining center with 520 x 400 x 300 mm (20.5 x 15.7 x 11.8 in) of X, Y and Z travel, a 600 x 400 mm (23.6 x 15.7 in) table and 60 m/min (2,362 ipm) rapids on all three axes. It is a machine for short cycles on small parts, where rapid moves and tool changes take up as much of the cycle as cutting does.

The spindle is chosen together with the control. The 12K version runs to 12,000 rpm on a FANUC 0i-MF, the 15K version to 15,000 rpm on a SIEMENS-828D, and the 24K version to 24,000 rpm on either. All are direct-coupled, grease-lubricated and jacket-cooled, by a fan cooler on 12K and 15K and by an oil cooler on 24K. Rated power is 7.5 / 5.5 kW (10.1 / 7.4 hp) on the FANUC versions and 7.2 / 4.8 kW (9.7 / 6.4 hp) on the SIEMENS versions. Through-spindle coolant (CTS) is an option. The control also decides the supply: FANUC machines take 220V, 60Hz and SIEMENS machines 380V, 60Hz, so settle it with the shop's electrics before ordering.

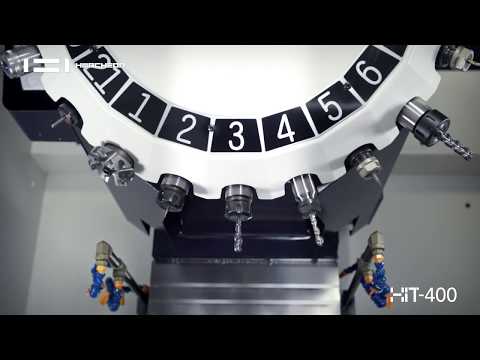

The 21-tool magazine works on fixed addresses and changes chip to chip in 1.6 sec. Each tool may be up to Ø80 mm (Ø3.1 in), 200 mm (7.9 in) long and 2.5 kg (5.5 lb), which is the territory of drills, taps and small end mills. The spindle nose sits 150 to 450 mm (5.9 to 17.7 in) from the table.

The table is rated 200 kg (441 lb). The HiT-400L carries the same rating on a longer 800 x 400 mm (31.5 x 15.7 in) table, and the HiT-360D has two 650 x 400 mm (25.6 x 15.7 in) tables rated 250 kg (551 lb) each. The HiT-400 is the smallest of the three on the floor at 1,650 x 2,085 mm (65.0 x 82.1 in) and 2,500 kg (5,512 lb). Height is 2,384 mm (93.9 in), 2,500 mm (98.4 in) with the top cover and 2,660 mm (104.7 in) with CTS, and the coolant tank grows from 200 L (53 US gal) to 300 L (79 US gal) when CTS is fitted.

Full Specifications

Parameter	Value
X Axis Travel	520 mm (20.5 in)
Y Axis Travel	400 mm (15.7 in)
Z Axis Travel	300 mm (11.8 in)
Distance Spindle Nose to Table	150 ~ 450 mm (5.9 ~ 17.7 in)
Distance Column to Spindle Center	454 mm (17.9 in)
Table Size	600 x 400 mm (23.6 x 15.7 in)
Max Table Load	200 kg (441 lb)
Max Spindle Speed	12,000 rpm (12K, FANUC) / 15,000 rpm (15K, SIEMENS) / 24,000 rpm (24K, FANUC or SIEMENS); CTS (opt.)
Spindle Motor Power	FANUC versions: 7.5 / 5.5 kW (10.1 / 7.4 hp); SIEMENS versions: 7.2 / 4.8 kW (9.7 / 6.4 hp)
Spindle Taper	BBT-30
Spindle Bearing Bore	Ø70 mm (Ø2.8 in)
Spindle Drive	Direct-coupled motor
Spindle Lubrication	Grease
Spindle Cooling	Jacket cooling (fan cooler on 12K / 15K; oil cooler on 24K)
Rapid Traverse Xyz	60 / 60 / 60 m/min (2,362 / 2,362 / 2,362 ipm)
Pull Stud	45°
Tool Capacity	21
Max Tool Diameter (full magazine)	Ø80 mm (Ø3.1 in)
Max Tool Weight	2.5 kg (5.5 lb)
Tool Selection	Fixed address
Tool Change Time	1.6 sec (C to C)
Power Requirement	25 kVA
Power Supply	FANUC versions: 220V, 60Hz; SIEMENS versions: 380V, 60Hz
Air Supply	5 kg/cm²
CNC Control	FANUC 0i-MF (12K, 24K) / SIEMENS-828D (15K, 24K)
Max Tool Length	200 mm (7.9 in)
Coolant Tank	200 L (53 US gal); with CTS 300 L (79 US gal)
Machine Height	2,384 mm (93.9 in); with top cover 2,500 mm (98.4 in); with CTS 2,660 mm (104.7 in)
Machine Dimensions	1,650 x 2,085 mm (65.0 x 82.1 in) (length x width)
Machine Weight	2,500 kg (5,512 lb)

Specifications sourced from hwacheon.com — verified 2026-10-03

Strengths & Limitations

Strengths

60 m/min (2,362 ipm) rapids on X, Y and Z with a 1.6 sec chip-to-chip tool change keep non-cutting time short
Three spindle choices: 12,000 rpm (12K, FANUC), 15,000 rpm (15K, SIEMENS) or 24,000 rpm (24K, FANUC or SIEMENS)
Small footprint of 1,650 x 2,085 mm (65.0 x 82.1 in) at a machine weight of 2,500 kg (5,512 lb)
Through-spindle coolant (CTS) is available, with a 300 L (79 US gal) tank in place of the standard 200 L (53 US gal)
The 24K spindle gets an oil cooler on its cooling jacket rather than the fan cooler of the 12K and 15K versions

Limitations

Table load is 200 kg (441 lb), so a heavy vise or a rotary table uses up much of the rating
Spindle power is 7.5 / 5.5 kW (10.1 / 7.4 hp) on FANUC and 7.2 / 4.8 kW (9.7 / 6.4 hp) on SIEMENS versions, which limits heavy roughing
BBT-30 tools are limited to Ø80 mm (Ø3.1 in), 200 mm (7.9 in) long and 2.5 kg (5.5 lb)
300 mm (11.8 in) of Z travel and a fixed-address magazine of 21 tools

Best For

Drilling, tapping and light milling of small parts Small-tool finishing on the 24,000 rpm 24K spindle Cells where floor space is tight: 1,650 x 2,085 mm (65.0 x 82.1 in) Workpieces within 520 x 400 mm (20.5 x 15.7 in) of X and Y travel

Frequently Asked Questions

01 Which spindle and control combinations does the HiT-400 offer?

Three. The 12K spindle reaches 12,000 rpm with a FANUC 0i-MF. The 15K spindle reaches 15,000 rpm with a SIEMENS-828D. The 24K spindle reaches 24,000 rpm and can have either control. FANUC versions are rated 7.5 / 5.5 kW (10.1 / 7.4 hp), SIEMENS versions 7.2 / 4.8 kW (9.7 / 6.4 hp). Through-spindle coolant is optional on all.

02 How does the HiT-400 differ from the HiT-400L and the HiT-360D?

The HiT-400L has a longer 800 x 400 mm (31.5 x 15.7 in) table, the same 200 kg (441 lb) rating and weighs 2,600 kg (5,732 lb). The HiT-360D has two 650 x 400 mm (25.6 x 15.7 in) tables rated 250 kg (551 lb) each. All three use the BBT-30 spindle options and a 21-tool magazine; the HiT-400 has the single 600 x 400 mm (23.6 x 15.7 in) table.

03 What size tools fit the HiT-400 magazine?

Up to Ø80 mm (Ø3.1 in) in diameter, 200 mm (7.9 in) in length and 2.5 kg (5.5 lb) in weight, in a BBT-30 taper with a 45° pull stud. The magazine holds 21 tools on fixed addresses and changes in 1.6 sec chip to chip.

04 What power and air supply does the HiT-400 need?

The electrical demand is 25 kVA. FANUC versions run on 220V, 60Hz and SIEMENS versions on 380V, 60Hz. Air supply is listed at 5 kg/cm². Check which control you are ordering before planning the electrical installation.

05 How much room does the HiT-400 take up?

The floor area is 1,650 x 2,085 mm (65.0 x 82.1 in), length by width, and the machine weighs 2,500 kg (5,512 lb). It stands 2,384 mm (93.9 in) tall, 2,500 mm (98.4 in) with the top cover and 2,660 mm (104.7 in) with through-spindle coolant fitted.
