Mazak VARIAXIS C-700
Image: mazak.com, Yamazaki Mazak
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Mazak VARIAXIS C-700 cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Yamazaki Mazak. Configuration moves it a long way.
Overview
The Mazak VARIAXIS C-700 is a CAT No.40 5-axis machining center with a Ø27.56 in (700 mm) × 19.69 in (500 mm) table and a B-axis range of -30° to +120°. Travels are 34 in (864 mm) in X, 24 in (610 mm) in Y and 21 in (533 mm) in Z, and the table carries 1,543 lb (700 kg). Mazak's series description says the tilting rotary table is supported at two ends and that roller gear cams on the B and C axes eliminate backlash.
Its nearest relative is the VARIAXIS C-600, which has 26 in (660 mm) of X and 22 in (559 mm) of Y on a Ø23.62 in (600 mm) × 19.69 in (500 mm) table with a 1,102 lb (500 kg) load. Z travel, spindle and rapids are the same on the VARIAXIS C-600 as here: 21 in (533 mm), 12,000 rpm and 1,654 ipm (42 m/min). The choice between the two is therefore about part diameter and weight. This machine takes a workpiece of Ø33.46 in (850 mm) × 19.69 in (500 mm).
The spindle in Mazak's table is modest for a machine of 24,691 lb (11,200 kg). It gives 11 kW (15 HP) continuous, the same 11 kW (15 HP) at 40% ED, and torque of 42 ft-lb (57 Nm) continuous and 52 ft-lb (71 Nm) at 40% ED. That suits aluminium and finishing passes better than steel roughing. Mazak states that the series offers a range of spindles, and its published cutting test for the series used a 15000 rpm high-torque spindle, so settle the spindle specification before comparing quotations.
The magazine holds 30 tools of up to Ø3 in (76 mm), or Ø5 in (127 mm) with adjacent pockets empty, 12 in (305 mm) long and 18 lb (8 kg). For the series Mazak describes an optional 2-pallet changer and an MPP pallet stocker that can be extended to 6, 12 or 18 pallets. The footprint is 102 in (2,591 mm) × 123 in (3,124 mm) with the MAZATROL SmoothAi control, and the machine is 126 in (3,200 mm) high.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø27.56 in (700 mm) × 19.69 in (500 mm) |
| Max Workpiece Size | Ø33.46 in (850 mm) × 19.69 in (500 mm) |
| Max Table Load | 1,543 lb (700 kg) |
| Spindle Taper | CAT No.40 |
| Max Spindle Speed | 12,000 rpm |
| Spindle Torque Intermittent | 52 ft-lb (71 Nm) (40% ED) |
| Spindle Torque | 42 ft-lb (57 Nm) continuous |
| Spindle Power Intermittent | 11 kW (15 HP) (40% ED) |
| Spindle Motor Power | 11 kW (15 HP) continuous |
| Tool Capacity | 30 tools |
| Max Tool Diameter (full magazine) | Ø3 in (76 mm) |
| Max Tool Diameter (adjacent pockets empty) | Ø5 in (127 mm) |
| Max Tool Length | 12 in (305 mm) |
| Max Tool Weight | 18 lb (8 kg) |
| X-Axis Travel | 34 in (864 mm) |
| Y-Axis Travel | 24 in (610 mm) |
| Z-Axis Travel | 21 in (533 mm) |
| B Axis Range | -30° - +120° |
| Spindle Nose to Table | 4 in (102 mm) to 25 in (635 mm) |
| Rapid Traverse X | 1,654 ipm (42 m/min) |
| Rapid Traverse Y | 1,654 ipm (42 m/min) |
| Rapid Traverse Z | 1,654 ipm (42 m/min) |
| Floor Space Required | 102 in (2,591 mm) × 123 in (3,124 mm) (W × L, MAZATROL SmoothAi) |
| Machine Height | 126 in (3,200 mm) |
| Machine Weight | 24,691 lb (11,200 kg) |
Specifications sourced from mazak.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 34 in (864 mm) of X travel and a Ø33.46 in (850 mm) × 19.69 in (500 mm) maximum workpiece, against 26 in (660 mm) of X on the VARIAXIS C-600
- 1,543 lb (700 kg) table load, compared with 1,102 lb (500 kg) for the VARIAXIS C-600
- B-axis range of -30° to +120°, on a table Mazak describes as supported at two ends with roller gear cams on the B and C axes
- Footprint of 102 in (2,591 mm) × 123 in (3,124 mm) with the MAZATROL SmoothAi control
- Series features named by Mazak include MAZA-CHECK 5-axis calibration and Ai Thermal Shield
Limitations
- The spindle in the table is 11 kW (15 HP) continuous with 42 ft-lb (57 Nm) continuous torque, light for steel roughing on a machine this size
- With a full magazine, tools are limited to Ø3 in (76 mm), 12 in (305 mm) in length and 18 lb (8 kg)
- Z travel is 21 in (533 mm), no more than the smaller VARIAXIS C-600, and the spindle nose reaches at most 25 in (635 mm) from the table
- The 2-pallet changer and the RMP600 wireless touch probe are optional equipment
Best For
Frequently Asked Questions
01
Size and load. The VARIAXIS C-700 has 34 in (864 mm) of X, 24 in (610 mm) of Y and a 1,543 lb (700 kg) table load. The VARIAXIS C-600 has 26 in (660 mm) of X, 22 in (559 mm) of Y and a 1,102 lb (500 kg) table load. Both the VARIAXIS C-600 and this machine have 21 in (533 mm) of Z, a 12,000 rpm CAT No.40 spindle, 30 tools and 1,654 ipm (42 m/min) rapids.
02
Mazak's table gives 11 kW (15 HP) continuous and also 11 kW (15 HP) at 40% ED, with torque of 42 ft-lb (57 Nm) continuous and 52 ft-lb (71 Nm) at 40% ED, at up to 12,000 rpm. Mazak says a range of spindles is available in the VARIAXIS C series, so check which spindle a quoted machine carries.
03
Ø33.46 in (850 mm) in diameter and 19.69 in (500 mm) high, up to 1,543 lb (700 kg) on the table. The table measures Ø27.56 in (700 mm) × 19.69 in (500 mm), and the distance from spindle nose to table runs from 4 in (102 mm) to 25 in (635 mm).
04
The magazine holds 30 tools. Maximum tool diameter is Ø3 in (76 mm), or Ø5 in (127 mm) when the adjacent pockets are empty. Maximum tool length is 12 in (305 mm) and maximum tool weight is 18 lb (8 kg), which rules out large, heavy face mills.
05
Mazak names a 2-pallet changer, a robot and hydraulic or pneumatic fixtures for the series. It also describes an expandable multi-pallet changer system and the MPP (MULTI PALLET POOL) stocker, whose storage can be set at 6, 12 or 18 pallets after initial installation. The 2-pallet changer is stated to be optional.
Videos
Yamazaki Mazak Corporation [English]
Mazak North America
Intermaher Mazak

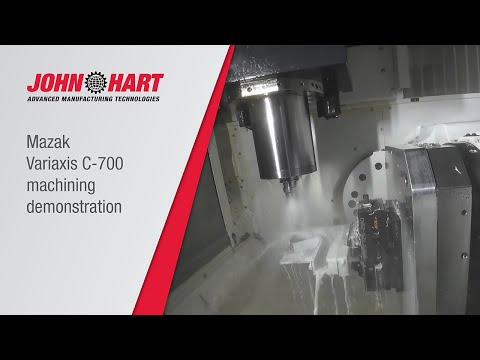

John Hart
