Huron KX 300

Q: How much does the Huron KX 300 cost?

The price estimate for the Huron KX 300 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/huron-kx-300#price; the request is passed to Huron or an authorised dealer.

Specs verified 2026-10-04 · huron.fr Updated 2026-10-04

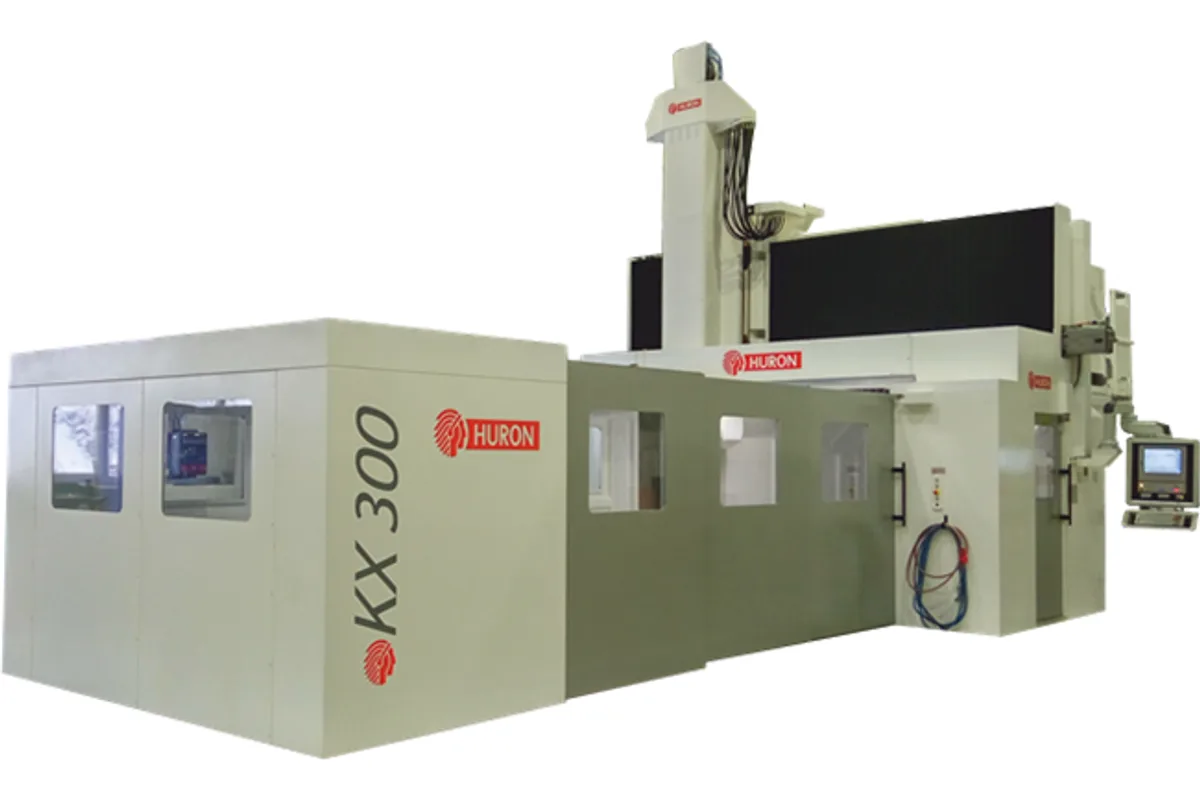

Image: huron.fr, Huron

Key Specifications

Max Spindle

18,000 rpm

Spindle Taper

HSK 63-A

Tool Capacity

Table Size

5,200 x 2,000 mm (204.7 x 78.7 in)

Spindle Power

30 kW (40.2 hp)

Accuracy

X / Y / Z: 0.007 mm (0.0003 in); B, C: 10 sec

How much does the Huron KX 300 cost?

Price estimate

Uncertain

We do not have a price for the Huron KX 300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Huron KX 300 is the largest fixed-portal machine in the KX Large Series: 5,000 x 3,100 x 1,500 mm (196.9 x 122.0 x 59.1 in) of travel and a 5,200 x 2,000 mm table rated for 20,000 kg (44,092 lb). Huron's series text speaks of work areas supporting up to 20 tonnes, and this is the model that figure belongs to.

At this scale the Z axis matters as much as the plan area. With 1,500 mm of vertical travel and a forked five-axis head, the machine can work the sides and top of a tall casting or fabricated structure in one clamping. The 3,100 mm Y stroke passes the 2,000 mm table by a wide margin on each side.

Movement is deliberate. All three linear axes traverse at 20 m/min. The head matches the KX 100 and KX 200, with B at +/- 105°, C at +/- 190°, 30 rpm and 7,000 Nm. The spindle is also shared: HSK 63-A, 18,000 rpm, 30 kW and 240 Nm with a 1,200 rpm characteristic speed.

Installation is a building project. The machine is 15,000 mm deep, 8,890 mm wide and 6,370 mm high. Huron states 0.007 mm linear positioning and 0.004 mm repeatability, the same as on the smaller models, with direct measurement on linear and rotary axes. The changer holds 40 tools.

Full Specifications

Parameter	Value
X Axis Travel	5,000 mm (196.9 in)
Y Axis Travel	3,100 mm (122.0 in)
Z Axis Travel	1,500 mm (59.1 in)
Rapid Traverse Xyz	X / Y / Z: 20 m/min
Head Type	Forked head
B Axis Range	+/- 105°
C Axis Range	+/- 190°
Head Axes Speed	B, C: 30 rpm
Head Axes Torque Motor Clamping	7,000 Nm (5,163.2 lb-ft)
Table Structure	Fixed table
Table Size	5,200 x 2,000 mm (204.7 x 78.7 in)
Max Table Load	20,000 kg (44,092 lb)
Max Spindle Speed	18,000 rpm
Spindle Taper	HSK 63-A
Spindle Motor Power	30 kW (40.2 hp)
Spindle Torque	240 Nm (177.0 lb-ft)
Spindle Characteristic Speed	1,200 rpm
Tool Capacity	40
Max Tool Diameter (full magazine)	100 / 190 mm (3.9 / 7.5 in)
Max Tool Weight	8 kg (18 lb)
Max Tool Length	300 mm (11.8 in)
Positioning Accuracy	X / Y / Z: 0.007 mm (0.0003 in); B, C: 10 sec
Repeatability	X / Y / Z: 0.004 mm (0.0002 in); B, C: 5 sec
Machine Width	8,890 mm (350.0 in)
Machine Depth	15,000 mm (590.6 in)
Machine Height	6,370 mm (250.8 in)

Specifications sourced from huron.fr — verified 2026-10-04

Strengths & Limitations

Strengths

20,000 kg (44,092 lb) table load on a 5,200 x 2,000 mm table
1,500 mm of Z travel for tall workpieces
5,000 mm of X and 3,100 mm of Y under a fixed portal
Linear positioning stated at 0.007 mm despite the size
Five-axis forked head with 7,000 Nm of motor and clamping torque

Limitations

Rapids are 20 m/min on all axes
30 kW and 240 Nm is a modest spindle for 20,000 kg parts
Installation of 8,890 x 15,000 mm and 6,370 mm high
Tool weight limit of 8 kg excludes very large cutters

Best For

Very large moulds, dies and press tools Energy-sector castings and fabricated structures Aerospace assembly tooling and large jigs Five-side machining of parts up to 20,000 kg

Frequently Asked Questions

01 How big is the Huron KX 300 working envelope?

X travel is 5,000 mm, Y travel 3,100 mm and Z travel 1,500 mm. The fixed table is 5,200 x 2,000 mm and carries 20,000 kg (44,092 lb).

02 How fast are the axes of the KX 300?

Rapid feedrate is 20 m/min on X, Y and Z. The head axes B and C turn at 30 rpm. These are lower than on the smaller KX 200, which keeps 40 m/min on Y and Z.

03 What spindle does the KX 300 use?

The HSK 63-A spindle of the KX 100 family: 18,000 rpm maximum, 30 kW, 240 Nm and a characteristic speed of 1,200 rpm. Huron describes the series spindle as suited to roughing, finishing and high chip rates.

04 What building space does the KX 300 need?

Overall measurements with doors opened and conveyor are 8,890 mm in width, 15,000 mm in depth and 6,370 mm in height. Foundation, crane capacity and hall height all need to be settled with Huron before ordering.
