Johnford SDMC-11000x3200x1066-2H-5F

Q: How much does the Johnford SDMC-11000x3200x1066-2H-5F cost?

The price estimate for the Johnford SDMC-11000x3200x1066-2H-5F is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/johnford-sdmc-11000x3200x1066-2h-5f#price; the request is passed to Johnford or an authorised dealer.

Specs verified 2026-10-04 · johnford.com.tw Updated 2026-10-04

Image: johnford.com.tw, Johnford

Key Specifications

Spindle Taper

HSK-A100

Tool Capacity

60x2 Arm Type

x axis travel

11,000 mm (433 in)

y axis travel

3,200 mm (126 in)

z axis travel

1,066 mm (42 in)

distance spindle nose to table

300~1,366 mm (11.8~53.8 in)

How much does the Johnford SDMC-11000x3200x1066-2H-5F cost?

Price estimate

Uncertain

We do not have a price for the Johnford SDMC-11000x3200x1066-2H-5F that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

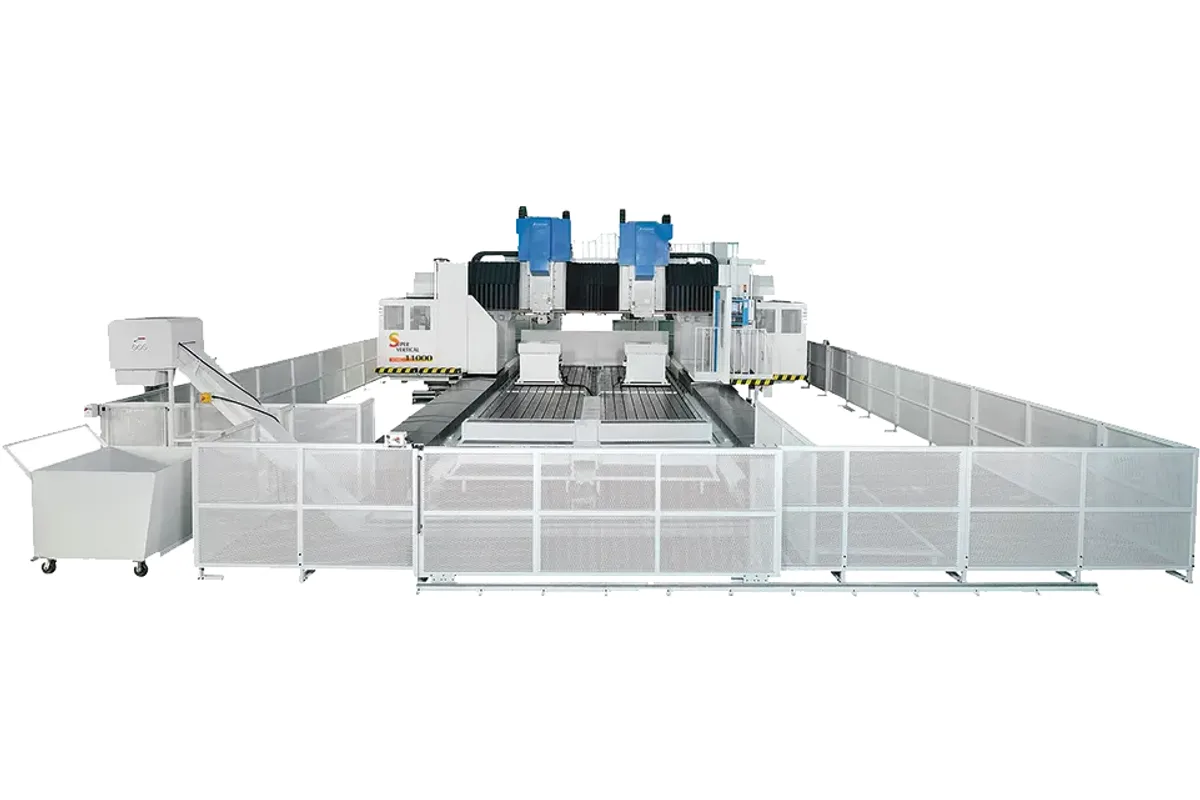

Two heads on one eleven-metre bed: the Johnford SDMC-11000x3200x1066-2H-5F is a twin-spindle portal machining center. The table labels its travels X1/X2, Y1/Y2 and Z1/Z2, 11,000 mm (433 in), 3,200 mm (126 in) and 1,066 mm (42 in), and its tool storage as 60x2 arm type, one 60-tool changer for each head.

The model code carries the rest. 2H is the maker's term for the twin spindle version, which its options list describes as having a dual-path control system, and 5F marks five-face machining. With 4,800 mm (189 in) between the columns, the machine can work two parts at once along the bed or bring both heads to one long part.

Tooling is HSK-A100, with a Ø90 mm (Ø3.5 in) spindle. Each tool may be Ø200 mm (Ø7.9 in), 500 mm (19.7 in) long and 25 kg (55 lb), heavier and longer than the SDMC-6000 models allow. X and Y rapid at 20 m/min (787 ipm) and Z at 10 m/min (394 ipm), which on an 11,000 mm axis saves real time between features.

One gap needs stating. The maker's table for this model has its unit labels shifted in the spindle rows, so the speed and motor power cannot be read with confidence and are left out of this page's table. The sister model SDMC-11000x3200x1400-2H-TU35 is listed with 4,500 rpm and 37 / 56 kW (49.6 / 75.1 hp); ask Johnford for the 5F figures.

The installation is 21,000 x 12,500 x 4,840 mm (826.8 x 492.1 x 190.6 in) and 100,800 kg (221,760 lb). The table load capacity is given as 3 t/m².

Full Specifications

Parameter	Value
X Axis Travel	11,000 mm (433 in)
Y Axis Travel	3,200 mm (126 in)
Z Axis Travel	1,066 mm (42 in)
Distance Spindle Nose to Table	300~1,366 mm (11.8~53.8 in)
Distance Between Columns	4,800 mm (189 in)
Spindle Taper	HSK-A100
Spindle Diameter	Ø90 mm (Ø3.5 in)
Rapid Traverse Xyz	20 / 20 / 10 m/min (787 / 787 / 394 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Shank	HSK-A100
Tool Selection	Bi-Direction Random Type,Shortest Path
Tool Capacity	60x2 Arm Type
Max Tool Diameter (full magazine)	Ø200 mm (Ø7.9 in)
Max Tool Length	500 mm (19.7 in)
Max Tool Weight	25 kg (55 lb)
Table Load Capacity	3 t/m²
Machine Length	21,000 mm (826.8 in)
Machine Width	12,500 mm (492.1 in)
Machine Height	4,840 mm (190.6 in)
Machine Weight	100,800 kg (221,760 lb)

Specifications sourced from johnford.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Twin heads, each with its own 60-tool arm type changer
11,000 mm (433 in) of X and 3,200 mm (126 in) of Y travel
20 / 20 / 10 m/min (787 / 787 / 394 ipm) rapids
HSK-A100 tools up to 500 mm (19.7 in) long and 25 kg (55 lb)
Linear scales on the X axes are a standard accessory

Limitations

Spindle speed and power cannot be taken from the maker's table for this model
Table load of 3 t/m², lower than the 5,000 kg/m² (1,023 lb/ft²) of the SDMC-6000x2800x800
Footprint of 21,000 x 12,500 mm (826.8 x 492.1 in)
100,800 kg (221,760 lb) to transport, erect and found

Best For

Long structural parts machined on five faces Two identical parts cut at the same time by the two heads Rail, energy and aerospace components up to 11,000 mm long

Frequently Asked Questions

01 What does 2H-5F mean in SDMC-11000x3200x1066-2H-5F?

2H is Johnford's designation for a twin spindle machine; its options list names 'Twin spindle-2H with dual-path control system'. 5F stands for five-face machining. The table accordingly gives X1/X2, Y1/Y2 and Z1/Z2 travels and 60x2 tools.

02 What are the travels of the SDMC-11000x3200x1066-2H-5F?

X 11,000 mm (433 in), Y 3,200 mm (126 in), Z 1,066 mm (42 in). Spindle nose to table distance is 300~1,366 mm (11.8~53.8 in) and the distance between columns is 4,800 mm (189 in).

03 Why does this page not list a spindle speed for the SDMC-11000x3200x1066-2H-5F?

On the maker's page the units of the spindle rows are misplaced: the speed row is labelled in kW and the motor row has no unit. The values are left out here instead of being guessed. The taper, HSK-A100, and the Ø90 mm (Ø3.5 in) spindle diameter are stated clearly.

04 How does the SDMC-11000x3200x1066-2H-5F differ from the SDMC-11000x3200x1400-2H-TU35?

The SDMC-11000x3200x1400-2H-TU35 has 1,400 mm (55.1 in) of Z, B and C axis strokes of ±180° and 0 - 360°, a height of 5,830 mm (229.5 in) and weighs 131,000 kg (288,200 lb). The 5F model has 1,066 mm (42 in) of Z, is 4,840 mm (190.6 in) high and weighs 100,800 kg (221,760 lb).
