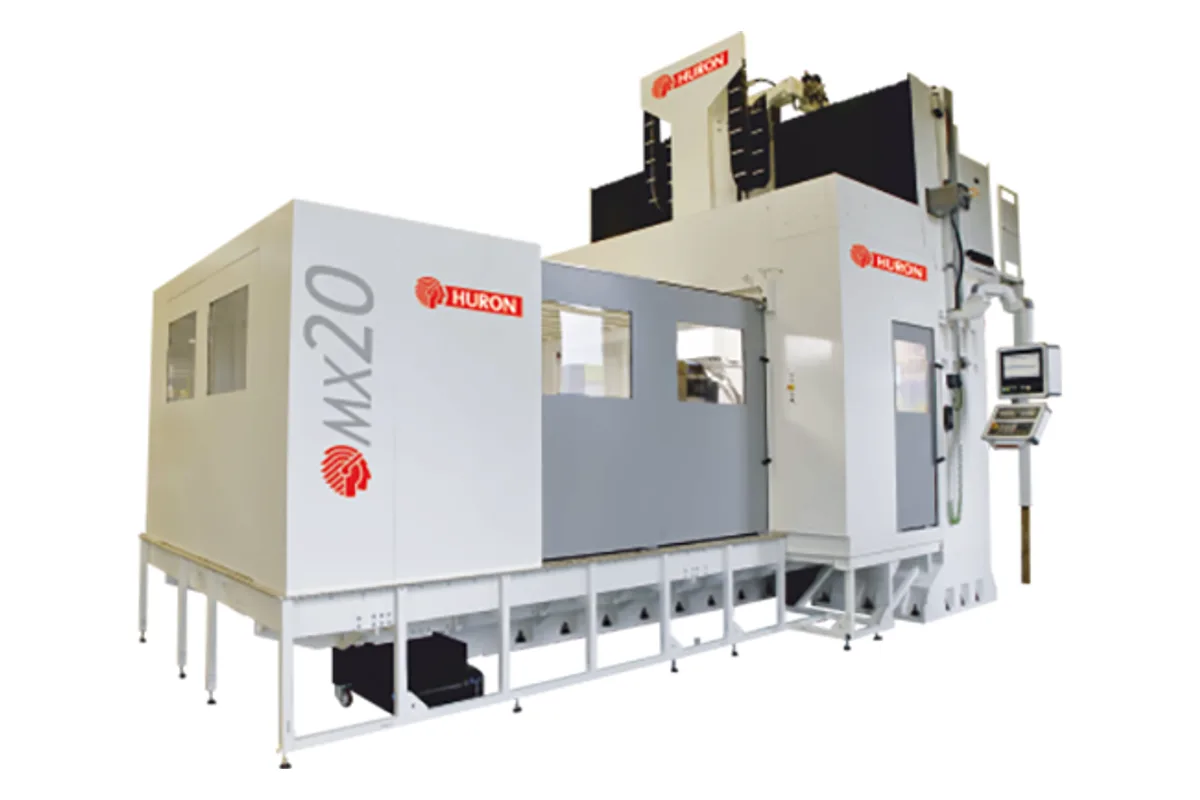

Huron MX 20 MT
Image: huron.fr, Huron
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Huron MX 20 MT cost?
Price estimate
We do not have a price for the Huron MX 20 MT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron MX 20 MT is a mill-turn centre with a 2,200 mm turning table. It carries 10,000 kg (22,046 lb), turns at up to 120 rpm, and sits inside travels of 3,000 x 3,100 x 1,600 mm (118.1 x 122.0 x 63.0 in). In effect it joins a vertical turning lathe and a five-axis machining centre in one frame.
Ten tonnes at 120 rpm is serious turning capacity. Parts in this class include large bearing rings, hydro and wind components, pump casings and pressure-vessel flanges. On separate machines each would need lifting and re-clocking between turning and milling, and at this weight every such move takes hours and risks the datum.
Unlike the smaller MT models, the MX 20 MT gives up little table load for its turning ability: 10,000 kg against the 12,000 kg of the MX 20 M, on a table of the same 2,200 mm diameter.
The cutting hardware is the HSK 100-A spindle with 43 kW and 415 Nm, limited to 10,000 rpm, in a universal head that tilts from -45° to +180°. Tools up to 650 mm long and 30 kg are changed from a 60-housing magazine. Linear rapids are 20 m/min. Huron lists the machine at 9,668 mm wide, 9,480 mm deep and 6,620 mm high without APC, and gives no APC figures.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 3,100 mm (122.0 in) |
| Z Axis Travel | 1,600 mm (63.0 in) |
| Rapid Traverse Xyz | 20 m/min |
| Head Type | Universal head |
| A Axis Range | -45° / +180° |
| A Axis Speed | 100 rpm |
| Table Type | Milling/Turning |
| Table Size | Ø 2,200 mm (Ø 86.6 in) |
| Max Table Load | 10,000 kg (22,046 lb) |
| C Axis Speed | 120 rpm |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | HSK 100-A |
| Spindle Motor Power | 43 kW (57.7 hp) |
| Spindle Torque | 415 Nm (306.1 lb-ft) |
| Spindle Characteristic Speed | 1,000 rpm |
| Tool Capacity | 60 |
| Max Tool Diameter (full magazine) | 120 mm (4.7 in) |
| Max Tool Weight | 30 kg (66 lb) |
| Max Tool Length | 650 mm (25.6 in) |
| Positioning Accuracy | X / Y / Z: 0.007 mm (0.0003 in); A, C: 10 sec |
| Repeatability | X / Y / Z: 0.004 mm (0.0002 in); A, C: 5 sec |
| Machine Width | 9,668 mm (380.6 in) without APC |
| Machine Depth | 9,480 mm (373.2 in) without APC |
| Machine Height | 6,620 mm (260.6 in) without APC |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,200 mm turning table at up to 120 rpm
- 10,000 kg (22,046 lb) table load in mill-turn form
- 1,600 mm of Z travel for tall turned parts
- Turning, boring and five-axis milling on one datum
- 10,000 kg table capacity, against 12,000 kg on the milling-only MX 20 M
Limitations
- Linear rapids of 20 m/min
- Tool diameter is limited to 120 mm
- 43 kW of spindle power for very large workpieces
- Overall height of 6,620 mm and no published APC dimensions
Best For
Frequently Asked Questions
01
The milling/turning table is 2,200 mm in diameter, carries 10,000 kg (22,046 lb) and rotates at up to 120 rpm. Huron's table does not list a separate swing figure.
02
Both have 3,000 x 3,100 x 1,600 mm travels, the same spindle and a 2,200 mm table. The MX 20 M carries 12,000 kg with a C axis at 7 rpm. The MX 20 MT carries 10,000 kg and turns at 120 rpm.
03
HSK 100-A with a maximum of 10,000 rpm, 43 kW and 415 Nm, and a characteristic speed of 1,000 rpm. It sits in a universal head with an integrated torque motor.
04
Positioning of 0.007 mm on X, Y and Z and 10 sec on A and C, with repeatability of 0.004 mm and 5 sec. The same figures are given across the universal-head MX range.
