Fidia UHE 1600
Image: fidia.it, Fidia
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Fidia UHE 1600 cost?
Price estimate
We do not have a price for the Fidia UHE 1600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

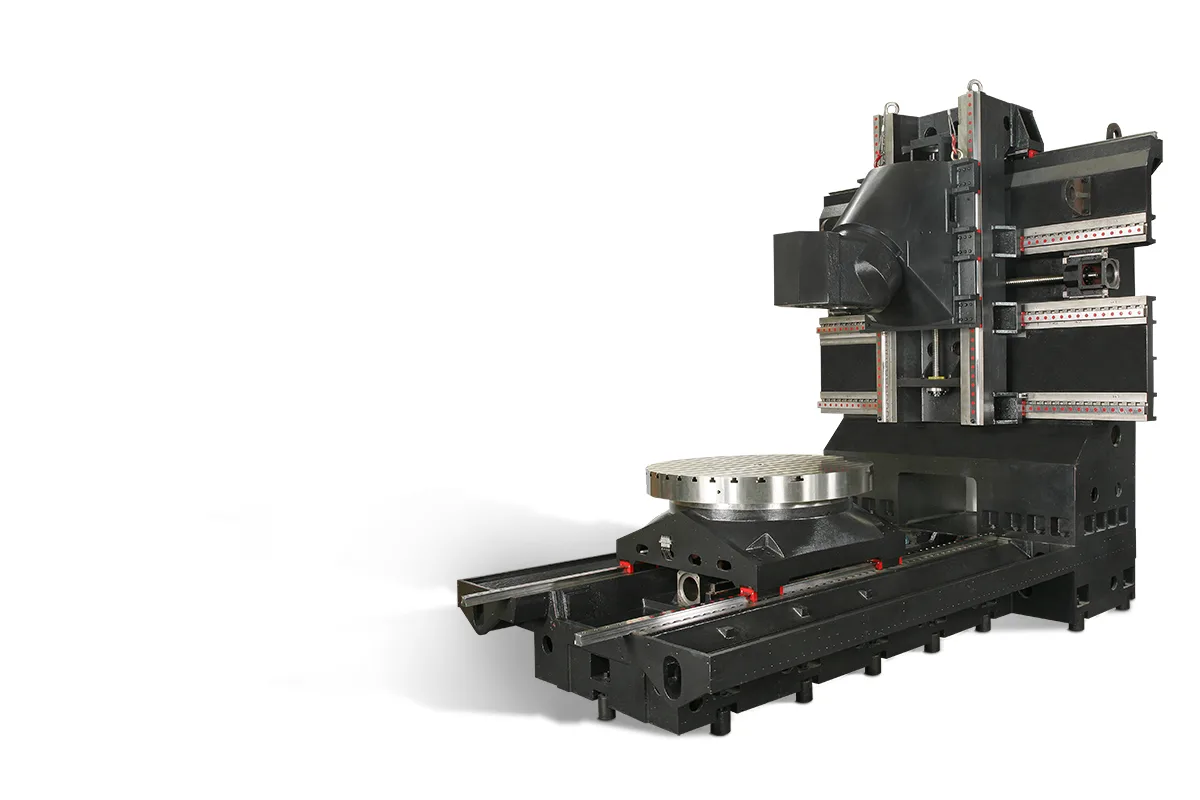

The Fidia UHE 1600 is the heavy-duty model of Fidia's 5-axis universal machining centres, with travels of 1,620 mm (63.8 in) in X, 1,260 mm (49.6 in) in Y and 1,050 mm (41.3 in) in Z. Its rotary table is Ø 1,400 mm (55.1 in) and takes 4,000 kg (8,818 lb).
Where the UHE 1000 uses a worm gear, this table is driven by a torque motor and turns at up to 60 rpm, with a clamping torque of 3,430 Nm. The swivelling head, also on a torque motor, covers 0° ÷ 180° in 0.001° steps. Fidia describes the layout as a combination of a bridge type machine and a travelling column machine, with a 4 linear guideways system on the X axis for heavy-duty cutting.
The spindle is sized for heavy cuts. The standard motor spindle runs at 8,000 rpm on HSK 100A or BT#50 with 36/45 kW - 340/418 Nm (S1/S6), on Ø 100mm ceramic bearings. An optional HSK 100A electro spindle reaches 15,000 rpm. The 60-position magazine takes tools up to 180 mm / 400 mm and 10 kg.
Maximum feed is 24 m/min on the linear axes, with 55/55/63 mm ballscrews and 55/55/55 mm roller guides. Floor space is 7,000 x 5,500 x 4,500 mm (L x W x H) and the power supply required is 20 kVA. Linear scales and direct rotary encoders are in the basic machine.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,620 mm (63.8 in) |
| Y Axis Travel | 1,260 mm (49.6 in) |
| Z Axis Travel | 1,050 mm (41.3 in) |
| Max Feed | 24 m/min |
| Table Size | Ø 1,400 mm (55.1 in) |
| Table Drive | Torque motor |
| Max Table Load | 4,000 kg (8,818 lb) |
| Table Minimum Increment | 0.001° |
| Table Clamping Torque | 3,430 Nm |
| Table Max Feed | 60 rpm |
| Head Travel | 0° ÷ 180° |
| Head Indexing Increment | 0.001° |
| Head Max Feed | 12 rpm |
| Spindle Power Torque | 36/45 kW - 340/418 Nm (S1/S6) |
| Spindle Taper | HSK 100A or BT#50 |
| Max Spindle Speed | 8,000 rpm (optional 15,000 rpm HSK 100A) |
| Tool Capacity | 60 positions |
| Tool Change Time | 3 sec (tool to tool) |
| Max Tool Size | 180 mm / 400 mm (diameter/length) |
| Max Tool Weight | 10 kg |
| Ballscrews | 55/55/63 mm diameter, 16/12/12 mm pitch (X/Y/Z) |
| Ballscrew Precision Class | C3 - mm/300mm : 0.008 |
| Linear Roller Guide Width | 55/55/55 mm (X/Y/Z) |
| Distance Floor to Table Top | 1,000 mm (39.4 in) |
| Power Requirement | 20 kVA |
| Machine Dimensions | 7,000 x 5,500 x 4,500 mm (L x W x H) |
Specifications sourced from fidia.it — verified 2026-10-05
Strengths & Limitations
Strengths
- Torque motor table of Ø 1,400 mm (55.1 in) carrying 4,000 kg (8,818 lb)
- Spindle with 36/45 kW - 340/418 Nm (S1/S6) on HSK 100A or BT#50
- 1,050 mm (41.3 in) of Z travel
- 60-position magazine for tools up to 180 mm / 400 mm and 10 kg
- 4 linear guideways on the X axis for heavy-duty cutting
Limitations
- Standard spindle speed is 8,000 rpm; 15,000 rpm is an option
- Floor space of 7,000 x 5,500 x 4,500 mm (L x W x H)
- The head swivels 0° ÷ 180° only, so access relies on rotating the table
- Maximum feed is 24 m/min on the linear axes
Best For
Frequently Asked Questions
01
Linear travels are 1,620 mm (63.8 in) in X, 1,260 mm (49.6 in) in Y and 1,050 mm (41.3 in) in Z. The rotary table is Ø 1,400 mm (55.1 in) with a maximum load of 4,000 kg (8,818 lb).
02
Size, table drive and spindle. The UHE 1000 has a 1,000 x 800 mm (39.4 x 31.5 in) worm gear table for 1,500 kg (3,307 lb) and an 18,000 rpm HSK 63A spindle. This model has a torque motor table for 4,000 kg (8,818 lb) and an 8,000 rpm HSK 100A or BT#50 spindle.
03
The standard spindle is rated 36/45 kW - 340/418 Nm (S1/S6) at up to 8,000 rpm. The optional electro spindle runs at 15,000 rpm on HSK 100A with 20/26 Kw and 290/317 Nm.
04
The ATC has 60 positions and a tool to tool time of 3 sec. Maximum tool size is 180 mm / 400 mm (diameter/length) and maximum tool weight is 10 kg; Fidia notes that these may change according to the spindle type.
