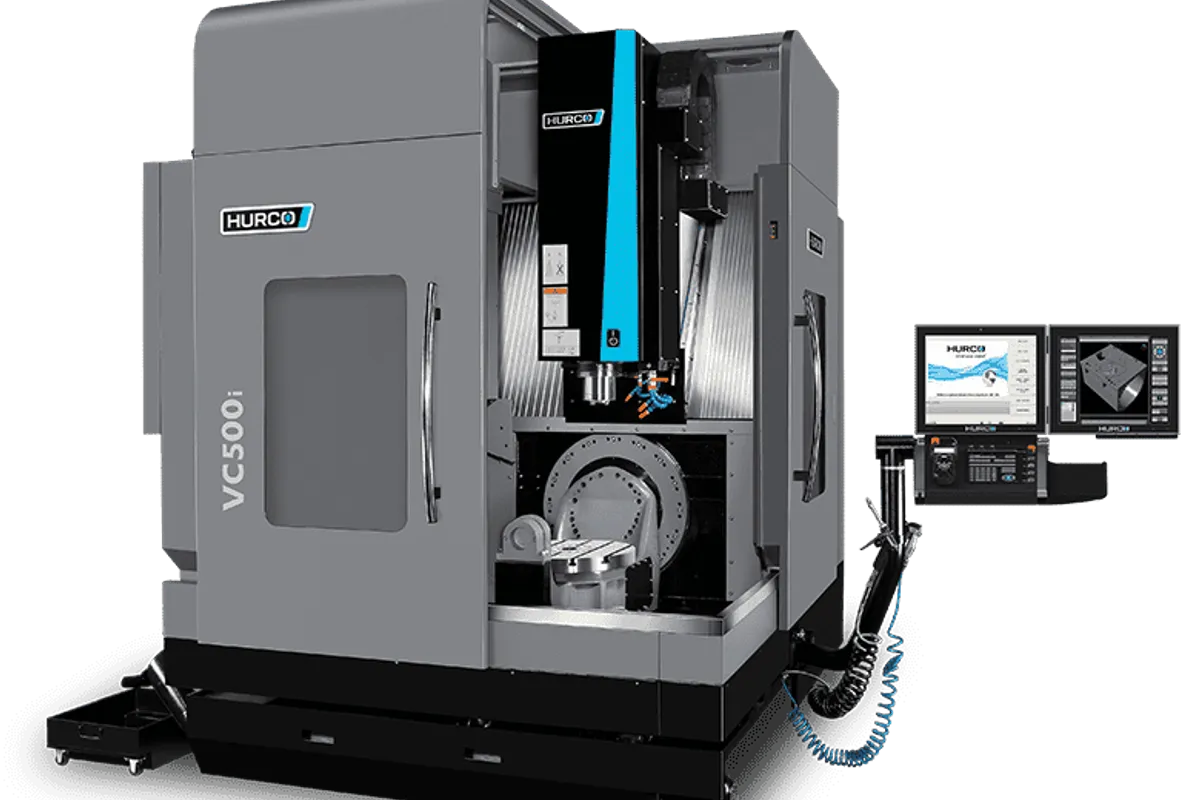

Hurco VC500i Full 5-Axis CNC Machine Series
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
models in series
travel x range
travel y range
Overview
The Hurco VC500i Full 5-Axis CNC Machine Series represents Hurco's dedicated 5-axis platform line built around the proven VC500i architecture. This series encompasses the full family of VC-style machines — purpose-built 5-axis machining centers with B/C axis configurations that prioritize part access, rigidity, and simultaneous contouring over linear travel range.
Unlike Hurco's VMX trunnion and SRT swivel-head machines that add 5-axis capability to existing 3-axis platforms, the VC series was designed from the ground up as a 5-axis machine. The architecture places the B-axis tilt and C-axis rotation in a compact, rigid configuration that delivers exceptional accuracy during simultaneous 5-axis interpolation. The B-axis range of +/-110 degrees exceeds the trunnion models' +30/-110 degrees, providing superior angular access to steep walls, undercuts, and complex contoured surfaces.
The series includes the VC500i with its 500 mm table and the larger VC600i and VCX600i with 600 mm tables. All share the B/C axis design philosophy and WinMax control with 3D DXF import for conversational 5-axis programming. The VC platform is particularly strong in precision applications — medical devices, aerospace components, impellers, and mold inserts — where simultaneous 5-axis contouring quality matters more than travel envelope.
Hurco's WinMax control integrates RTCP (Rotational Tool Center Point) compensation, which is critical for accurate 5-axis machining. The conversational programming system extends to 5-axis operations, allowing operators to program complex parts at the control without CAM software for many job types.
The VC series machines are built heavy for their travel range, with weight-to-envelope ratios that emphasize rigidity over compactness. This design choice delivers measurable benefits in surface finish and dimensional accuracy during aggressive 5-axis cutting.
Pricing across the VC series ranges from $200,000 to $350,000 new depending on model and configuration. The series competes with dedicated 5-axis platforms from Hermle, Grob, and Matsuura.
Full Specifications
| Parameter | Value |
|---|---|
| Models In Series | VC500i, VC600i, VCX600i |
| Travel X Range | 520 - 820 mm (20.5 - 32.3 in) |
| Travel Y Range | 450 - 550 mm (17.7 - 21.7 in) |
| Travel Z Range | 400 - 500 mm (15.8 - 19.7 in) |
| B Axis Range | +/- 110° |
| C Axis Range | 360° |
| Max Spindle Speed | 12,000 RPM |
| Spindle Taper | CAT 40 / Big Plus |
| Spindle Power Range | 11.5 - 16 kW (15.4 - 21.4 hp) peak |
| Table Diameter Range | 500 - 600 mm (19.7 - 23.6 in) |
| Max Table Load Range | 250 - 770 kg (550 - 1,700 lb) |
| Tool Capacity | 40 (arm-type ATC) |
| CNC Control | Hurco WinMax |
Specifications sourced from info.hurco.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Purpose-built 5-axis architecture delivers superior accuracy compared to 5-axis conversions of 3-axis platforms
- +/-110 degree B-axis range provides the widest angular access in Hurco's 5-axis lineup
- Heavy weight-to-envelope ratio maximizes rigidity for better surface finish during simultaneous 5-axis contouring
- B/C axis configuration provides excellent chip evacuation with the workpiece tilting downward
- WinMax conversational 5-axis programming extends Hurco's shop-floor programming advantage to dedicated 5-axis
- Multiple models (500i, 600i, VCX600i) provide scalability within the same platform architecture
Limitations
- Compact linear travels limit the series to small-to-medium parts that fit within the table diameter
- 12,000 RPM spindle cap across the series limits high-speed aluminum finishing compared to 15-20K RPM competitors
- Large footprint relative to travel envelope means these machines take more floor space than their work envelope suggests
- WinMax control is proprietary — operator skills don't transfer to Fanuc, Siemens, or Heidenhain platforms
- Smaller installed base than competing 5-axis platforms affects resale value and parts availability
Best For
Frequently Asked Questions
01
Pricing ranges from $200,000 for the base VC500i to $350,000 for a fully configured VCX600i. The VC600i sits in the middle at $250,000-$320,000. Used machines across the series sell for $110,000-$250,000 depending on model, age, and condition.
02
The VC500i has a 500 mm table with compact travels (520x450x400 mm). The VC600i and VCX600i have 600 mm tables with larger travels (820x550x500 mm). The VCX600i adds features like higher spindle power (16 kW vs 15 kW). All share the B/C axis configuration and +/-110 degree B-axis range.
03
The VC series is purpose-built for 5-axis with wider B-axis range (+/-110 vs +30/-110 degrees) and heavier construction relative to travel. VMX trunnion machines offer longer linear travels for mixed 3-axis and 5-axis work. Choose VC for dedicated 5-axis production, VMX for versatile job shop use.
04
The VC series targets a lower price point than Hermle ($300-600K) and Grob ($400-700K). It can't match their thermal compensation and build quality, but for shops that don't need European-grade precision, the VC series delivers capable 5-axis at $100-300K less, with the added benefit of WinMax conversational programming.
05
The VC series excels at both. The rigid construction and heavy weight make it suitable for production environments where consistency matters. The WinMax conversational programming also makes it fast for prototyping and short-run work. Many shops use VC machines as dedicated 5-axis production cells while VMX machines handle flexible job shop work.
