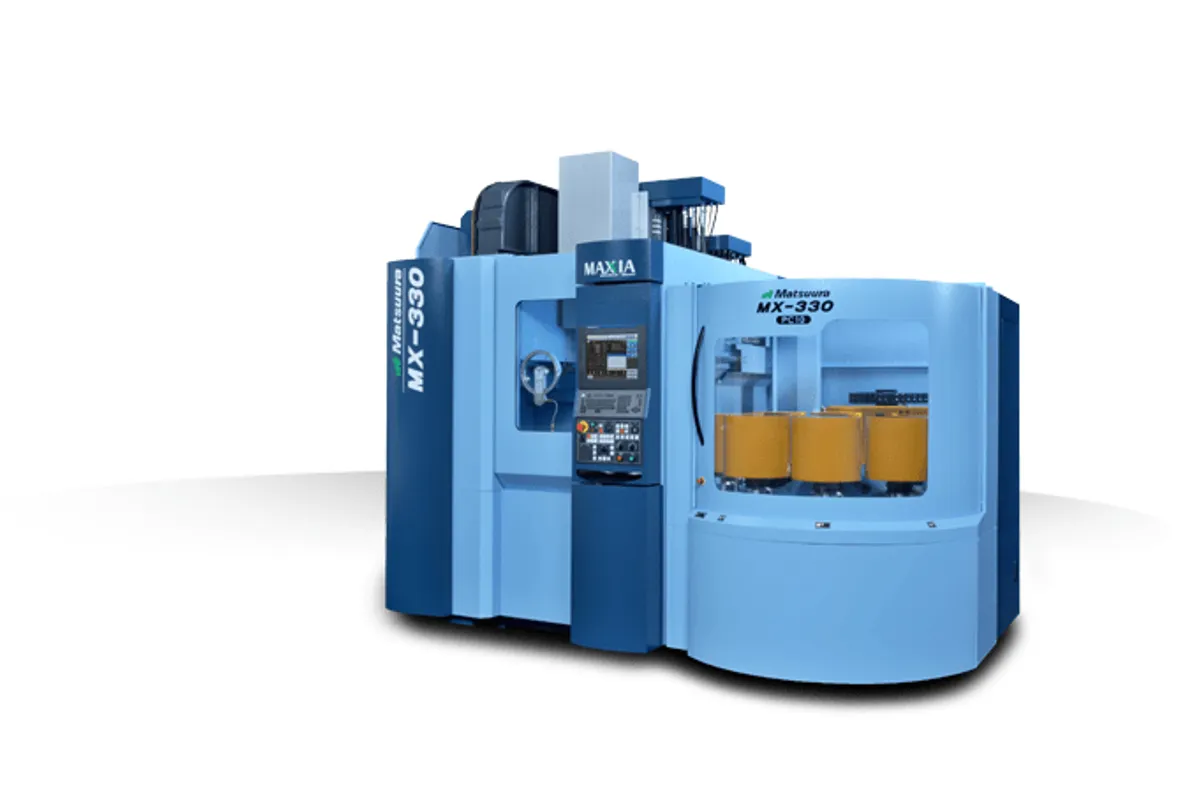

Matsuura MX-330 PC10

$250,000 - $375,000 Updated 2026-03-19

Key Specifications

X Travel

450 mm (17.7 in)

Y Travel

400 mm (15.7 in)

Z Travel

400 mm (15.7 in)

Max Spindle

20,000 RPM

Spindle Taper

BT30

Tool Capacity

60 standard (90 optional)

Overview

The Matsuura MX-330 PC10 takes the ultra-compact MX-330 trunnion-style 5-axis platform and pairs it with a 10-pallet tower changer, creating one of the highest-capacity automated 5-axis cells available in a sub-400mm workpiece class. If the PC4 version turns the MX-330 into a capable production cell, the PC10 turns it into a genuine lights-out factory-within-a-factory for small precision parts. Ten pallets mean ten different setups running continuously without operator intervention — a level of automation density that few machines in this size class can match.

Axis travel measures 450 x 400 x 400 mm (17.7 x 15.7 x 15.7 in) on X/Y/Z. The A-axis tilts from +10 to -125 degrees and the C-axis rotates continuously through 360 degrees. The standard spindle is a BT30 at 20,000 RPM with 5.5/7.5 kW (7.4/10 hp), optimized for high-speed finishing of small precision parts in aluminum, brass, plastics, and softer steels. With 10 pallets cycling through the machine, the operator can spend an entire shift loading and unloading pallets while the spindle never stops cutting.

The tool magazine holds 60 tools standard with a 90-tool option. Tool-to-tool change time is 0.9 seconds — among the fastest in any 5-axis machine at any size. The G-Tech 30i control (FANUC 30i-B5 based) provides Matsuura's signature touchscreen experience, and CAMplete TruePath comes standard for crash-free G-code verification. The MX-330 PC10 weighs approximately 6,500 kg (14,330 lb) with a footprint that remains remarkably compact for a 10-pallet cell. Matsuura's MIMS cell controller handles pallet scheduling, tool life management, and production reporting across the full pallet pool.

The machine competes in a niche where few players operate: ultra-compact, high-pallet-count 5-axis automation. The closest competitors are multi-pallet configurations from Kern, Willemin-Macodel, and DMG Mori's smaller DMU eVo machines with PH Cell automation. For shops producing high volumes of small, complex parts — dental components, watch parts, miniature aerospace fittings — the MX-330 PC10 delivers automation density that is difficult to match in this footprint.

Full Specifications

Parameter	Value
X-Axis Travel	450 mm (17.7 in)
Y-Axis Travel	400 mm (15.7 in)
Z-Axis Travel	400 mm (15.7 in)
A Axis Range	+10° to -125°
C Axis Range	360° (continuous)
Max Spindle Speed	20,000 RPM
Spindle Taper	BT30
Spindle Motor Power	5.5 / 7.5 kW (7.4 / 10 hp)
Tool Capacity	60 standard (90 optional)
Pallet Capacity	10 pallets
Table Diameter	250 mm (9.8 in)
Max Workpiece Size	330 mm dia x 250 mm H (13.0 x 9.8 in)
Table Load Capacity	60 kg (132 lb) per pallet
Rapid Traverse Xyz	40 m/min (1,575 ipm)
Tool Change Time	0.9 sec (tool-to-tool)
Pallet Change Time	< 15 sec
Machine Weight	6,500 kg (14,330 lb)
Floor Space Required	3,200 x 2,100 mm
CNC Control	Matsuura G-Tech 30i (FANUC 30i-B5 based, touch screen)
Mx Series	MAM72 Series
Mx 330mx 330 Pc10mx 420 Pc10mx 520mx 520 Pc4mx 520tmx 850mx 850 Pc4	MAM72-35VMAM72-42VMAM72-52VMAM72-70VMAM72-100H
Max Work Sizemm	Ø330×H320 \| (Ø12.99×H12.60) \| Ø420×H320 \| (Ø16.54×H12.60) *with conditions \| PC10:Ø330×H300 \| (Ø12.99×H11.81)
Spindle Speedrpm	15,000:BT40Standard\| 15,000PowerUp:BT40Option\| 20,000:BT40Option
Travel Mm	435/465/560 \| (17.13/18.31/22.05)
Industriesautomotive And High Performance Die Mold Medical	Technology5-Axis Machining Centers ›

Specifications sourced from matsuurausa.com — verified 2026-03-28

Strengths & Limitations

Strengths

10-pallet tower system provides exceptional automation density — 2.5x the pallet capacity of the PC4 in a marginally larger footprint
0.9-second tool-to-tool change is among the fastest in the industry, maximizing spindle uptime across all 10 pallets
20,000 RPM BT30 spindle excels at high-speed finishing of small precision components in aluminum, brass, and softer materials
MIMS cell controller handles scheduling, tool life, and production reporting across the full 10-pallet pool for true lights-out operation
Ultra-compact cell footprint relative to automation capacity — more pallets per square foot than almost any competing solution
CAMplete TruePath standard and G-Tech 30i control minimize operator training time and eliminate the need for third-party simulation software

Limitations

BT30 taper limits this to light-duty precision work — steel roughing and heavy cutting are off the table entirely
60 kg per-pallet load capacity is restrictive and limits fixture complexity, especially when running 10 different setups
330 mm max workpiece diameter means this machine only serves a narrow slice of the 5-axis market
7.5 kW spindle power is modest even for aluminum — high material removal rates will require conservative strategies

Best For

Dental and medical device manufacturers running high volumes of small implant components across multiple part families Watch and jewelry manufacturers producing complex precision parts in precious metals, titanium, and aluminum Electronics and connector manufacturers machining miniature housings and enclosures requiring 5-axis geometry High-mix prototype shops that need maximum job variety running unattended across 10 different setups overnight Aerospace fastener and fitting manufacturers producing families of small, complex components at volume

Frequently Asked Questions

01 What does a Matsuura MX-330 PC10 cost?

New MX-330 PC10 pricing typically falls between $250,000 and $375,000 depending on tool magazine configuration and options. The 10-pallet version commands a meaningful premium over the PC4 (4-pallet) variant, which runs $200,000-$300,000. The additional cost is justified by the significantly higher automation capacity and unattended runtime.

02 How does the MX-330 PC10 compare to the MX-330 PC4?

The PC10 adds six more pallets to the same base machine, increasing unattended capacity by 2.5x. The machining envelope, spindle, and tool magazine are identical. The PC10 has a slightly larger footprint and higher machine weight to accommodate the taller pallet tower. If your production volume justifies loading 10 different setups, the PC10 delivers dramatically better spindle utilization than the PC4.

03 Can one operator manage a MX-330 PC10 cell?

Yes, that is the intended workflow. One operator loads and unloads pallets at the front of the machine while the spindle continues cutting on the active pallet. With 10 pallets and typical cycle times of 15-60 minutes per pallet, the operator has ample time to service the cell and potentially manage a second machine. The MIMS controller prioritizes pallets and alerts the operator when intervention is needed.

04 What materials can the MX-330 PC10 cut effectively?

The BT30 spindle at 20,000 RPM is optimized for aluminum, brass, copper, plastics, and softer steels in light finishing cuts. It handles titanium in light finishing applications typical of dental and small medical components. It is not suitable for heavy roughing in steel, Inconel, or other hard metals. If you need to cut harder materials aggressively, look at the MX-520 or MX-850 with their BT40/BT50 spindles.
