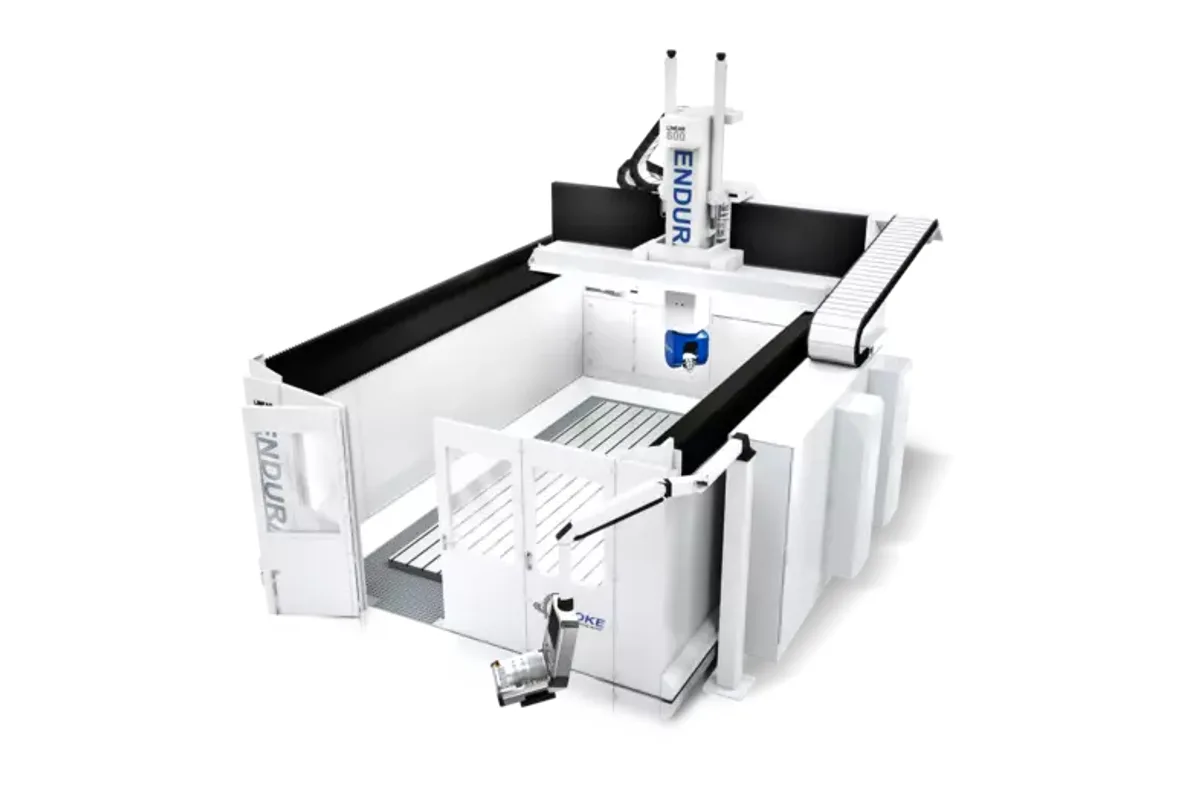

Fooke ENDURA 600LINEAR
Image: fooke-machines.com, Fooke
Key Specifications
x axis travel
y axis travel
z axis travel
feed rate x
feed rate y
feed rate z
How much does the Fooke ENDURA 600LINEAR cost?
Price estimate
We do not have a price for the Fooke ENDURA 600LINEAR that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fooke ENDURA 600LINEAR is a walk-in gantry milling machine for full-size models and large light-material parts. Its overhead portal travels 5,000 - 30,000 mm in X, with 2,800 / 3,500 mm of Y and 1,500 / 2,000 / 2,300 mm of Z. Fooke calls it the entry model for 1:1 processing in vehicle design, which is the classic use: a complete car body in clay or block material, milled from all sides in one set-up.
The machine room is at floor level. Parts arrive by crane or forklift, or on a model plate, and nothing has to be lifted onto a table. Fooke also names aviation components and customised clamping and suction systems, so the same layout serves for trimming large CFRP/GFRP parts.
Unlike the compact ENDURA machines, the X axis here is a rack-and-pinion gantry drive. A rack can be made as long as the hall allows, which is how the X travel reaches its upper limit. Y and Z keep water-cooled linear motors, and the rotary axes have torque motors. Feed rates are 5 - 80,000 mm/min in all three linear axes, with acceleration up to 3.0 m/sec².
The accuracy rows reflect the long axis: 0.030 mm in X, 0.020 mm in Y and 0.015 mm in Z, with a position scatter of 0.015 mm in X and 0.010 mm in Y and Z.
Four milling heads are listed, 4, 9, 11 and 15. Milling head 9 is the one with an integrated suction unit in Fooke's head brochure, with HSK-A63 spindles of 39 kW at 24,000 rpm and 32 Nm, or 63 kW at 30,000 rpm and 31 Nm. Steel and cast iron are not in this model's material list.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 5,000 - 30,000 mm (196.9 - 1,181.1 in) |
| Y Axis Travel | 2,800 / 3,500 mm (110.2 / 137.8 in) |
| Z Axis Travel | 1,500 / 2,000 / 2,300 mm (59.1 / 78.7 / 90.6 in) |
| Feed Rate X | 5 - 80,000 mm/min |
| Feed Rate Y | 5 - 80,000 mm/min |
| Feed Rate Z | 5 - 80,000 mm/min |
| Acceleration | up to 3.0 m/sec² |
| Positioning Accuracy X | 0.030 mm |
| Positioning Accuracy Y | 0.020 mm |
| Positioning Accuracy Z | 0.015 mm |
| Position Scatter X | 0.015 mm |
| Position Scatter Y | 0.010 mm |
| Position Scatter Z | 0.010 mm |
| Milling Heads | Milling head 4, Milling head 9, Milling head 11, Milling head 15 |
| Milling Head 4 Spindles | HSK-A63, 42 kW, 24,000 rpm, 67 Nm; or HSK-A63, 63 kW, 30,000 rpm, 31 Nm |
| Milling Head 9 Spindles | HSK-A63, 39 kW, 24,000 rpm, 32 Nm; or HSK-A63, 63 kW, 30,000 rpm, 31 Nm |
| Milling Head 11 Spindles | HSK-A63, 20 kW, 30,000 rpm, 21.5 Nm; or HSK-A63, 34 kW, 24,000 rpm, 40 Nm |
| Milling Head Rotary Axes | C-axis 550° (+/-275°), A-axis 220° (+/-110°) (milling heads 4, 9, 11) |
Specifications sourced from fooke-machines.com — verified 2026-10-05
Strengths & Limitations
Strengths
- X travel configurable from 5,000 - 30,000 mm on a rack-and-pinion gantry drive
- Machine room accessible at ground level for loading by crane or forklift
- Feed rates of 5 - 80,000 mm/min in X, Y and Z
- Z travel options up to 2,300 mm (90.6 in) for tall models
- Four milling heads listed, including milling head 9 with 39 kW at 24,000 rpm or 63 kW at 30,000 rpm
Limitations
- X position accuracy is 0.030 mm, the loosest of the three axes
- Acceleration is up to 3.0 m/sec², below the up to 5 m/sec² of the Fooke ENDURA 900LINEAR
- Material range stops at aluminum; steel and cast iron are not listed
- Y is limited to 2,800 / 3,500 mm; the Fooke ENDURA 900LINEAR goes wider
Best For
Frequently Asked Questions
01
The X-axis travel is listed as 5,000 - 30,000 mm, and Fooke offers individual axis length configuration. Y is 2,800 / 3,500 mm and Z is 1,500 / 2,000 / 2,300 mm.
02
Fooke states that the X axis is implemented as a rack-and-pinion gantry drive to allow long travel distances with stable guidance. The Y and Z axes are equipped with water-cooled linear motors, and the C and A axes with torque motors.
03
Position accuracy is 0.030 mm in X, 0.020 mm in Y and 0.015 mm in Z. Position scatter is 0.015 mm in X and 0.010 mm in Y and Z. Direct measuring systems are fitted in all axes.
04
The material range is plastic, CFRP/GFRP, model building block material and aluminum. Listed heads are 4, 9, 11 and 15. Milling head 11, for example, has HSK-A63 spindles with 20 kW, 30,000 rpm and 21.5 Nm, or 34 kW, 24,000 rpm and 40 Nm.
