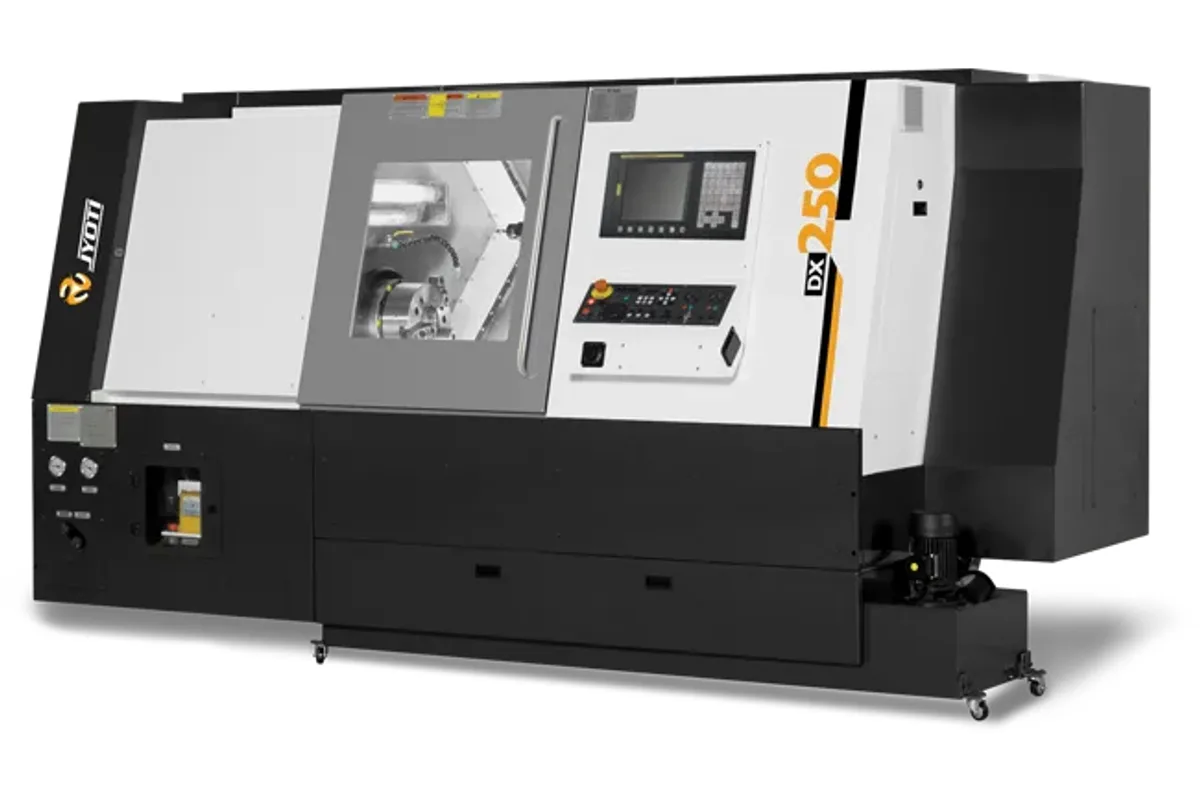

Huron DX 250-700
Image: huron.fr, Huron
Key Specifications
Max Turn Length
Accuracy
Repeatability
swing over bed
standard turning diameter
max turning diameter
How much does the Huron DX 250-700 cost?
Price estimate
We do not have a price for the Huron DX 250-700 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron DX 250-700 is a 700 mm (27.6 in) turning centre built for heavier cutting than its capacity alone suggests. It weighs 5,750 kg (12,676 lb), which is nearly half as much again as the short DX 250-500, and turns up to 480 mm in diameter.
Mass and bed design are the story. Huron describes the DX 250/350 series as a monoblock structure with a 45° slant and wide roller-type linear guideways, meant to reduce vibration and extend tool life in hard-part machining. Swing over the bed is 600 mm.
The spindle is geared to torque more than speed. The range is 50-2,500 rpm on an A2-8 nose, with an 80 mm bore and 65 mm of bar capacity. Siemens motor power is 15.6/12 kW and Fanuc 15/11 kW. With a top speed of 2,500 rpm, small-diameter finishing at high surface speed is not this machine's strength.
Tailstock support comes from a 100 mm hydraulic quill with 120 mm of stroke and 500 kgf of thrust. X travel is 250 mm and both axes rapid at 24 m/min. The 8-station servo turret takes 25 x 25 mm tools. Stated positioning is 0.01 mm and repeatability 0.005 mm. The machine is 3,080 mm long, 1,890 mm wide and 1,900 mm high.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 600 mm (23.6 in) |
| Standard Turning Diameter | 300 mm (11.8 in) |
| Max Turning Diameter | 480 mm (18.9 in) |
| Max Turning Length | 700 mm (27.6 in) |
| X Axis Travel | 250 mm (9.8 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Rapid Traverse Xz | 24 m/min |
| Spindle Power Siemens | 15.6/12 kW (20.9/16.1 hp) |
| Spindle Power Fanuc | 15/11 kW (20.1/14.8 hp) |
| Spindle Speed Range | 50-2,500 rpm |
| Spindle Bore | 80 mm (3.1 in) |
| Spindle Nose | A2-8 |
| Bar Capacity | 65 mm (2.6 in) |
| Turret Stations | 8 |
| Max Boring Bar Diameter | 40 mm (1.6 in) |
| Tool Shank Size | 25 x 25 mm (1.0 x 1.0 in) |
| Tailstock Quill Diameter | 100 mm (3.9 in) |
| Tailstock Quill Stroke | 120 mm (4.7 in) |
| Tailstock Thrust | 500 kgf (max.) |
| Positioning Accuracy | 0.01 mm (0.0004 in) |
| Repeatability | 0.005 mm (0.0002 in) |
| Machine Weight | 5,750 kg (12,676 lb) |
| Machine Length | 3,080 mm (121.3 in) |
| Machine Width | 1,890 mm (74.4 in) |
| Machine Height | 1,900 mm (74.8 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 5,750 kg (12,676 lb) machine for a 700 mm turning length
- 600 mm swing over bed and 480 mm turning diameter
- 100 mm tailstock quill with 500 kgf of thrust
- Roller-type linear guideways on a 45° slant bed
- 15.6/12 kW with the Siemens spindle motor
Limitations
- Spindle speed range ends at 2,500 rpm
- Bar capacity is 65 mm, less than the 75 mm of the DX 250-500
- Positioning is stated as 0.01 mm
- Turret has 8 stations for 25 x 25 mm tools
Best For
Frequently Asked Questions
01
Swing over bed is 600 mm, standard turning diameter 300 mm, maximum turning diameter 480 mm and maximum turning length 700 mm. X travel is 250 mm and Z travel 700 mm.
02
A2-8 nose, 80 mm bore and 65 mm bar capacity, with a speed range of 50-2,500 rpm. Motor power is 15.6/12 kW with Siemens and 15/11 kW with Fanuc.
03
Yes, the DX 250-1000, which has 1,000 mm of turning length and Z travel with the same spindle, swing and turret, and weighs 6,000 kg.
04
Approximately 5,750 kg (12,676 lb). Approximate dimensions are 3,080 mm long, 1,890 mm wide and 1,900 mm high. Huron refers buyers to the detailed machine layout for exact figures.
More from Huron
Other CNC Lathes / Turning Centers
Doosan Puma 3100B

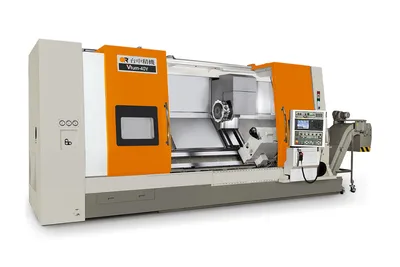

Victor Taichung Vturn-40/220

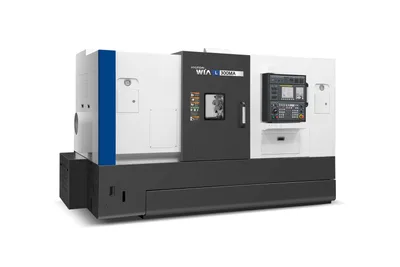

Hyundai WIA L300A
