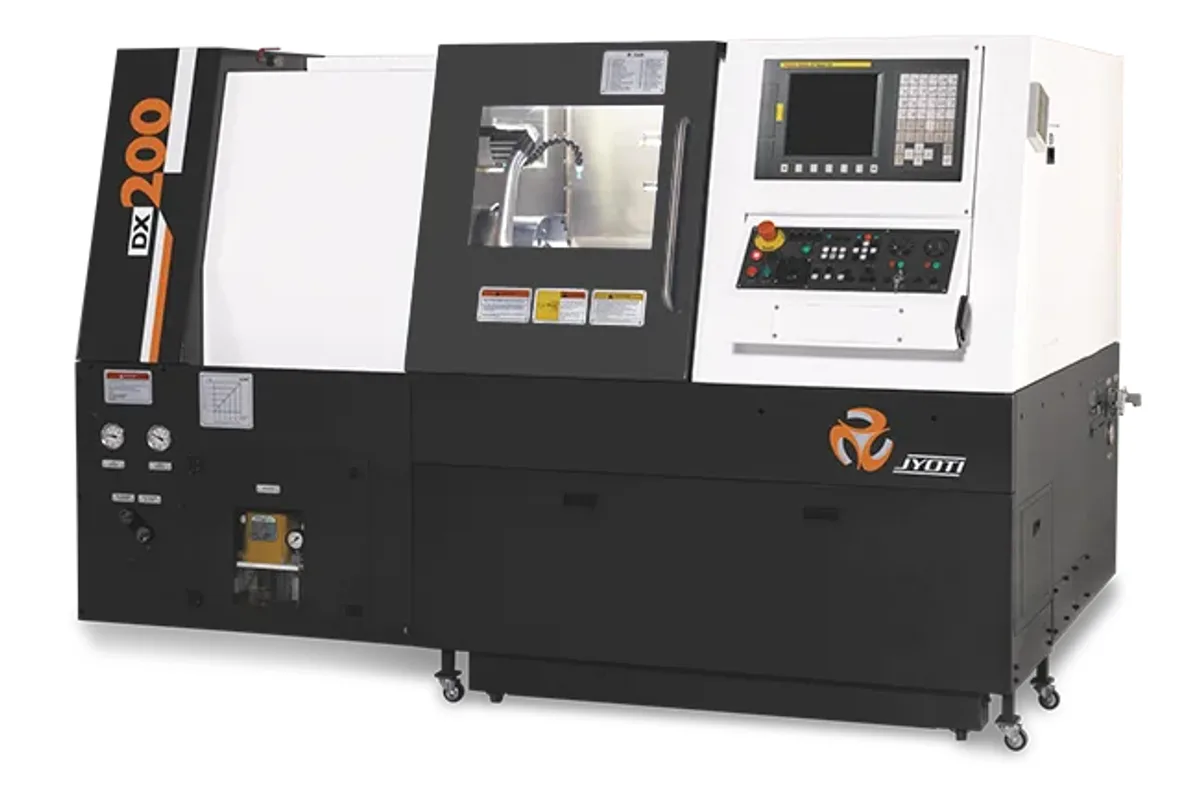

Huron DX 200-5 B
Image: huron.fr, Huron
Key Specifications
Max Turn Length
Accuracy
Repeatability
swing over bed
standard turning diameter
max turning diameter
How much does the Huron DX 200-5 B cost?
Price estimate
We do not have a price for the Huron DX 200-5 B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 75 mm bar capacity is the reason to look at the Huron DX 200-5 B. Its A2-8 spindle has a 90 mm bore, the largest in the DX 200 series, on a lathe that turns 365 mm (14.4 in) in diameter and 500 mm in length.
The larger spindle trades some speed for size. The range is 50-3,500 rpm, where the DX 200-5 A runs to 4,000 rpm. Motor power is 14.4/11 kW with Siemens and 11/9 kW with Fanuc. On small-diameter bar the lower top speed costs a little surface speed. On stock near the 75 mm limit it makes no practical difference.
An A2-8 nose also takes a larger chuck, so the DX 200-5 B is the better host for big-bore power chucks and for tube or hollow-bar work. The 365 mm turning diameter and 200 mm of X travel are shared with the DX 200-5 A.
Huron builds the series on a rigid bed with a 30° slant saddle and linear guideways, and lists a tailstock with hydraulic quill, hydraulic chucking and a servo turret that changes tools in 0.5 sec. Tailstock thrust is 500 kgf. Stated accuracy is 0.007 mm positioning and 0.005 mm repeatability. The machine weighs 3,500 kg (7,716 lb) and occupies 2,350 x 1,540 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 500 mm (19.7 in) |
| Standard Turning Diameter | 250 mm (9.8 in) |
| Max Turning Diameter | 365 mm (14.4 in) |
| Max Turning Length | 500 mm (19.7 in) |
| X Axis Travel | 200 mm (7.9 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Rapid Traverse Xz | 24 m/min |
| Spindle Power Siemens | 14.4/11 kW (19.3/14.8 hp) |
| Spindle Power Fanuc | 11/9 kW (14.8/12.1 hp) |
| Spindle Speed Range | 50-3,500 rpm |
| Spindle Bore | 90 mm (3.5 in) |
| Spindle Nose | A2-8 |
| Bar Capacity | 75 mm (3.0 in) |
| Turret Stations | 8 |
| Max Boring Bar Diameter | 40 mm (1.6 in) |
| Tool Shank Size | 25 x 25 mm (1.0 x 1.0 in) |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Stroke | 120 mm (4.7 in) |
| Tailstock Thrust | 500 kgf |
| Positioning Accuracy | 0.007 mm (0.0003 in) |
| Repeatability | 0.005 mm (0.0002 in) |
| Machine Weight | 3,500 kg (7,716 lb) |
| Machine Length | 2,350 mm (92.5 in) |
| Machine Width | 1,540 mm (60.6 in) |
| Machine Height | 1,710 mm (67.3 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 75 mm bar capacity through a 90 mm bore
- A2-8 spindle nose for larger chucks
- 14.4/11 kW on the Siemens motor
- 365 mm turning diameter on a 2,350 x 1,540 mm footprint
- Tailstock thrust of 500 kgf
Limitations
- Top spindle speed is 3,500 rpm
- Fanuc motor power is 11/9 kW, no more than on the DX 200-5 A
- Turning length is 500 mm; longer B models start with the DX 200-7 B
- 8 stations with 25 x 25 mm shanks
Best For
Frequently Asked Questions
01
75 mm, through a spindle bore of 90 mm on an A2-8 nose. The DX 200-5 A, with the smaller spindle, takes 52 mm bar through a 70 mm bore.
02
The speed range is 50-3,500 rpm. Spindle motor power is 14.4/11 kW with Siemens and 11/9 kW with Fanuc. The spindle nose is A2-8.
03
X travel is 200 mm and Z travel 500 mm, at 24 m/min rapid feed. Maximum turning diameter is 365 mm and maximum turning length 500 mm, with a 500 mm swing over bed.
04
Approximately 3,500 kg (7,716 lb). It is about 2,350 mm long, 1,540 mm wide and 1,710 mm high. Huron marks these values as approximate.
