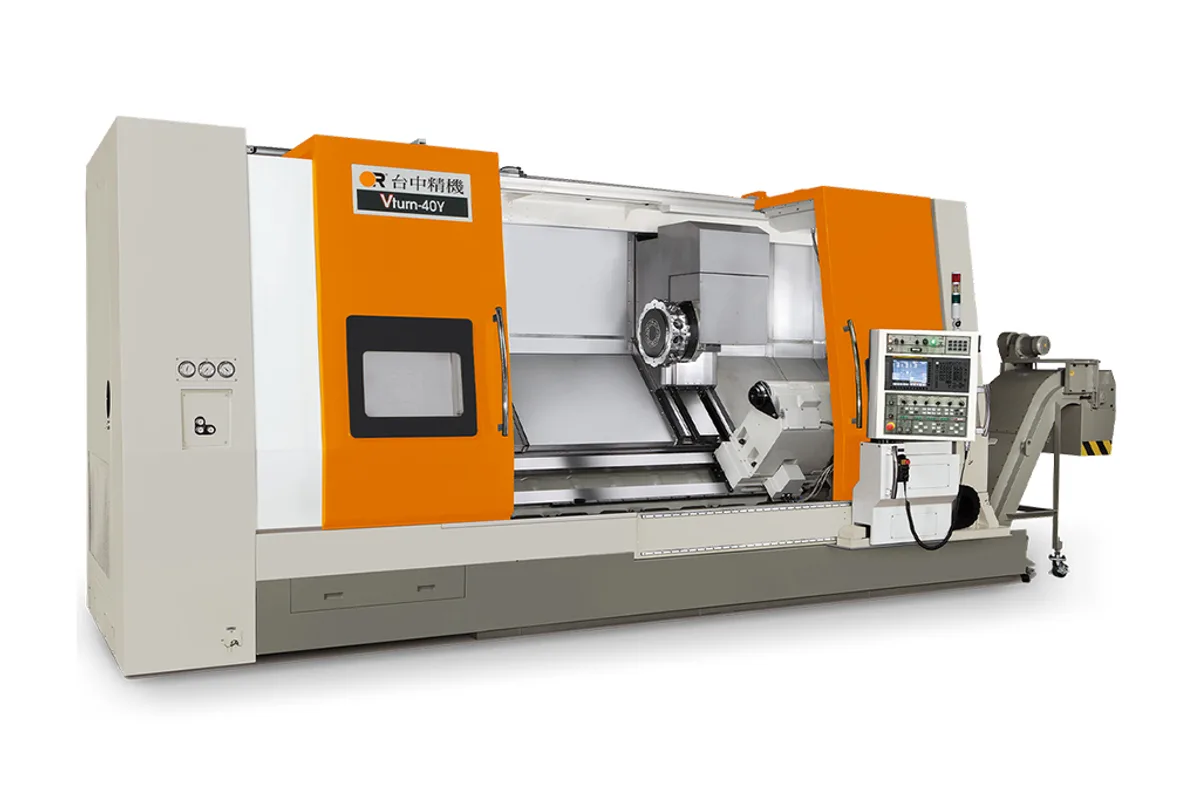

Victor Taichung Vturn-40/220
Image: machine-tools.victortaichung.com, Victor Taichung
Key Specifications
Max Spindle
Max Turn Length
standard turning diameter
max turning diameter
swing over carriage
spindle nose
How much does the Victor Taichung Vturn-40/220 cost?
Price estimate
We do not have a price for the Victor Taichung Vturn-40/220 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 2,250 mm (88.58 in) of turning length, the Victor Taichung Vturn-40/220 is the second of four bed lengths in the Vturn-40 heavy lathe family. Its headstock is the family's: an A2-11 nose, a 15 in chuck, 2,500 rpm and Ø91 mm (Ø3.58 in) of bar capacity.
A bed over two metres long puts shaft support at the centre of the buying decision. The table lists an M.T. #5 tailstock quill, and the option list adds a steady rest in manual or hydraulic form. Any shaft that is long in proportion to its diameter will need one, so it belongs in the quotation from the start.
Diameters depend on the configuration. Ø620 mm (Ø24.4 in) is the 2 Axis maximum; the C Axis machine is listed at Ø580 mm (Ø22.83 in) and the Y Axis machine at Ø520 mm (Ø20.47 in). The turret carries 10 tools without live tooling and 12 with it, on □32 mm shanks.
Adding axes costs very little weight on this length: 15,500 kg (34,171.60 lb) for the 2 Axis machine, 15,600 kg (34,392.07 lb) with the C axis and 15,800 kg (34,832.99 lb) with the Y axis. The control is a Fanuc 0i-TF Plus with a 10.4 in screen. An oil skimmer, optional on other models, is noted as standard on the Vturn-40.
Full Specifications
| Parameter | Value |
|---|---|
| Standard Turning Diameter | 2 Axis: Ø520 mm (Ø20.47 in); C Axis: Ø492 mm (Ø19.37 in); Y Axis: Ø432 mm (Ø17 in) |
| Max Turning Diameter | 2 Axis: Ø620 mm (Ø24.4 in); C Axis: Ø580 mm (Ø22.83 in); Y Axis: Ø520 mm (Ø20.47 in) |
| Max Turning Length | 2,250 mm (88.58 in) |
| Swing Over Carriage | 2 Axis: Ø620 mm (Ø24.4 in); C Axis: Ø650 mm (Ø25.59 in); Y Axis: Ø890 mm (35.03 in) |
| Max Spindle Speed | 2,500 rpm |
| Spindle Nose | A2-11 (15") |
| Bar Capacity | Ø91 mm (Ø3.58 in) |
| Turret Tools | 2 Axis: 10; C Axis, Y Axis: 12 |
| Tool Shank Size | □32 mm |
| Tailstock Quill Taper | 2 Axis: M.T. #5 (live); C Axis, Y Axis: M.T. #5 |
| Machine Weight | 2 Axis: 15,500 kg (34,171.60 lb); C Axis: 15,600 kg (34,392.07 lb); Y Axis: 15,800 kg (34,832.99 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,250 mm (88.58 in) turning length behind a 15 in chuck
- Ø91 mm (Ø3.58 in) bar capacity at up to 2,500 rpm
- Steady rest available in manual or hydraulic form
- Y Axis machine weighs 15,800 kg (34,832.99 lb), close to the 2 Axis figure
- Programmable tailstock with an M.T. #5 quill
Limitations
- Maximum turning diameter falls to Ø520 mm (Ø20.47 in) with the Y axis
- Only 10 turret tools on the 2 Axis machine
- The steady rest is an option, not standard equipment
- Needs floor space and a foundation for a 15,500 kg (34,171.60 lb) machine
Best For
Frequently Asked Questions
01
Maximum turning length is 2,250 mm (88.58 in). The tailstock quill is M.T. #5 and a manual or hydraulic steady rest is listed as an option for supporting the middle of a long part.
02
15,500 kg (34,171.60 lb) as a 2 Axis machine, 15,600 kg (34,392.07 lb) with the C axis and 15,800 kg (34,832.99 lb) with the Y axis. Plan the foundation and the unloading route around those figures.
03
Yes. A C axis with live tooling is on the option list, and the table has C Axis and Y Axis columns, each with a 12-tool turret. Maximum turning diameter is Ø580 mm (Ø22.83 in) and Ø520 mm (Ø20.47 in) for those two.
04
The spindle bore. The Vturn-40/220 passes Ø91 mm (Ø3.58 in) bar at up to 2,500 rpm. The Vturn-45/220 passes Ø117.5 mm (Ø4.62 in) at up to 2,000 rpm. Both use an A2-11 nose with a 15 in chuck.
