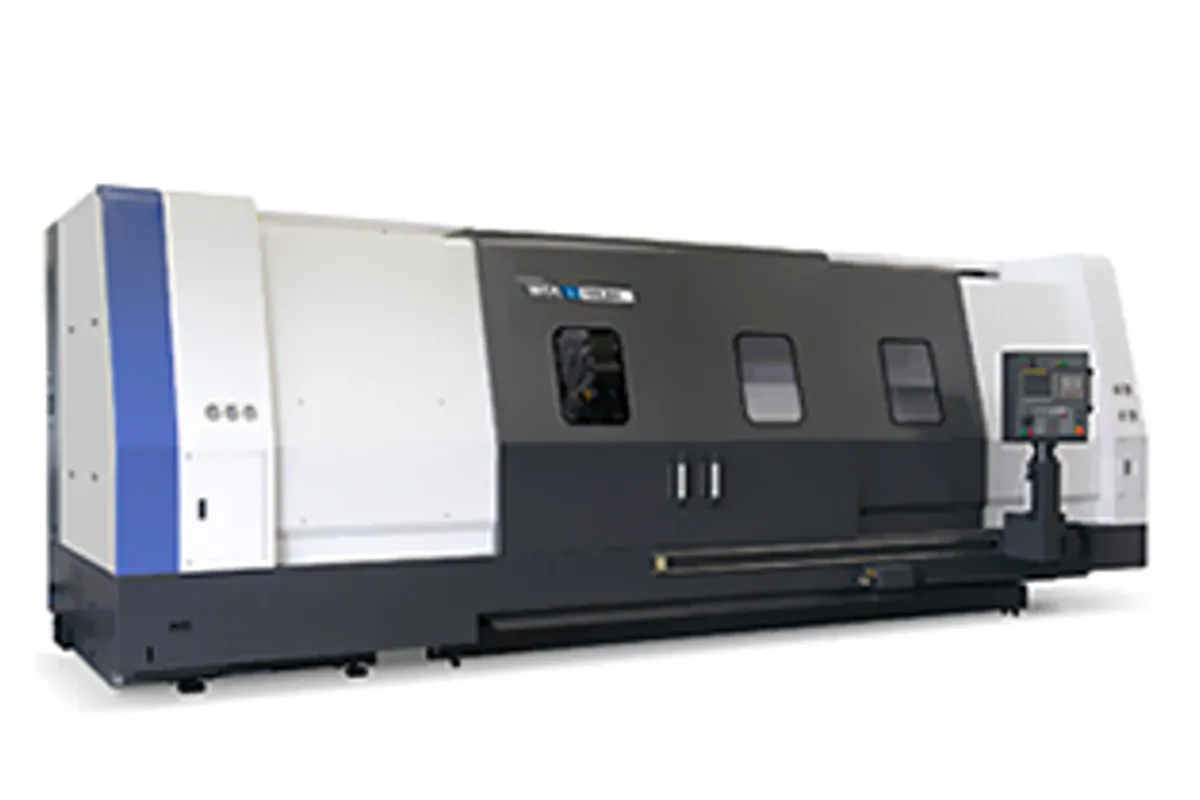

Hyundai WIA L600LA/LMA
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
max turning diameter
chuck size
spindle torque
Overview
The Hyundai WIA L600LA/LMA is a heavy-duty long-bed turning center designed for large-diameter, long-length work that exceeds the capacity of mid-size L300 and L400 series machines. With an 18-inch chuck, 920 mm (36.2 in) maximum turning diameter, and 3,250 mm (127.9 in) maximum turning length, the L600 platform handles the largest class of turned components in aerospace, oil and gas, power generation, and heavy equipment manufacturing.
The gear-driven spindle delivers 1,800 RPM with 45/37 kW (60/50 hp) producing a massive 5,610/4,621 Nm of torque. This torque output is essential for heavy roughing on large-diameter forgings, cast iron housings, and thick-wall tubular components where cutting forces at the workpiece periphery are extremely high. The gear drive ensures full torque is available across the speed range without the torque rolloff characteristic of belt-driven spindles.
The L600LA is a 2-axis turning center, while the L600LMA adds live milling at 3,000 RPM for cross-drilling, keyways, and off-axis features on long shafts without a secondary setup. Both models feature all-axis box-way guideways for maximum rigidity and vibration damping on the large work envelope. X/Z axis travel of 500/3,280 mm covers the full turning capacity. Rapid traverse of 12/12 m/min reflects the machine's heavy-duty positioning requirements.
The 12-station turret accepts 32/80 mm tooling sized for the heavy cutting tools this class of work demands. The Fanuc 0i-TF Plus control is standard. Priced at approximately $250,000-$350,000, the L600LA/LMA competes with the Mazak Slant Turn 600, Okuma LB45 II, and DN Solutions Puma 800 in the large-bore long-bed segment. For shops processing large shafts, rolls, and heavy components, the L600 platform delivers exceptional value relative to European alternatives.
Full Specifications
| Parameter | Value |
|---|---|
| Max Turning Diameter | 920 mm (36.2 in) |
| Max Turning Length | mm |
| Chuck Size | inch |
| Max Spindle Speed | 1,800 RPM |
| Spindle Motor Power | 45/37 kW (60/50 hp) |
| Spindle Torque | N.m |
| Spindle Drive | Gear |
| X Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 3,280 mm (129.1 in) |
| Rapid Traverse X | 12 m/min (472 ipm) |
| Rapid Traverse Z | 12 m/min (472 ipm) |
| Turret Stations | 12 |
| Tool Size | mm |
| Live Tool Speed | 3,000 RPM (LMA only) |
| Guideway Type | Box ways (all axes) |
| CNC Control | Fanuc 0i-TF Plus |
| Description | Unit |
| Max Turning Dia | mm |
| Spindle Rpm | r/min |
| Spindle Output | kW |
| Travel | mm |
| Rapid Travel | m/min |
| No Of Tools | EA |
| Milling Tool Speed | r/min |
| Type Of Business | Business Type 1VehiclesIT/ElectronicsMachinery/ShipbuildingComplex & Precise PartsDie&Mold IndustryEnergyOthersBusiness Type 2 |
| E Mail | @ |
Specifications sourced from wiamachine.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 920 mm turning diameter and 3,250 mm turning length handle the largest class of shaft and tubular components
- 5,610 Nm spindle torque enables aggressive roughing on large-diameter forgings and heavy castings
- 45/37 kW gear-driven spindle delivers full torque across the entire speed range without belt-drive rolloff
- All-axis box-way construction provides maximum rigidity for stable heavy cuts on the large work envelope
- L600LMA live milling option eliminates secondary VMC operations on long shaft components
- Competitive pricing versus European and Japanese large-bore long-bed turning centers
Limitations
- 1,800 RPM maximum spindle speed reflects the large bore and heavy chuck — not suitable for small-diameter high-speed work
- 12/12 m/min rapid traverse is slow by compact lathe standards, increasing non-cutting time on complex programs
- Substantial floor space and foundation requirements for a machine handling 3.2+ meter workpieces
- High capital investment ($250K-$350K) requires clear volume justification for large-part production
Best For
Frequently Asked Questions
01
The L600LA swings 920 mm (36.2 in) over the bed with a maximum turning length of 3,250 mm (127.9 in). The 18-inch chuck accommodates large forgings, castings, and tubular components. X-axis travel of 500 mm provides clearance for large-diameter facing and profiling operations.
02
The L600LA base model typically prices at $250,000-$300,000 new. The L600LMA with live milling runs $300,000-$350,000. These are large capital investments positioned below comparable European machines from DMG MORI, WFL, and EMAG. Used machines are less commonly available due to lower production volumes.
03
The L600LA is a 2-axis turning-only machine. The L600LMA adds live milling capability at 3,000 RPM with C-axis for cross-drilling, keyways, flats, and tapping operations on long shafts without secondary setups. Both share identical turning specifications, spindle power, and box-way construction.
04
At this size class, a reinforced concrete foundation with adequate load-bearing capacity is essential. The machine's weight (estimated 15,000-20,000 kg) and the extended bed length require careful floor planning. Hyundai WIA provides detailed installation drawings and foundation specifications. An overhead crane rated for the machine weight is required for installation.
