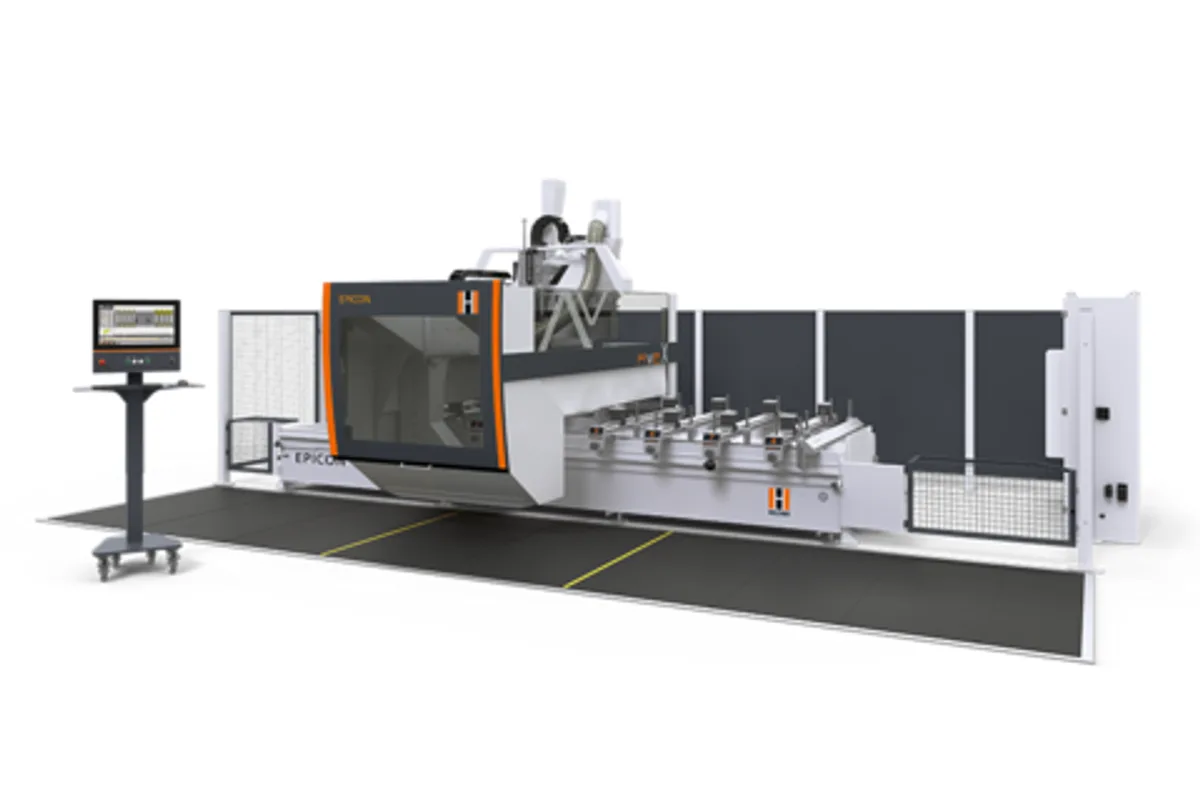

HOLZ-HER EPICON 7335
Image: holzher.co.uk, HOLZ-HER
Key Specifications
Spindle Power
machining length x
machining width y
z axis travel
machining height z
spindle power option
How much does the HOLZ-HER EPICON 7335 cost?
Price estimate
We do not have a price for the HOLZ-HER EPICON 7335 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 2,100 mm (82.7 in) of edge routing dimension in Y, the HOLZ-HER EPICON 7335 is the widest of the EPICON 5-axis machining centres. X comes in five lengths between 3,680 mm (144.9 in) and 7,280 mm (286.6 in), Z travel is 565 mm (22.2 in) and the machining height is 300 mm (11.8 in).
That Y figure is the reason to choose it over the EPICON 7235, which stops at 1,650 mm (65.0 in), or the EPICON 7135 at 1,500 mm (59.1 in). A full-width door blank, a wide worktop or two rows of smaller parts fit across the consoles without turning the work. HOLZ-HER says the gantry bridge and machine column were optimized by finite element methods, and lists the vector speed at 131 m/min.
The base cutter unit is the gimbal-mounted 13 kW (17.4 hp) 5-axis head: liquid-cooled, 1,000 to 24,000 rpm, +/- 360° on C and +/- 180° on A. An 18 kW (24.1 hp) PRO-TORQUE head is optional. Unlike the EPICON 7135, the standard drilling head here is the 21-spindle unit (15 vertical, 6 horizontal) with an X sawing unit, and a 31-spindle head is the upgrade.
Safety and table choices matter on a machine this wide. A 3-field foot mat for pendular machining is standard, and SafeDetect, a proximity-type monitoring feature with sensors, is offered as an option. The table has 6 consoles, 4 machining fields, 16 stops and 4 charging aids on a 100 m³/h vacuum pump, and can be upgraded to the VISE-LED or SynchroDrive table. The technical data table places all tool changers in the options column, while the page text describes a traveling disk changer with 18 or optional 24 positions, so confirm what a quoted machine includes.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Length X | 3,680 mm (144.9 in), 4,580 mm (180.3 in), 5,480 mm (215.7 in), 6,380 mm (251.2 in), 7,280 mm (286.6 in) |
| Machining Width Y | 2,100 mm (82.7 in) |
| Z Axis Travel | 565 mm (22.2 in) |
| Machining Height Z | 300 mm (11.8 in) |
| Spindle Motor Power | 13 kW (17.4 hp) 5-axis head, gimbal-mounted (infinite regulation), liquid-cooled |
| Spindle Power Option | 18 kW (24.1 hp) 5-axis head with PRO-TORQUE technology, liquid-cooled |
| Spindle Speed Range | 1,000-24,000 rpm |
| Vector Speed | 131 m/min |
| C Axis Range | +/- 360° |
| A Axis Range | +/- 180° |
| Drilling Head | 3.0 kW (4.0 hp), 21 spindles (15 V | 6 H), sawing unit in X direction |
| Drilling Head Options | 3.0 kW (4.0 hp), 31 spindles (25 V | 6 H), sawing unit in X direction |
| Workpiece Support | 6 consoles, 4 machining fields, 16 stops, 4 charging aids |
| Workpiece Support Options | VISE-LED table, SynchroDrive table |
| Safety Equipment | 3-field foot mat (pendular machining) |
| Vacuum Pump | 100 m³/h vacuum pump, dry-running version |
| Vacuum Pump Options | 140 / 250 m³/h vacuum pump |
| Tool Changer Options | 18, 24-position traveling disk tool changer; single pick-up for 350 mm (13.8 in) dia. saw blade; 14-position linear pick-up tool changer with tool cover |
| Software | 1 x CAMPUS Hops; aCADemy; 3D simulation |
Specifications sourced from holzher.co.uk — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,100 mm (82.7 in) Y dimension, the largest in the EPICON series
- Drilling head with 21 spindles (15 vertical, 6 horizontal) and an X sawing unit as standard
- Five X lengths up to 7,280 mm (286.6 in) support pendular machining of long parts and doors
- 13 kW (17.4 hp) 5-axis head standard, 18 kW (24.1 hp) PRO-TORQUE head available
- Optional SafeDetect proximity monitoring as an alternative to the standard 3-field foot mat
Limitations
- Vector speed of 131 m/min is lower than the 142 m/min listed for the EPICON 7135
- Tool changers sit in the options column of the technical data table, so capacity depends on the configuration ordered
- Base vacuum supply is one 100 m³/h pump; the 140 and 250 m³/h pumps are optional
- The technical data table gives no overall dimensions or weight, so floor space and foundation loads have to be requested for the chosen X length
Best For
Frequently Asked Questions
01
The edge routing dimension in Y is 2,100 mm (82.7 in). In X the machine is offered in 3,680 mm (144.9 in), 4,580 mm (180.3 in), 5,480 mm (215.7 in), 6,380 mm (251.2 in) and 7,280 mm (286.6 in) lengths, and the machining height in Z is 300 mm (11.8 in).
02
Yes. The cutter unit is a gimbal-mounted 5-axis head whose C axis rotates +/- 360° and whose A axis rotates +/- 180°. The standard head is rated 13 kW (17.4 hp) from 1,000 to 24,000 rpm, and HOLZ-HER describes a software module for 5-axis simultaneous cutting.
03
A 3.0 kW (4.0 hp) drilling head with 21 spindles, 15 vertical and 6 horizontal, and a sawing unit in the X direction. The optional head has 31 spindles, 25 vertical and 6 horizontal, also with an X sawing unit.
04
The standard equipment is a 3-field foot mat, which HOLZ-HER lists for pendular machining. SafeDetect is the option: a proximity-type safety monitoring feature with sensors that, in the maker's words, ensures free access to the machine.
