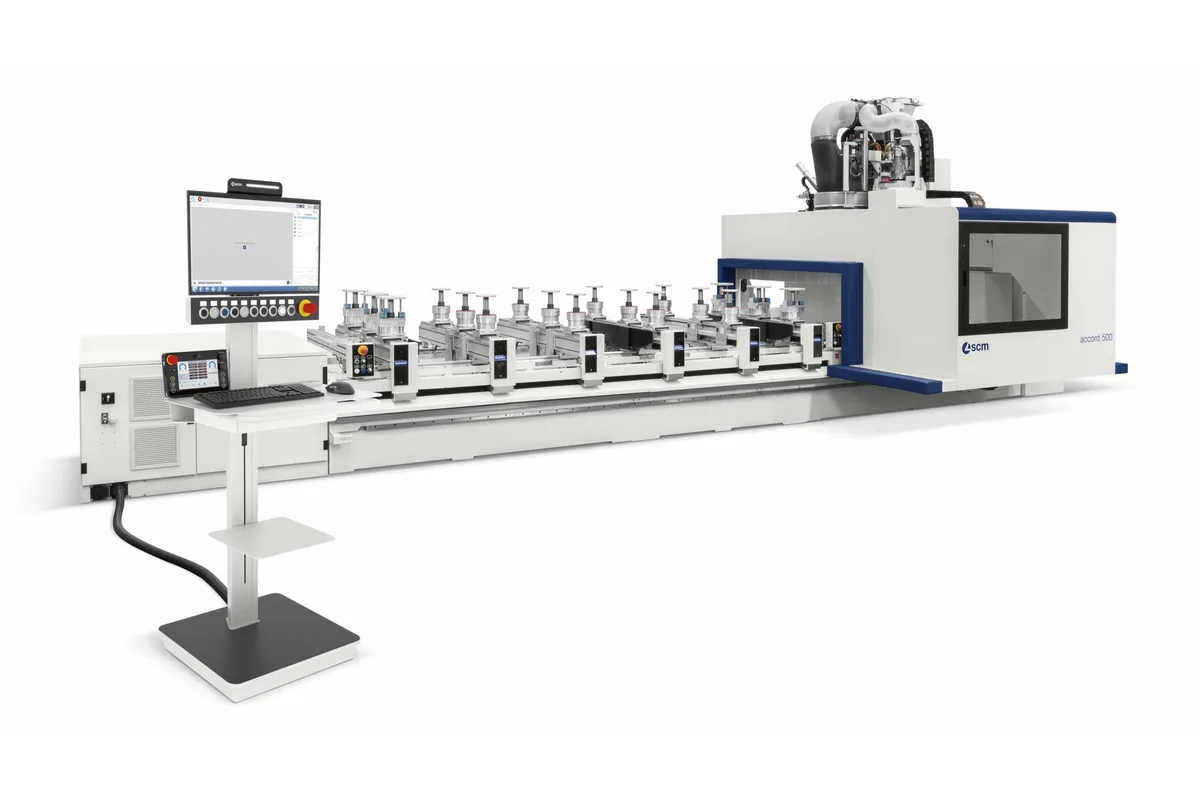

SCM Accord 500

Q: How much does the SCM Accord 500 cost?

The price estimate for the SCM Accord 500 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/scm-accord-500#price; the request is passed to SCM or an authorised dealer.

Specs verified 2026-10-05 · scmgroup.com Updated 2026-10-05

Image: scmgroup.com, SCM

Key Specifications

working areas xyz

3715 x 1600 x 300 mm / 3715 x 1900 x 300 mm / 5515 x 1600 x 300 mm / 5515 x 1900 x 300 mm / 6715 x 1600 x 300 mm / 6715 x 1900 x 300 mm

working area x

3,715 mm (146.3 in), 5,515 mm (217.1 in), 6,715 mm (264.4 in)

working area y

1,600 mm (63.0 in), 1,900 mm (74.8 in)

working area z

300 mm (11.8 in)

axis speed pro space

25-80-45 m/min (X-Y-Z axes max. speed, PRO-SPACE)

axis speed pro speed

90-80-45 m/min (X-Y-Z axes max. speed, PRO-SPEED)

How much does the SCM Accord 500 cost?

Price estimate

Uncertain

We do not have a price for the SCM Accord 500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The SCM Accord 500 is a bar-table CNC machining center for routing and drilling, listed in six working areas from 3715 x 1600 x 300 mm to 6715 x 1900 x 300 mm. Its 5-axis electrospindle is rated at up to 20 kW (27 hp) and 24000 rpm, and SCM also lists a 3- or 4-axis electrospindle of up to 21 kW (28.5 hp).

How fast it moves depends on the safety concept you order. In the PRO-SPEED version the X-Y-Z axes reach 90-80-45 m/min. The PRO-SPACE version, which SCM describes as built without perimeter protections for shops short of floor space, is listed at 25-80-45 m/min, so the saving in footprint is paid for in X-axis speed. Y and Z are the same in both.

Tooling is where this model is unusually broad. The table names six changers: a TRB side changer with 11 positions, a CADDY side changer with 35 positions, a RAPID rear changer with 16 positions, a QUADRO rear changer with 35 positions, and FAST and VELOCE on-board changers with 16 positions each. SCM states that up to 106 tools can be on board with the QUADRO 35 and CADDY 35 fitted. Which of the six a given machine carries is a configuration question, not a given.

The drilling unit takes up to 31 vertical and horizontal spindles at a maximum of 8000 rpm. Next to it in the range, the Accord 600 keeps the same six working areas but pairs a smaller 5-axis spindle with two on-board changers for tool changes in hidden time.

Full Specifications

Parameter	Value
Working Areas Xyz	3715 x 1600 x 300 mm / 3715 x 1900 x 300 mm / 5515 x 1600 x 300 mm / 5515 x 1900 x 300 mm / 6715 x 1600 x 300 mm / 6715 x 1900 x 300 mm
Working Area X	3,715 mm (146.3 in), 5,515 mm (217.1 in), 6,715 mm (264.4 in)
Working Area Y	1,600 mm (63.0 in), 1,900 mm (74.8 in)
Working Area Z	300 mm (11.8 in)
Axis Speed Pro Space	25-80-45 m/min (X-Y-Z axes max. speed, PRO-SPACE)
Axis Speed Pro Speed	90-80-45 m/min (X-Y-Z axes max. speed, PRO-SPEED)
Spindle Power 5 Axis	20 kW (27 hp) max.
Spindle Power 3 4 Axis	21 kW (28.5 hp) max.
Spindle Speed 5 Axis	24000 rpm max.
Spindle Speed 3 4 Axis	24000 rpm max.
Trb Side Tool Changer	11 positions
Caddy Side Tool Changer	35 positions
Rapid Rear Tool Changer	16 positions
Quadro Rear Tool Changer	35 positions
Fast on Board Tool Changer	16 positions
Veloce on Board Tool Changer	16 positions
Drilling Unit Spindles	up to 31 (vertical and horizontal)
Drilling Unit Rotation Speed Max	8000 rpm

Specifications sourced from scmgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

5-axis electrospindle of up to 20 kW (27 hp) at 24000 rpm, the highest 5-axis rating among the Accord pages listed here
Six working areas, with X of 3,715 mm (146.3 in), 5,515 mm (217.1 in) or 6,715 mm (264.4 in) and two Y depths
Up to 106 tools on board with the QUADRO 35 and CADDY 35 changers, according to SCM
Drilling unit with up to 31 vertical and horizontal spindles at 8000 rpm
PRO-SPACE version works without perimeter protections where floor space is tight

Limitations

X-axis speed drops from 90 m/min to 25 m/min in the PRO-SPACE version (25-80-45 m/min against 90-80-45 m/min)
Z is 300 mm (11.8 in) in every working area, less than the 500 mm of the Accord 50 FX working areas such as 3680x1680x500 mm
All spindle, changer and drilling figures are stated as maximums, so the quoted configuration decides what is fitted

Best For

Solid wood doors, windows and stairs alongside furniture panels on one bar table Jobs with large tool sets that benefit from the 35-position QUADRO and CADDY changers Shops without room for perimeter guarding, in the PRO-SPACE version 5-axis shaping with a 20 kW (27 hp) electrospindle

Frequently Asked Questions

01 What is the difference between PRO-SPACE and PRO-SPEED on the Accord 500?

They are two safety layouts with different axis speeds. SCM lists 90-80-45 m/min for the X-Y-Z axes in PRO-SPEED and 25-80-45 m/min in PRO-SPACE. PRO-SPACE is the version without perimeter protections, which SCM aims at companies that do not have much space available.

02 Which spindles does SCM list for the Accord 500?

Two routing options appear in the table: a 5-axis electrospindle of up to 20 kW (27 hp) and a 3- or 4-axis electrospindle of up to 21 kW (28.5 hp). Both are listed at a maximum of 24000 rpm.

03 How many tools can the Accord 500 carry?

SCM states up to 106 tools on board with the QUADRO 35 and CADDY 35 changers. The table lists the individual changers: TRB side with 11 positions, CADDY side with 35 positions, RAPID rear with 16 positions, QUADRO rear with 35 positions, and FAST and VELOCE on-board changers with 16 positions each.

04 What working areas are available?

Six: 3715 x 1600 x 300 mm, 3715 x 1900 x 300 mm, 5515 x 1600 x 300 mm, 5515 x 1900 x 300 mm, 6715 x 1600 x 300 mm and 6715 x 1900 x 300 mm. That is three X lengths in two Y depths, with the same Z throughout.
