HNK HPM-25M (25x60)
Key Specifications
Spindle Taper
Table Size
Spindle Power
distance between columns
x axis travel
y axis travel
How much does the HNK HPM-25M (25x60) cost?
Price estimate
We do not have a price for the HNK HPM-25M (25x60) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HPM-25M (25x60) is the last HPM-M size before the ram and Z stroke increase. It offers a 2,500 x 6,000 mm (98.4 x 236.2 in) table, 6,250 mm (246.1 in) of X and a 30,000 kg (66,138 lb) rating.
Buyers comparing it with the HPM-30M (30x60), which has the same X travel, should look past table width. The HPM-30M brings a 400 x 400 mm (15.7 x 15.7 in) ram, a Z stroke of 1,000 mm (39.4 in) and 2,500 mm (98.4 in) of crossrail travel. The HPM-25M (25x60) stays with the 380 x 380 mm (15.0 x 15.0 in) ram, 800 mm (31.5 in) of Z and 2,000 mm (78.7 in) of W. For parts under 2,500 mm wide that do not need the deeper reach, it is the lighter machine for the same length.
Six metres at this width covers press crowns and beds, large engine blocks and frames for construction machinery. Y travel is 4,200 mm (165.4 in), with 3,200 mm (126.0 in) between the columns.
Spindle: Ø130 mm (5.1 in), ISO No.50. Motor ratings: 22/26, 30/37 and 37/45 kW (49.6/60.3 hp), cont/30min. Controls: Fanuc 31i-B, Siemens 840D.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 3,200 mm (126.0 in) |
| X Axis Travel | 6,250 mm (246.1 in) |
| Y Axis Travel | 4,200 mm (165.4 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 2,000 mm (78.7 in) |
| Table Size | 2,500 x 6,000 mm (98.4 x 236.2 in) |
| Max Table Load | 30,000 kg (66,138 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø130 mm (5.1 in) |
| Ram Size | 380 x 380 mm (15.0 x 15.0 in) |
| Spindle Motor Power | 22/26, 30/37, 37/45 kW (29.5/34.9, 40.2/49.6, 49.6/60.3 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,500 x 6,000 mm (98.4 x 236.2 in) table with 6,250 mm (246.1 in) of X
- 30,000 kg (66,138 lb) table load
- 2,000 mm (78.7 in) of W-axis travel
- ISO No.50 spindle of Ø130 mm (5.1 in)
Limitations
- Z travel of 800 mm (31.5 in), where the HPM-30M has 1,000 mm (39.4 in)
- Ram section of 380 x 380 mm (15.0 x 15.0 in)
- Load does not rise with the longer table
- No usable spindle speed row
Best For
Frequently Asked Questions
01
Both travel 6,250 mm in X. The HPM-30M (30x60) has a 3,000 mm wide table, 40,000 kg (88,183 lb) of load, a 400 x 400 mm ram and 2,500 mm (98.4 in) of W. The HPM-25M (25x60) is narrower, with 30,000 kg and 2,000 mm of W.
02
X 6,250 mm (246.1 in), Y 4,200 mm (165.4 in), Z 800 mm (31.5 in) and W 2,000 mm (78.7 in). The table is 2,500 x 6,000 mm (98.4 x 236.2 in).
03
HNK's table lists three ratings without saying which is standard: 22/26, 30/37 and 37/45 kW (49.6/60.3 hp), continuous and 30-min. Since the row is starred, the motor is chosen with the order.
04
The effective distance between columns is listed as 3,200 mm (126.0 in) and marked with a star. HNK states that starred items can be changed according to the customers' requirements.
More from HNK
Other 5-Axis Machining Centers

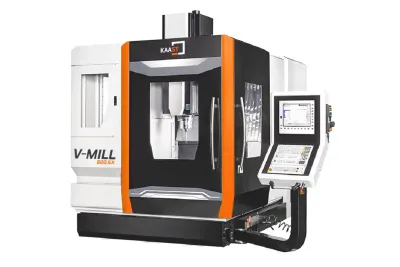

KAAST V-Mill 620.5X
