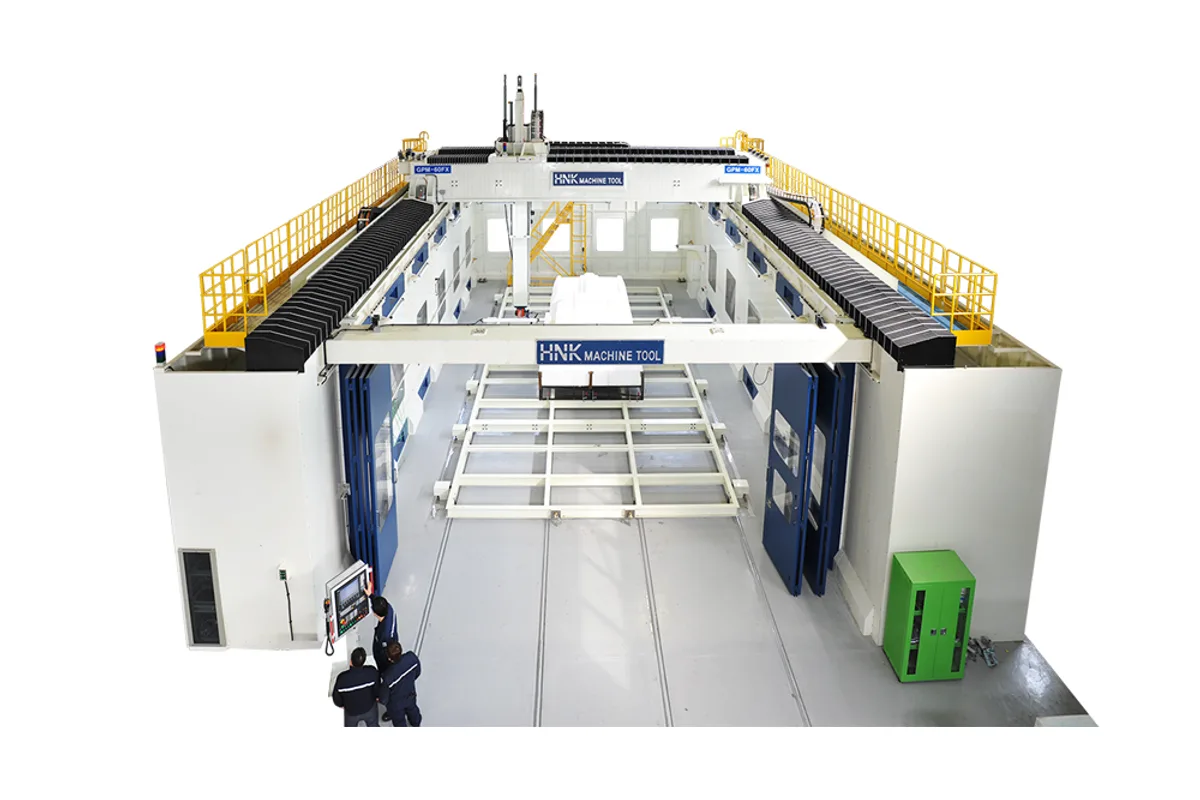

HNK GPM-60FX
Image: en.hnkkorea.com, HNK
Key Specifications
Max Spindle
working area
a axis range
c axis range
x axis travel
y axis travel
How much does the HNK GPM-60FX cost?
Price estimate
We do not have a price for the HNK GPM-60FX that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK GPM-60FX is a ram-type 5-axis gantry profiler with a working area of 6,000 x 12,000 mm (236.2 x 472.4 in). The gantry runs 12,000 mm (472.4 in) in X, the head crosses 6,300 mm (248.0 in) in Y, and the ram drops 4,250 mm (167.3 in) in Z.
That Z figure is what sets it apart from HNK's plate profilers, such as the GST-2S with 600 mm (23.6 in) of vertical travel. More than four metres of ram stroke lets the head descend into and around a tall body: a fuselage section, a wing box, a boat hull plug or a large lay-up mould standing on the floor.
The spindle turns at 24,000 rpm. The two head axes are listed as A at ±120° and C at ±245°, which gives full 5-axis surface machining, as HNK puts it, for components of complicated shape. Spindle power, taper and feed rates are not in the table. The control is Siemens 840D.
Full Specifications
| Parameter | Value |
|---|---|
| Working Area | 6,000 x 12,000 mm (236.2 x 472.4 in) |
| Max Spindle Speed | 24,000 rpm |
| A Axis Range | ±120° |
| C Axis Range | ±245° |
| X Axis Travel | 12,000 mm (472.4 in) |
| Y Axis Travel | 6,300 mm (248.0 in) |
| Z Axis Travel | 4,250 mm (167.3 in) |
| CNC Control | Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Z travel of 4,250 mm (167.3 in) on a ram-type head
- Working area of 6,000 x 12,000 mm (236.2 x 472.4 in)
- 24,000 rpm spindle with A ±120° and C ±245°
Limitations
- No spindle power or taper in the published table
- A long ram at full extension is for light finishing cuts, not heavy roughing
- Feed rates and accuracy figures are not stated
Best For
Frequently Asked Questions
01
The working area is 6,000 x 12,000 mm (236.2 x 472.4 in). Axis travels are 12,000 mm (472.4 in) in X, 6,300 mm (248.0 in) in Y and 4,250 mm (167.3 in) in Z, so the head can work over and down the sides of a body several metres tall.
02
The table lists the A-axis at ±120° and the C-axis at ±245°. HNK labels the two rows Vertical Position and Supplying Position, and describes the machine as a ram type of 5-axis gantry profiler.
03
Only the speed is published: 24,000 rpm. That is a light-alloy and composite speed. Power, torque and tool interface are not given on the maker's page and need to be requested.
