HNK HPM-15M (15x40)
Key Specifications
Spindle Taper
Table Size
Spindle Power
distance between columns
x axis travel
y axis travel
How much does the HNK HPM-15M (15x40) cost?
Price estimate
We do not have a price for the HNK HPM-15M (15x40) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK HPM-15M (15x40) adds a metre of table to the smallest five-face bridge. It measures 1,500 x 4,000 mm (59.1 x 157.5 in), travels 4,250 mm (167.3 in) in X and carries 15,000 kg (33,069 lb).
HNK builds the same table as a fixed-crossrail machine too, the HPF-15M (15x40), and the comparison explains what the HPM-M is for. The HPF-15M has no W-axis and a fixed 1,200 mm (47.2 in) under the spindle. The HPM-15M can raise and lower its crossrail by 1,000 mm (39.4 in). Low work is cut with the rail down and the ram short, which is the stiff condition; tall work is still reachable with the rail up. Its 800 mm (31.5 in) ram travel is the working stroke.
A long, narrow five-face machine fits beams, columns and machine-tool castings whose ends as well as their top need milling. HNK describes the series as designed for precision and heavy-duty machining of a wide range of workpieces.
The spindle is Ø130 mm (5.1 in), ISO No.50. Motor ratings of 22/26, 30/37 and 37/45 kW (49.6/60.3 hp), cont/30min, are listed. Y travel is 3,200 mm (126.0 in) between columns 2,200 mm (86.6 in) apart.
Full Specifications
| Parameter | Value |
|---|---|
| Distance Between Columns | 2,200 mm (86.6 in) |
| X Axis Travel | 4,250 mm (167.3 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| W Axis Travel | 1,000 mm (39.4 in) |
| Table Size | 1,500 x 4,000 mm (59.1 x 157.5 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| Spindle Taper | ISO No.50 |
| Spindle Diameter | Ø130 mm (5.1 in) |
| Ram Size | 380 x 380 mm (15.0 x 15.0 in) |
| Spindle Motor Power | 22/26, 30/37, 37/45 kW (29.5/34.9, 40.2/49.6, 49.6/60.3 hp) (cont/30min) |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,250 mm (167.3 in) of X travel on a 1,500 mm (59.1 in) wide table
- Moving crossrail with 1,000 mm (39.4 in) of W
- 15,000 kg (33,069 lb) table load
- Ø130 mm (5.1 in) ISO No.50 spindle
Limitations
- Spindle speed is not printed cleanly in the maker's table
- Ram of 380 x 380 mm (15.0 x 15.0 in), smaller than the 400 x 400 mm of the HPM-30M
- Only 2,200 mm (86.6 in) between the columns
Best For
Frequently Asked Questions
01
The crossrail. The HPF-15M is crossrail-fixed, with 1,200 mm (47.2 in) between table and spindle end and a 3,000 rpm spindle. The HPM-15M (15x40) has a W-axis with 1,000 mm (39.4 in) of travel. Table size, load and spindle diameter match.
02
15,000 kg (33,069 lb) on a 1,500 x 4,000 mm (59.1 x 157.5 in) table. The shorter 15x30 version has the same rating, and the HPM-20M sizes are rated at 20,000 kg (44,092 lb).
03
ISO No.50, on a Ø130 mm (5.1 in) spindle. All twelve HPM-M sizes list the same taper and spindle diameter, and the same three motor ratings.
04
Fanuc 31i-B and Siemens 840D are both listed in the control row. Neither is in braces, so the table presents them as equal choices for this machine.
More from HNK
Other 5-Axis Machining Centers

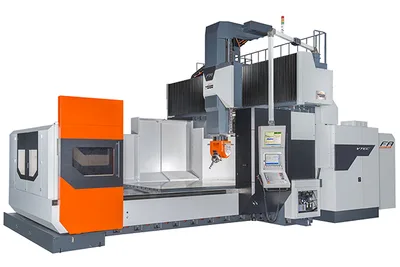

Vision Wide FA-5033
