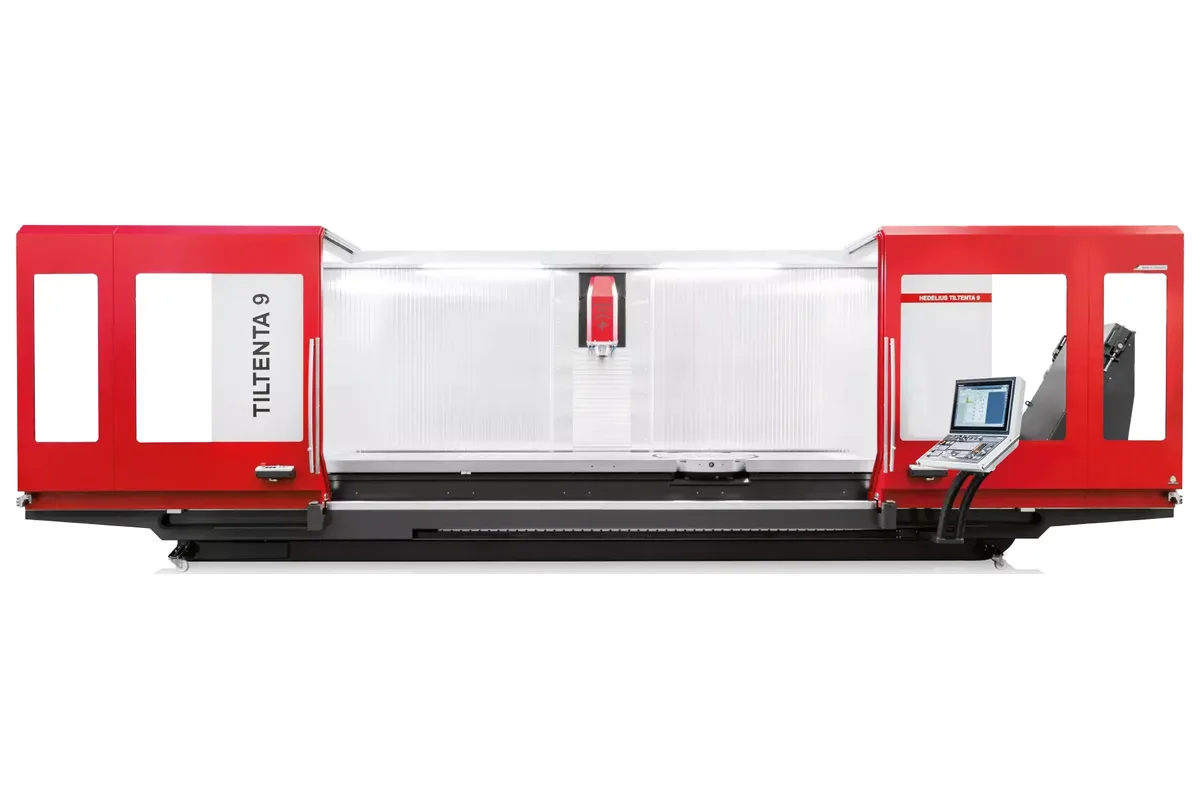

Hedelius TILTENTA 9-4600
Image: hedelius.de, Hedelius
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Hedelius TILTENTA 9-4600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 9-4600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 9-4600 is a swivel-spindle travelling column machining centre with travel paths of 4600 x 900 x 900 mm, or 4,600 mm (181.1 in) in X. Hedelius frames it around two uses: vertical machining of workpieces up to 4600 mm in length, and economical 3- and 5-axis machining of series parts in oscillation mode.
In oscillation mode the page gives 2 x 2,025 mm. Two metres per side is enough for a full-size fixture plate or a rotary table set-up in each area, which is why this length is a common choice for series work: the operator clamps on one side while the spindle is busy on the other. The mode is listed as optional.
Used as a single work area, the machine takes long parts on a fixed table with a contact surface of 5,080 x 900 mm and a load of up to 5,000 kg (11,023 lb). The spindle swivels from -5° to +98° or from -98° to +98°. Swung horizontal, it reaches the front side of workpieces up to approx. 3600 mm long, so a beam can be drilled and tapped on its end without a second clamping. The rotary table has a Ø 900 mm face plate and carries 1,200 / 1,800 kg, the larger figure with the optional heavy-duty table.
The spindle range is the series standard. SK 40 / BT 40 offers 22 kW or 37 kW at 14,000 rpm, the latter with 185 Nm. HSK A63 offers 50 kW with 217 Nm at 15,000 rpm, 35 kW at 18,000 rpm, or 30 kW at 24,000 rpm. Sixty tools are standard, and standby magazines raise the listed capacity to 324.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 4,600 mm (181.1 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Oscillation Mode | 2 x 2,025 mm (79.7 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Motor Power | 22 / 37 / 50 / 35 / 30 kW (29.5 / 49.6 / 67.1 / 46.9 / 40.2 hp) (spindle options) |
| Spindle Speed | 14,000 / 15,000 / 18,000 / 24,000 min-1 (spindle options) |
| Spindle Taper | SK 40, BT 40, HSK A63 |
| Tool Capacity | 60 / 130 / 175 / 240 / 324 |
| Table Size | 5,080 x 900 mm (200.0 x 35.4 in) |
| Max Table Load | 5,000 kg (11,023 lb) |
| Rotary Table Faceplate | Ø 900 mm (Ø 35.4 in) |
| Interference Circle Diameter | Ø 1,250 mm (Ø 49.2 in) |
| Rotary Table Load | 1,200 / 1,800 kg (2,646 / 3,968 lb) |
| Spindle Option 1 | SK 40 / BT 40, CELOX 14,000 1/min, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp) |
| Spindle Option 2 | SK 40 / BT 40, CELOX 14,000 1/min, 185 Nm (136 lb-ft), 37 kW (49.6 hp) |
| Spindle Option 3 | HSK A63, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp) |
| Spindle Option 4 | HSK A63, CELOX 18,000 1/min, 136 Nm (100 lb-ft), 35 kW (46.9 hp) |
| Spindle Option 5 | HSK A63, CELOX 24,000 1/min, 123 Nm (90.7 lb-ft), 30 kW (40.2 hp) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Oscillation mode of 2 x 2,025 mm for 3- and 5-axis series parts
- Vertical machining of workpieces up to 4600 mm in length
- Front side processing of workpieces up to approx. 3600 mm
- Fixed table with a 5,080 x 900 mm contact surface for 5,000 kg (11,023 lb)
- Spindles up to 50 kW and 217 Nm, or up to 24,000 rpm
Limitations
- Oscillation mode is optional, as is the heavy-duty rotary table
- The rotary table carries 1,200 / 1,800 kg, far less than the fixed table
- Hedelius links no data sheet for this series, so weight and footprint must be requested
- Y and Z travels of 900 mm on a machine with 4,600 mm of X
Best For
Frequently Asked Questions
01
4600 x 900 x 900 mm in X, Y and Z. The fixed machine table has a contact surface of 5,080 x 900 mm and a maximum load of 5,000 kg (11,023 lb). The rotary table face plate is Ø 900 mm with a collision area diameter of Ø 1,250 mm.
02
2 x 2,025 mm according to the product page. Hedelius lists 3- and 5-axis machining in oscillation mode as optional and names economical machining of series parts as its purpose.
03
Yes, with the spindle swivelled to horizontal. Hedelius gives front side processing of workpieces up to approx. 3600 mm. The swivelling area of the spindle is -5° to +98° or -98° to +98°.
04
For steel, the HSK A63 spindle with 217 Nm and 50 kW at 15,000 rpm or the SK 40 / BT 40 spindle with 185 Nm and 37 kW. For aluminium and finishing, the HSK A63 spindles at 18,000 rpm with 35 kW or at 24,000 rpm with 30 kW.
