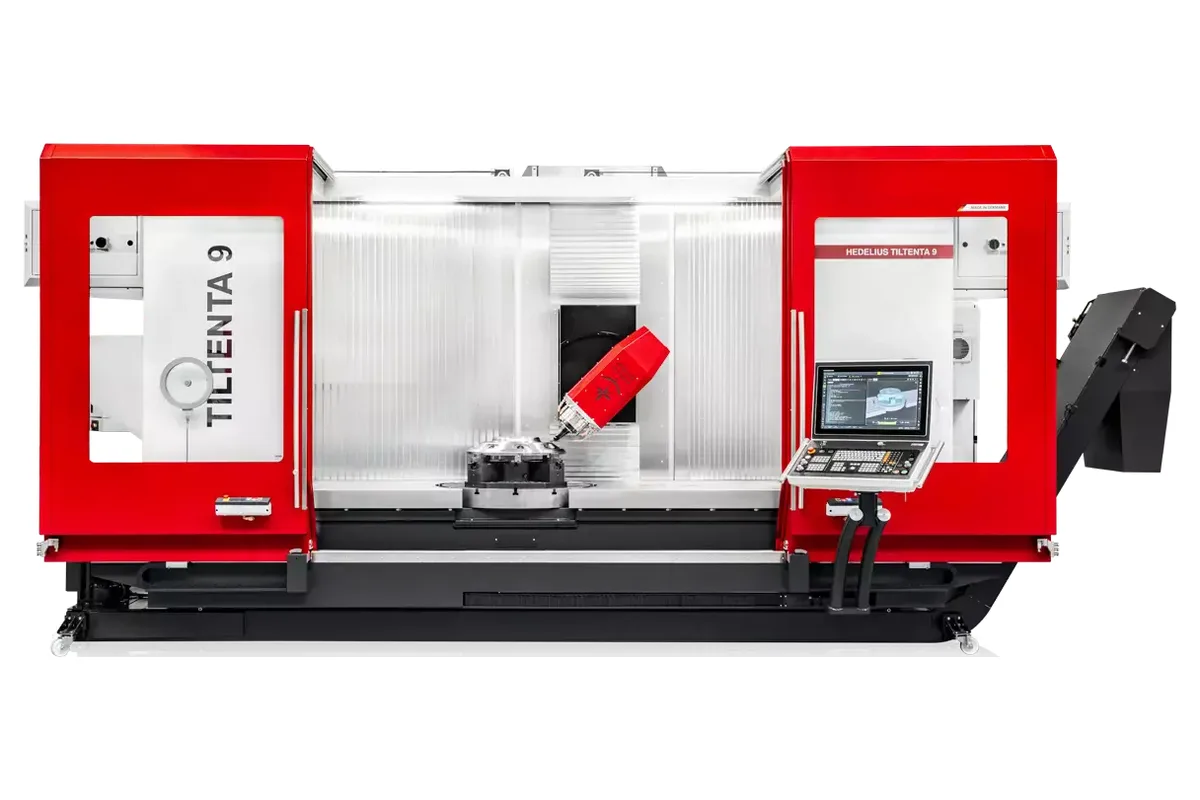

Hedelius TILTENTA 9-2600 MILLTURN
Image: hedelius.de, Hedelius
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Hedelius TILTENTA 9-2600 MILLTURN cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 9-2600 MILLTURN that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 9-2600 MILLTURN adds turning to a swivel-spindle 5-axis machining centre. Its integrated NC rotary table has a liquid-cooled torque drive and two speeds: 500 min-1 for turning and 30 min-1 for milling. The table is Ø 900 mm, the collision area diameter is Ø 1,250 mm, and workpieces may weigh up to 1,200 kg (2,646 lb).
The case for the machine is one set-up instead of two. A flange, ring or housing that would normally go from a lathe to a mill is clamped once; the table spins it for the turned diameters and faces, then indexes or contours it for the milled features. Hedelius puts it as continuous machining of complex workpieces in a stable process, with less reclamping and less non-productive time.
Only one spindle is listed, and it suits both tasks: HSK A63 with HSK-T, 15,000 rpm, 217 Nm and 50 kW. HSK-T is the interface used for turning tools, which the spindle has to hold still while the table rotates. The head swivels from -5° to +98° or from -98° to +98°, so a turning tool can be presented from above or from the side.
Table torque is 1,744 Nm at most and holding torque 8,000 Nm. The face plate has 12 star-shaped T-slots. Away from the rotary table the machine is a TILTENTA 9: travel paths of 2,600 x 900 x 900 mm, a fixed table with a contact surface of 3,080 x 900 mm for up to 3,000 kg, and a 60-tool magazine as standard. Turning at 500 min-1 with 1,200 kg on the table calls for balanced clamping, a point to raise with Hedelius for off-centre parts.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 mm (102.4 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Motor Power | 50 kW (67.1 hp) |
| Spindle Speed | 15,000 min-1 |
| Spindle Taper | HSK A63 |
| Tool Capacity | 60 / 130 / 175 / 240 / 324 |
| Table Size | 3,080 x 900 mm (121.3 x 35.4 in) |
| Max Table Load | 3,000 kg (6,614 lb) |
| Rotary Table Faceplate | Ø 900 mm (Ø 35.4 in) |
| Interference Circle Diameter | Ø 1,250 mm (Ø 49.2 in) |
| Rotary Table Load | 1,200 kg (2,646 lb) |
| Spindle Option 1 | HSK A63, HSK-T, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp) |
| Rotary Table T Slots | 12 x star-shaped T-slots: 8 x 18H12, 4 x 18H7 |
| Rotary Table Drive | Liquid-cooled torque drive |
| Rotary Table Turning Speed | 500 min-1 |
| Rotary Table Milling Speed | 30 min-1 |
| Rotary Table Holding Torque | 8,000 Nm (5,901 lb-ft) |
| Rotary Table Torque | 1,744 Nm (1,286 lb-ft) |
| Indexing Accuracy | < +/- 5″ |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary table with turning function: 500 min-1 in turning mode, 30 min-1 in milling mode
- Liquid-cooled torque drive with up to 1,744 Nm and a holding torque of up to 8,000 Nm
- Workpieces up to 1,200 kg and a collision area diameter of Ø 1,250 mm
- HSK A63 / HSK-T spindle with 217 Nm and 50 kW at 15,000 rpm
- Milling and turning in one clamping, plus a 3,080 x 900 mm fixed table for long parts
Limitations
- A single spindle option; the faster and the SK 40 / BT 40 spindles of the series are not listed for it
- Turning speed tops out at 500 min-1, which is low for small diameters
- Rotary table load is 1,200 kg, with no heavy-duty figure listed for this variant
- No data sheet is linked on the product page, so weight and tool limits are unpublished
Best For
Frequently Asked Questions
01
500 min-1 in turning mode and 30 min-1 in milling mode. The NC rotary table is Ø 900 mm, driven by a liquid-cooled torque drive with a maximum torque of 1,744 Nm, and holds with up to 8,000 Nm.
02
The collision area diameter is Ø 1,250 mm and the workpiece weight is up to 1,200 kg (2,646 lb) on the rotary table. The face plate is Ø 900 mm with 12 star-shaped T-slots, 8 x 18H12 and 4 x 18H7.
03
One spindle is listed: HSK A63 with HSK-T, at 15,000 rpm with 217 Nm and 50 kW. It swivels from -5° to +98° or from -98° to +98°. The tool magazine holds 60 tools as standard, with capacities of 130, 175, 240 and 324 listed.
04
Yes. Hedelius describes it as a combination of 5-axis milling and integrated turning. Travel paths are 2,600 x 900 x 900 mm, and beside the rotary table there is a fixed machine table with a contact surface of 3,080 x 900 mm and a maximum load of 3,000 kg.
