Hedelius TILTENTA 10-3600
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 10-3600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 10-3600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

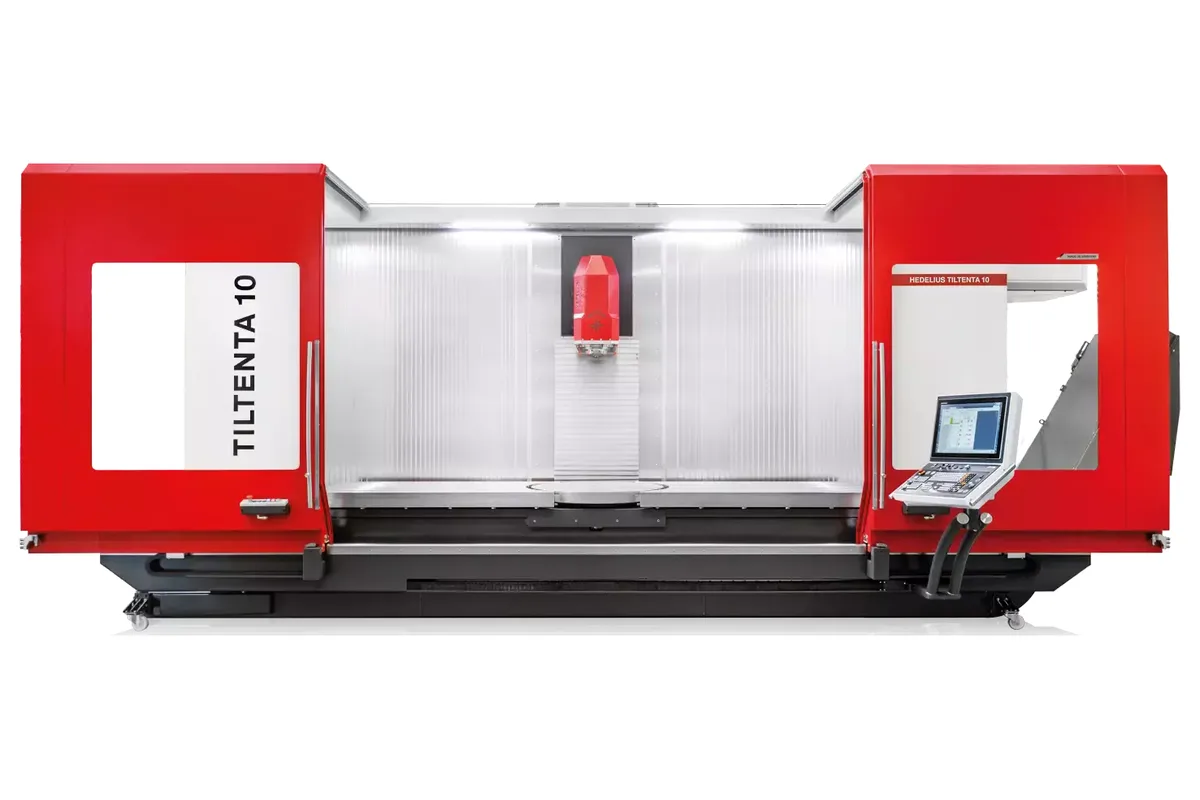

Hedelius says the TILTENTA 10 rounds off a TILTENTA series that has been built hundreds of times, and the TILTENTA 10-3600 is its mid-length model: a 5-axis travelling column machining centre with a swivelling SK50 spindle, 3,600 mm (141.7 in) of vertical X travel and an integrated heavy-duty rotary table.
The rotary table defines the class. Its faceplate is Ø 1,000 mm with nine 18 mm T-slots, the interference circle is 1,450 mm, and the workpiece weight is 1,600 kg, or 2,200 kg as an option. It turns at 6.25 min-1 with 4,200 Nm of torque and holds with 12,000 Nm. Those are positioning and heavy contouring figures. The cutting forces of a 300 Nm spindle have to be held by something, and the 12,000 Nm holding torque is what does it.
Around the rotary table lies a fixed table of 4,080 x 1,000 mm for 5,500 kg (12,125 lb). Travels are 1,000 mm in Y and 1,000 / 1,165 mm in Z. Horizontal X travel is 2,760 mm, which is the length available for end-face work. The spindle distance is 20 to 1,020 mm.
The spindle comes with the BIG PLUS duplex contact system as standard and delivers 50 kW at up to 8,000 or 12,000 rpm. Feed force is 34,000 N. Tools are large, up to 12 kg and 400 mm long, and the 40-place magazine can be extended to give access to 192. With a transport width of 4,230 mm, or 3,940 mm as an option, and a weight of 26,000 kg (57,319 lb), installation needs early planning. No pendulum operation is listed for this length.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,600 / 2,760 mm (141.7 / 108.7 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 1,000 mm (39.4 in) |
| Z Axis Travel | 1,000 / 1,165 mm (39.4 / 45.9 in) (V/H: vertical / horizontal) |
| Spindle Option 1 | SK50 / BT50 / HSK A100, 8,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Option 2 | SK50 / BT50 / HSK A100, 12,000 min-1, 300 Nm (221 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 1,050 cm3/min, drilling Ø 60 mm (Ø 2.4 in), thread cutting M 30 |
| Spindle Centre of Rotation | 420 mm (16.5 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,400 Nm (1,770 lb-ft) |
| Spindle Swivel Torque Clamped | 10,000 Nm (7,376 lb-ft) |
| Rotary Table Faceplate | Ø 1,000 mm (Ø 39.4 in) |
| Interference Circle Diameter | 1,450 mm (57.1 in) |
| Rotary Table Rotational Speed | 6.25 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 4,200 Nm (3,098 lb-ft) |
| Rotary Table Holding Torque | 12,000 Nm (8,851 lb-ft) |
| Rotary Table Load | 1,600 / 2,200 kg (3,527 / 4,850 lb) (optional) |
| Spindle Distance | 20 - 1,020 mm (0.8 - 40.2 in) |
| Table Size | 4,080 x 1,000 mm (160.6 x 39.4 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 100 mm (3.9 in) |
| Max Table Load | 5,500 kg (12,125 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 34,000 N (7,643 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 40 / 192 |
| Max Tool Diameter (full magazine) | 100 / 140 mm (3.9 / 5.5 in); 140 mm with free adjoining areas (option) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 12 kg (26 lb); other weights on request |
| Chip to Chip Time | ca. 15 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 26,000 kg (57,319 lb) |
| Transport Height | 3,240 mm (127.6 in) |
| Transport Width | 4,230 / 3,940 mm (166.5 / 155.1 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- Heavy-duty rotary table: Ø 1,000 mm faceplate, 1,600 kg or optionally 2,200 kg, 12,000 Nm holding torque
- 300 Nm and 50 kW SK50 spindle with BIG PLUS as standard
- 3,600 mm of vertical X travel and 2,760 mm horizontal
- Fixed 4,080 x 1,000 mm table for 5,500 kg (12,125 lb)
- Feed force of 34,000 N with 40 m/min feeds
Limitations
- No pendulum operation in the data sheet for this length
- Spindle speed is limited to 8,000 or 12,000 rpm
- The 2,200 kg rotary table load and the 3,940 mm transport width are options
- 26,000 kg (57,319 lb) and ca. 15 s chip to chip
Best For
Frequently Asked Questions
01
1,600 kg as listed, or 2,200 kg as an option. The integrated rotary table has a Ø 1,000 mm faceplate, an interference circle of 1,450 mm, a speed of 6.25 min-1, 4,200 Nm of torque and 12,000 Nm of holding torque.
02
3,600 mm with the spindle vertical and 2,760 mm with the spindle horizontal. Y travel is 1,000 mm and Z travel 1,000 / 1,165 mm for vertical / horizontal. The clamping area of the fixed table is 4,080 x 1,000 mm.
03
SK50, BT50 or HSK A100 tools up to 400 mm long and 12 kg, with a diameter of 100 mm, or 140 mm with free adjoining places as an option. 40 tools are standard and the magazine can provide access to up to 192 tools.
04
26,000 kg (57,319 lb) as standard. The delivery/transport height is 3,240 mm. The transport width is given as 4,230 / 3,940 mm with the second figure marked optional, so clarify which applies before planning the route into the hall.
