DN Solutions DBM 2030 U

Est. $900,000 - $1,400,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

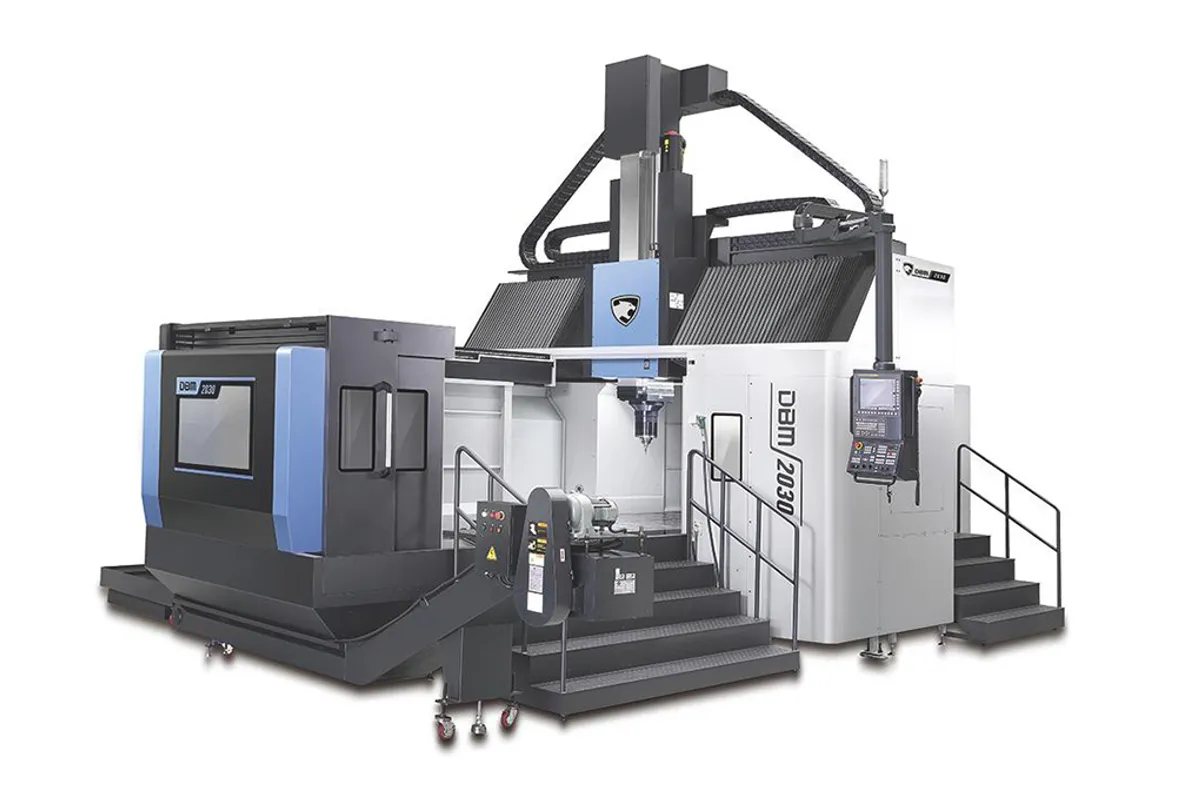

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

3,250 mm (128 in)

Y Travel

2,500 mm (98 in)

Z Travel

1,000 mm (39 in)

Max Spindle

15,000 rpm

Spindle Taper

HSK-A100

Tool Capacity

How much does the DN Solutions DBM 2030 U cost?

Estimated price range

Est.$900,000 - $1,400,000

Our best estimate for a 5-axis machining center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions DBM 2030 U is a double-column machining center from DN's five-axis range with 3,250 mm (128 in) of X travel, 2,500 mm (98 in) of Y and 1,000 mm (39 in) of Z. Its spindle turns at up to 15,000 rpm on an HSK-A100 taper, with 46/34 kW (62/46 hp) and 146 N·m (108 ft-lb) listed, and the magazine holds 60 tools. Of the DBM U sizes DN lists next to it, this one has the shortest bed.

The table is 3,000 × 1,500 mm (118 × 59 in), noticeably smaller than the travel envelope. Y travel of 2,500 mm (98 in) against 1,500 mm (59 in) of table width means the spindle can run well outside the table on either side, which is the clearance a tilting head needs to come down alongside a part. X has less margin: 3,250 mm (128 in) of travel over a 3,000 mm (118 in) table.

A look at the plain DBM 2030 shows what the U changes: that machine shares the X and Y travels but has 1,100 mm (43 in) of Z, 1,009 N·m (744 ft-lb) of spindle torque and a 40-tool magazine. The U therefore gives up most of the torque and a little Z, and gains spindle speed and twenty more tool pockets. That is a finishing and multi-face machine, not a heavy rougher, and the magazine size fits the long tool lists that mold work with many small cutters produces.

For the series DN names auto-change attachments, high-precision and high-speed head attachments, DSQ I/II/III functions for mold machining, easy pattern cycles, work load counter control and automatic feed control. The table for this model states 900 mm (35 in) from spindle nose to table but gives no table load and no rapid traverse rates, so ask for both. The machine weighs 37,000 kg (81,571 lb) and measures 12,265 × 6,000 × 5,810 mm (483 × 236 × 229 in), length by width by height.

Full Specifications

Parameter	Value
Spindle Nose to Table	900 mm (35 in)
X-Axis Travel	3,250 mm (128 in)
Y-Axis Travel	2,500 mm (98 in)
Z-Axis Travel	1,000 mm (39 in)
Max Spindle Speed	15,000 rpm
Spindle Motor Power	46/34 kW (62/46 hp)
Spindle Torque	146 N·m (108 ft-lb)
Spindle Taper	HSK-A100
Table Size	3,000 × 1,500 mm (118 × 59 in)
Tool Capacity	60
Floor Space Required	12,265 × 6,000 × 5,810 mm (483 × 236 × 229 in)
Machine Weight	37,000 kg (81,571 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

60-tool magazine, where the DBM 2030 carries 40
15,000 rpm HSK-A100 spindle listed at 46/34 kW (62/46 hp)
2,500 mm (98 in) of Y travel across a 1,500 mm (59 in) wide table gives the head room on both sides of the workpiece
At 37,000 kg (81,571 lb) and 12,265 mm (483 in) long it is the lightest and shortest of the DBM U machines listed with it; the DBM 2040 U weighs 41,000 kg (90,390 lb)
DN lists auto-change attachments and DSQ I/II/III mold machining functions for the series

Limitations

Spindle torque is 146 N·m (108 ft-lb); the DBM 2030 lists 1,009 N·m (744 ft-lb) for heavy cutting
X travel is 3,250 mm (128 in), the least of the DBM U sizes; the DBM 2040 U offers 4,250 mm (167 in)
DN's table gives no table load and no rapid traverse figures for this model
The machine stands 5,810 mm (229 in) high, so building height and crane hook clearance need checking

Best For

Molds and dies that fit a 3,000 × 1,500 mm (118 × 59 in) table Multi-face work that uses the Y travel beyond the table edges Jobs with long tool lists that fill a 60-tool magazine Finishing at up to 15,000 rpm with HSK-A100 tooling

Frequently Asked Questions

01 What is the working envelope of the DBM 2030 U?

Travels are 3,250 mm (128 in) in X, 2,500 mm (98 in) in Y and 1,000 mm (39 in) in Z. The table is 3,000 × 1,500 mm (118 × 59 in), and DN lists 900 mm (35 in) from the spindle nose to the table.

02 How is the DBM 2030 U different from the DBM 2030?

X and Y travel are identical at 3,250 mm (128 in) and 2,500 mm (98 in). The DBM 2030 has 1,100 mm (43 in) of Z, 1,009 N·m (744 ft-lb) of spindle torque and 40 tools. The DBM 2030 U has 1,000 mm (39 in) of Z, a 15,000 rpm HSK-A100 spindle with 146 N·m (108 ft-lb) and 60 tools.

03 How many tools does the DBM 2030 U hold?

The table lists a tool capacity of 60. DN does not state maximum tool diameter, length or weight in this table, so confirm those limits if the job depends on long or heavy HSK-A100 tools.

04 What does the DBM 2030 U weigh and how much space does it take?

Machine weight is 37,000 kg (81,571 lb). The listed dimensions are 12,265 × 6,000 × 5,810 mm (483 × 236 × 229 in) as length, width and height. The table for this model has no table load figure, so the total floor loading cannot be worked out from it alone.

05 Is there a larger machine with the same spindle?

Yes. The DBM 2040 U keeps the 2,500 mm (98 in) Y travel, the 15,000 rpm HSK-A100 spindle and the 60 tools, and extends X to 4,250 mm (167 in) with a 4,000 × 1,500 mm (158 × 59 in) table. The DBM 2540 U adds Y as well, at 3,000 mm (118 in).
