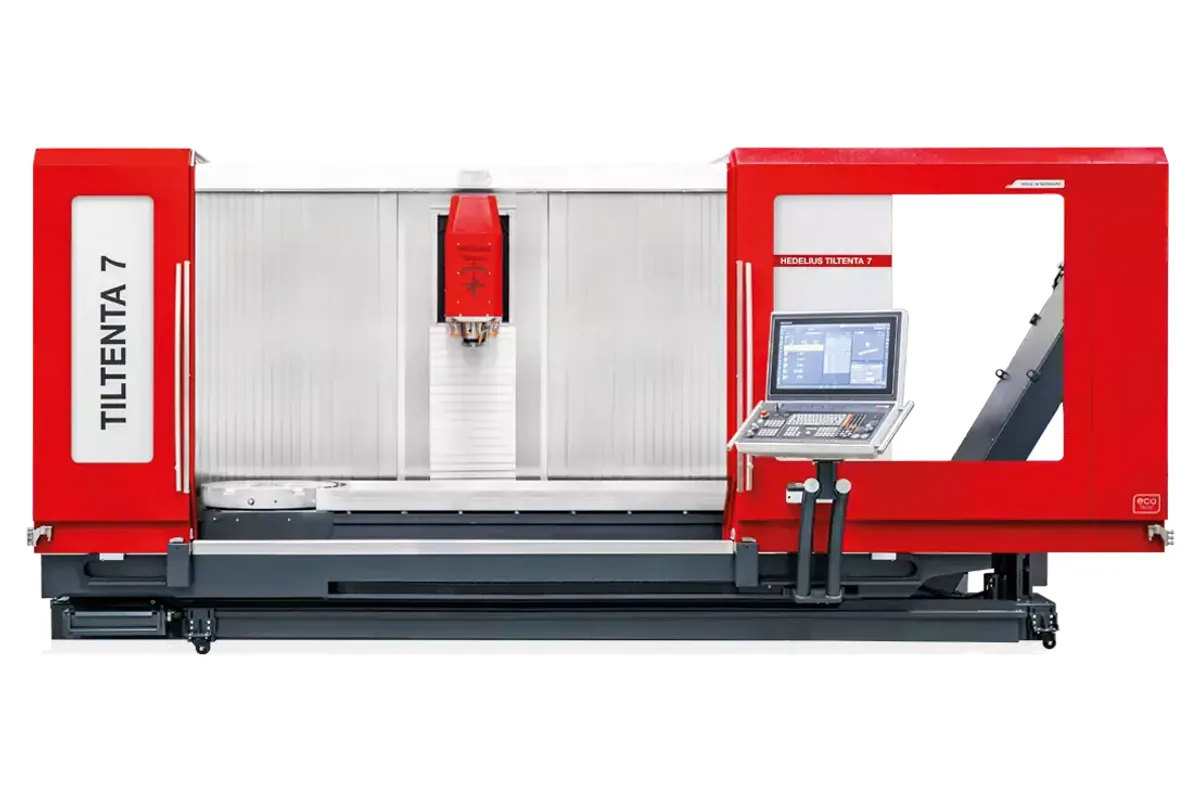

Hedelius TILTENTA 7-2600 NEO EL
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 7-2600 NEO EL cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 7-2600 NEO EL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The NC rotary table of the Hedelius TILTENTA 7-2600 NEO EL is moved to the left. That one change, together with a side loading opening and open interfaces, lets an automation system reach the rotary table from the left-hand side of the machine while the rest of the long table stays free. The result is a swivel-spindle 5-axis machining centre that Hedelius positions for fully automated machining of single parts and series.
Geometry differs slightly from the non-EL machine. The fixed table's clamping area is 2,840 x 700 mm and vertical Z travel is 735 mm, with 800 mm horizontal. X is 2,600 mm vertical and 2,030 mm horizontal, Y is 700 mm. There is no pendulum operation row for this variant, which fits: the side of the machine is taken by the loading opening, not by a second operator station.
Pallets land on a rotary table with a Ø 700 mm faceplate that carries 800 kg (1,764 lb) and has a holding torque of 2,900 Nm. The spindle head reaches them from -98° to +98°. Everything to the right of the rotary table is plain fixed table for up to 2,500 kg, so a long part can still be clamped there and machined by hand between automated batches. Hedelius calls this mixed production of large workpieces and precise 5-axis machining in one machine.
Tooling for unattended running needs a look. The capacity row reads 115 / 160 / 225 / 309 for EL machines, the 45-place figure being marked as not for EL, although the product page mentions 45 tools as standard. Spindles: 22 kW or 29 kW at 14,000 rpm, 35 kW at 18,000 rpm. Weight: 12,000 kg.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 / 2,030 mm (102.4 / 79.9 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 700 mm (27.6 in) |
| Z Axis Travel | 735 / 800 mm (28.9 / 31.5 in) (V/H: vertical / horizontal) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 183 Nm (135 lb-ft), 29 kW (38.9 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Centre of Rotation | 285 mm (11.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,000 Nm (1,475 lb-ft) |
| Spindle Swivel Torque Clamped | 2,500 Nm (1,844 lb-ft) |
| Rotary Table Faceplate | Ø 700 mm (Ø 27.6 in) |
| Interference Circle Diameter | 1,050 mm (41.3 in) |
| Rotary Table Rotational Speed | 15 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 2,200 Nm (1,623 lb-ft) |
| Rotary Table Holding Torque | 2,900 Nm (2,139 lb-ft) |
| Rotary Table Load | 800 kg (1,764 lb) |
| Spindle Distance | 20 - 755 mm (0.8 - 29.7 in) |
| Table Size | 2,840 x 700 mm (111.8 x 27.6 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 7, distance 100 mm (3.9 in) |
| Max Table Load | 2,500 kg (5,511 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 25,000 N (5,620 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 45 (not for EL) / 115 / 160 / 225 / 309 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 mm (13.0 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 10.5 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 12,000 kg (26,455 lb) |
| Transport Height | 2,650 mm (104.3 in) |
| Transport Width | 3,150 / 2,910 mm (124.0 / 114.6 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- NC rotary table offset to the left so an automation system can load it from the side
- Open interfaces for manufacturer-independent automation
- Long fixed table for 2,500 kg remains usable for manual large-part work
- Rotary table for 800 kg with 2,900 Nm of holding torque
- Vertical Z travel of 735 mm
Limitations
- No pendulum operation listed for the EL variant
- Hedelius's sources disagree on the magazine: the data sheet marks the 45-place magazine as not for EL, the page mentions 45 tools as standard
- Clamping area is 2,840 x 700 mm, shorter than the X travel of 2,600 mm would suggest once the rotary table is counted
- Highest listed spindle torque is 183 Nm
Best For
Frequently Asked Questions
01
It has a laterally offset NC rotary table, a side loading opening and an interface to manufacturer-independent automation. Hedelius states that open interfaces and the offset rotary table allow an automation system to load the machine from the left-hand side.
02
X 2,600 / 2,030 mm and Z 735 / 800 mm, each for the spindle vertical / horizontal, and Y 700 mm. The clamping area is 2,840 x 700 mm with a table load of 2,500 kg. The rotary table faceplate is Ø 700 mm for 800 kg.
03
This needs confirming with Hedelius. The data sheet's theoretical capacities are 45 / 115 / 160 / 225 / 309 with the 45 marked as not for EL, while the product page mentions 45 tools as standard. Tool limits are 330 mm in length and 5 kg.
04
Yes. Hedelius describes the long machine table with integrated NC rotary table as allowing mixed production of large workpieces and precise 5-axis machining in one machine. The fixed table takes 2,500 kg (5,511 lb) and X travel is 2,600 mm with the spindle vertical.
