AXA VPC 55 U

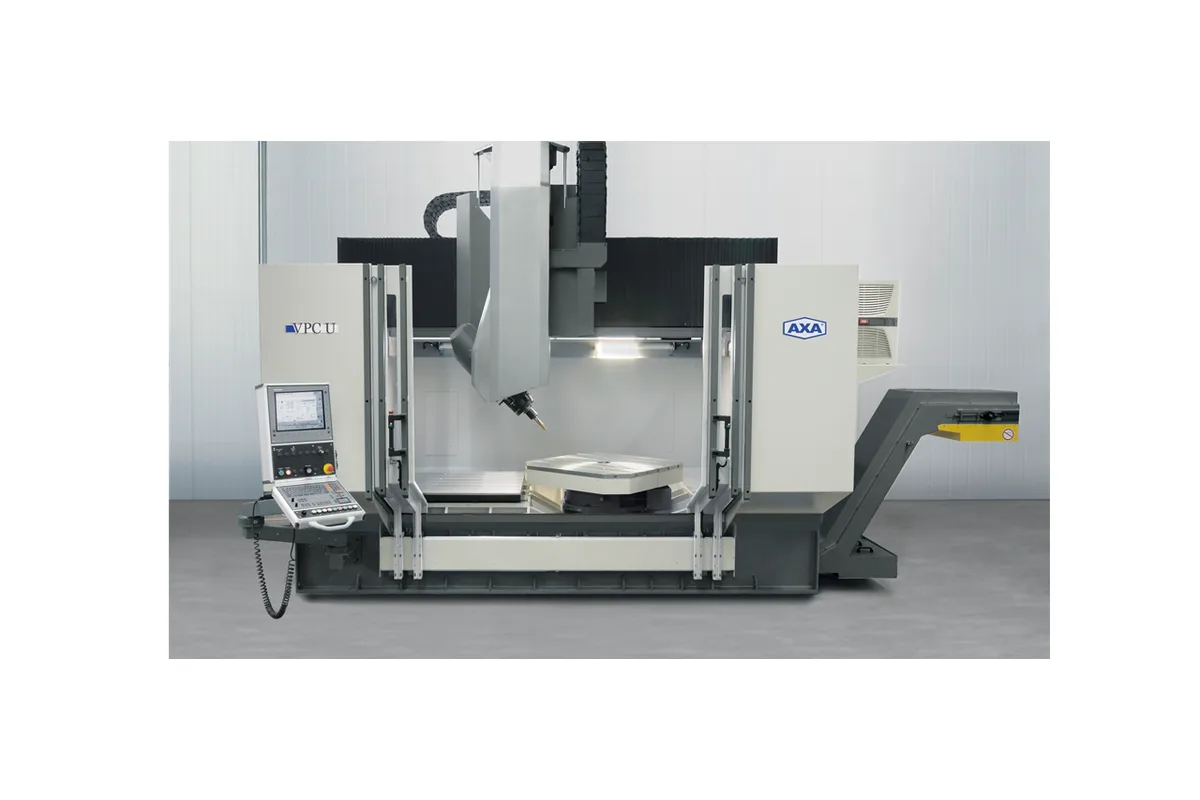

Image: axa-maschinenbau.de, AXA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Spindle Power
Accuracy
Repeatability
How much does the AXA VPC 55 U cost?
Price estimate
We do not have a price for the AXA VPC 55 U that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AXA VPC 55 U is the top model of the compact VPC U line and the only one that can be ordered with spindle drive no. 173: 445 Nm and 70 kW at 40% DC. AXA's data sheet restricts that drive to the VPC 55 U with interpolating tilting head. The standard spindle is the SK 50 drive no. 131 with 286 Nm and 45 kW, and no. 133 with 355 Nm sits between the two.
Mechanically this is the large VPC U build. Y travel is 1,400 mm (55.1 in), with 1,600 mm, 1,800 mm and 2,200 mm as options. Z is 900 mm (35.4 in) or 1,100 mm. X is 2,300 mm with the spindle vertical and 2,000 mm with it horizontal, and both can be lengthened in two steps.
The NC rotary table is integrated in the bed and clamps hydraulically. As standard it takes 2,000 kg with a 10,000 Nm tangential and 26,000 Nm tilting moment. The heavy option raises those figures to 3,500 kg, 18,000 Nm and 60,000 Nm, and table sizes go up to ø 2,300 mm. With drive no. 173 and the heavy table, the VPC 55 U approaches the work of a much larger gantry while keeping, in AXA's words, a transport in one single piece.
Head indexing is 2.5° as standard. The 0.001° fully interpolating B-axis is an optional feature, and the swivel range is given as 90° with 100° in brackets. Tool capacity is 20, expandable to 90, and tool change takes approx. 7 s.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,300 mm (90.6 in); optional 2,940 mm (115.7 in), 3,400 mm (133.9 in) (vertical spindle) |
| X Axis Travel Horizontal Spindle | 2,000 mm (78.7 in); optional 2,640 mm (103.9 in), 3,100 mm (122.0 in) |
| Y Axis Travel | 1,400 mm (55.1 in); optional 1,600 mm (63.0 in), 1,800 mm (70.9 in), 2,200 mm (86.6 in) |
| Z Axis Travel | 900 mm (35.4 in); optional 1,100 mm (43.3 in) |
| Table Width | 1,100 mm (43.3 in); optional 1,350 mm (53.1 in), 1,500 mm (59.1 in), 1,800 mm (70.9 in), 2,200 mm (86.6 in) (dependent on Y-stroke) |
| Table Length | approx. X-traverse |
| T-Slot Width | 14 mm H9; optional 18 mm H9 (reference slot H7) |
| T Slot Spacing | 160 mm (6.3 in) |
| Max Table Load | 2,000 kg (4,409 lb); optional 3,500 kg (7,716 lb) per table |
| Distance Spindle Nose to Table Vertical | 210 mm (8.3 in); optional 60 mm (2.4 in) (minimum, fixed table) |
| Distance Spindle Nose to Table Horizontal | 310 mm (12.2 in); optional 160 mm (6.3 in) (minimum, fixed table) |
| Rotary Table Clamping Surface | 1,100 x 1,100 mm (43.3 x 43.3 in) up to ø 2,300 mm (90.6 in) (maker's footnote: optional features) |
| Rotary Table Max Load | 2,000 kg (4,409 lb); optional 3,500 kg (7,716 lb) |
| Rotary Table Tangential Moment | 10,000 Nm (7,376 lb-ft); optional 18,000 Nm (13,277 lb-ft) |
| Rotary Table Tilting Moment | 26,000 Nm (19,178 lb-ft); optional 60,000 Nm (44,256 lb-ft) |
| Rotary Table Measuring Accuracy | ± 5 arcsec; optional ± 1 arcsec |
| Distance Spindle Nose to Rotary Table Vertical | 60 mm (2.4 in) minimum |
| Distance Spindle Nose to Rotary Table Horizontal | 160 mm (6.3 in) minimum |
| Rapid Traverse Xyz | 20/20/20 m/min (787/787/787 ipm) in X/Y/Z; optional 30/30/25 m/min (1,181/1,181/984 ipm) |
| Max Feed Force | 9,000 N (2,023 lbf) |
| Spindle Drive Standard | No. 131 |
| Spindle Drives Optional | No. 133, 173 (maker's footnote on 173: exclusively for VPC 55 U with interpolating tilting head) |
| Max Spindle Speed | 4,000 rpm; optional up to 9,000 rpm (standard drive no. 131) |
| Spindle Torque | 286 Nm (211.0 lb-ft) max. at 40% DC (standard drive no. 131) |
| Spindle Motor Power | 45 kW (60.3 hp) max. at 40% DC (standard drive no. 131) |
| Optional Spindle Drive 133 | 4,000 rpm (optional up to 9,000 rpm), 355 Nm (261.8 lb-ft), 56 kW (75.1 hp) max. at 40% DC |
| Optional Spindle Drive 173 | 6,000 rpm (optional up to 7,500 rpm), 445 Nm (328.2 lb-ft), 70 kW (93.9 hp) max. at 40% DC |
| Spindle Taper | SK 50 (DIN 69871 A / DIN 69872 A); optional BT 50, HSK A100, C8 |
| B Axis Range | 90°; alternatively 100° |
| B Axis Indexing | 2.5°; optional 0.001°, fully interpolating |
| Tool Capacity | 20; optional expandable up to 90 |
| Max Tool Diameter (full magazine) | 110 mm (4.3 in); 180 mm (7.1 in) with free adjacent pockets |
| Max Tool Length | 400 mm (15.7 in) |
| Tool Change Time | approx. 7 s |
| Positioning Accuracy | ± 0.015 mm per 1,000 mm per axis X/Y/Z with vertical spindle; optional ± 0.008 mm |
| Repeatability | ± 0.01 mm; optional ± 0.006 mm |
Specifications sourced from axa-maschinenbau.de — verified 2026-10-05
Strengths & Limitations
Strengths
- Optional drive no. 173 with 445 Nm and 70 kW at 40% DC, exclusive to this model
- SK 50 spindle with 286 Nm and 45 kW as standard
- Rotary table for 2,000 kg, optionally 3,500 kg, with sizes up to ø 2,300 mm
- Y travel up to 2,200 mm and Z travel up to 1,100 mm as options
- Optional 0.001° fully interpolating B-axis for 5-axis work
- Machine transport in one single piece, according to AXA
Limitations
- Drive no. 173 requires the interpolating tilting head
- Standard B-axis indexing is 2.5°
- 20 tool pockets as delivered
- Feed force of 9,000 N and standard rapids of 20/20/20 m/min
Best For
Frequently Asked Questions
01
An optional main spindle drive with a 6,000 rpm speed range, up to 7,500 rpm as an option, 445 Nm and 70 kW at 40% DC. AXA's footnote says it is exclusively for the VPC 55 U with interpolating tilting head. Drive no. 131 (286 Nm, 45 kW) is standard.
02
X is 2,300 mm with the vertical spindle (optionally 2,940 mm or 3,400 mm) and 2,000 mm with the horizontal spindle (optionally 2,640 mm or 3,100 mm). Y is 1,400 mm, optionally up to 2,200 mm. Z is 900 mm, optionally 1,100 mm.
03
2,000 kg (4,409 lb) as standard and 3,500 kg (7,716 lb) as an optional feature. The tangential moment is 10,000 Nm, optionally 18,000 Nm, and the tilting moment 26,000 Nm, optionally 60,000 Nm. The table turns continuously around the Z-axis.
04
When the part is bigger or heavier than this table allows. The VPC 2800 U has a ø 2,800 mm rotary table for 15,000 kg, 2,940 mm of Y and 3,900 mm of X, and its B-axis head is fully interpolating as listed. The VPC 55 U stops at 3,500 kg.
