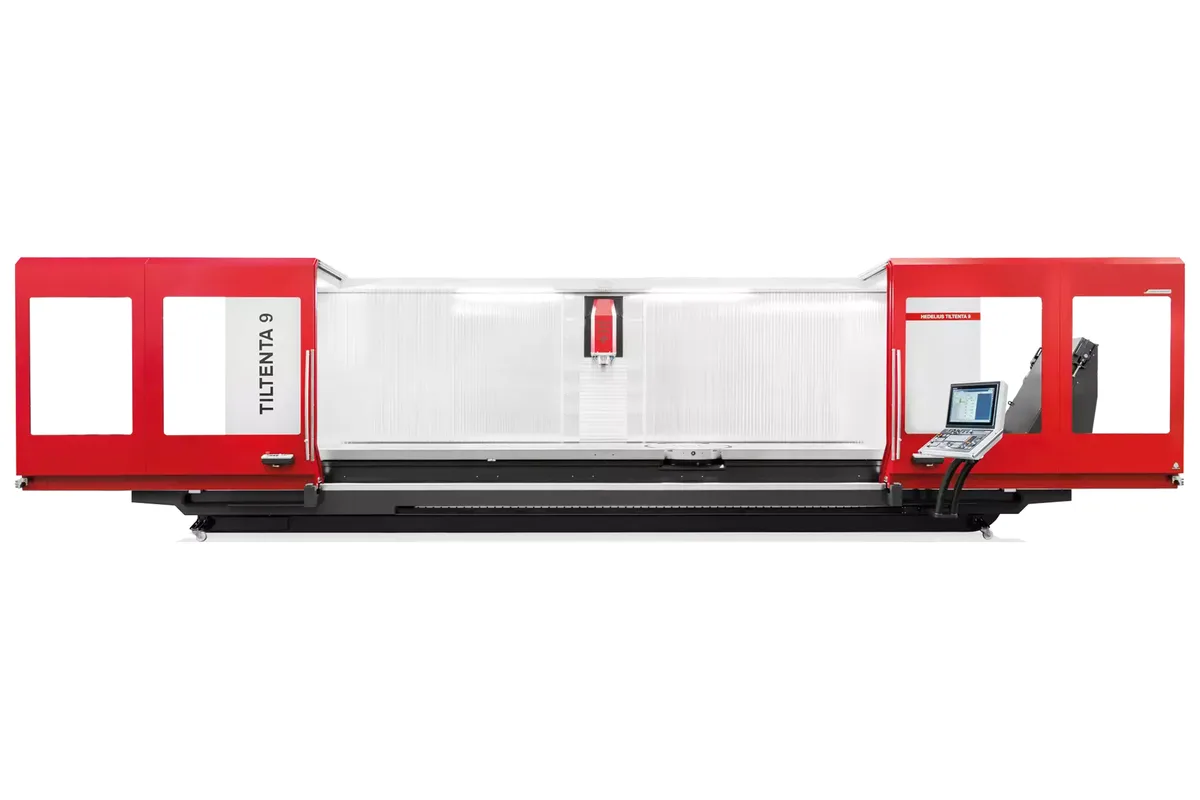

Hedelius TILTENTA 9-6200
Image: hedelius.de, Hedelius
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Hedelius TILTENTA 9-6200 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 9-6200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 9-6200 stretches the swivel-spindle concept to travel paths of 6200 x 900 x 900 mm, with 6,200 mm (244.1 in) in X. It is a 5-axis travelling column machining centre for large-format workpieces, with a fixed table whose contact surface measures 6,680 x 900 mm.
Length changes what the swivelling spindle is good for. On a short machine, the horizontal position is mostly for 5-sided work on the rotary table. Here it lets the machine process the front side of workpieces up to approx. 5630 mm long, so both ends of a long beam can be reached in one clamping if it is placed with clearance at each end. Hedelius also names demanding 5-axis simultaneous machining among the uses, alongside single part and series production.
For series work the page gives an oscillation mode of 2 x 2,825 mm, listed as optional for 3- and 5-axis machining. The rotary table has a Ø 900 mm face plate and a load of 1,200 kg (2,646 lb) in the comparison table, with an integrated heavy-duty rotary table of up to 1800 kg named as an option. The collision area diameter is Ø 1,250 mm.
Five spindles are listed, with outputs of 22, 37, 50, 35 and 30 kW; the 50 kW unit delivers 217 Nm at 15,000 rpm and the fastest runs at 24,000 rpm. The magazine holds 60 tools as standard. One caution on the published data: the page's fixed table load for this model does not fit the pattern of the shorter machines, and there is no data sheet to settle it, so get the table load, weight and foundation data from Hedelius in writing.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,200 mm (244.1 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Oscillation Mode | 2 x 2,825 mm (111.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Motor Power | 22 / 37 / 50 / 35 / 30 kW (29.5 / 49.6 / 67.1 / 46.9 / 40.2 hp) (spindle options) |
| Spindle Speed | 14,000 / 15,000 / 18,000 / 24,000 min-1 (spindle options) |
| Spindle Taper | SK 40, BT 40, HSK A63 |
| Tool Capacity | 60 / 130 / 175 / 240 / 324 |
| Table Size | 6,680 x 900 mm (263.0 x 35.4 in) |
| Rotary Table Faceplate | Ø 900 mm (Ø 35.4 in) |
| Interference Circle Diameter | Ø 1,250 mm (Ø 49.2 in) |
| Rotary Table Load | 1,200 kg (2,646 lb) |
| Spindle Option 1 | SK 40 / BT 40, CELOX 14,000 1/min, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp) |
| Spindle Option 2 | SK 40 / BT 40, CELOX 14,000 1/min, 185 Nm (136 lb-ft), 37 kW (49.6 hp) |
| Spindle Option 3 | HSK A63, CELOX 15,000 1/min, 217 Nm (160 lb-ft), 50 kW (67.1 hp) |
| Spindle Option 4 | HSK A63, CELOX 18,000 1/min, 136 Nm (100 lb-ft), 35 kW (46.9 hp) |
| Spindle Option 5 | HSK A63, CELOX 24,000 1/min, 123 Nm (90.7 lb-ft), 30 kW (40.2 hp) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,200 mm of X travel with a 6,680 x 900 mm contact surface on the fixed table
- Front side processing of workpieces up to approx. 5630 mm with the spindle horizontal
- Oscillation mode of 2 x 2,825 mm, optional for 3- and 5-axis machining
- Swivelling main spindle, -5° to +98° or -98° to +98°, with four axes in the tool
- Five spindles, up to 50 kW and 217 Nm or up to 24,000 rpm
Limitations
- The fixed table load published on the page is out of step with the rest of the series and should be confirmed
- Rotary table load is 1,200 kg in the comparison table; the 1,800 kg heavy-duty table is optional
- No data sheet is linked: weight, feed force and tool limits are not published on the page
- Y and Z travels stay at 900 mm despite the length
Best For
Frequently Asked Questions
01
The X travel path is 6,200 mm and the fixed table's contact surface is 6,680 x 900 mm. With the spindle horizontal, Hedelius gives front side processing of workpieces up to approx. 5630 mm. Y and Z travel are 900 mm each.
02
Yes, as an option. The page gives 2 x 2,825 mm, and Hedelius lists 3- and 5-axis machining in oscillation mode as optional. Each work area is then larger than the whole travel of the shortest machine in the series.
03
An integrated NC rotary table with a Ø 900 mm face plate and a collision area diameter of Ø 1,250 mm. The comparison table gives a maximum load of 1,200 kg, and Hedelius lists an integrated heavy-duty rotary table with a table load of up to 1800 kg as optional.
04
SK 40 / BT 40 at 14,000 rpm with 117 Nm and 22 kW or with 185 Nm and 37 kW, and HSK A63 at 15,000 rpm with 217 Nm and 50 kW, at 18,000 rpm with 136 Nm and 35 kW, or at 24,000 rpm with 123 Nm and 30 kW.
