Chevalier Machinery 5-Axis Machining Centers

Chevalier UNi5X-800

Q: How much does the Chevalier UNi5X-800 cost?

The price estimate for the Chevalier UNi5X-800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chevalier-uni5x-800#price; the request is passed to Chevalier Machinery or an authorised dealer.

Specs verified 2026-10-05 · chevalierusa.com Updated 2026-10-05

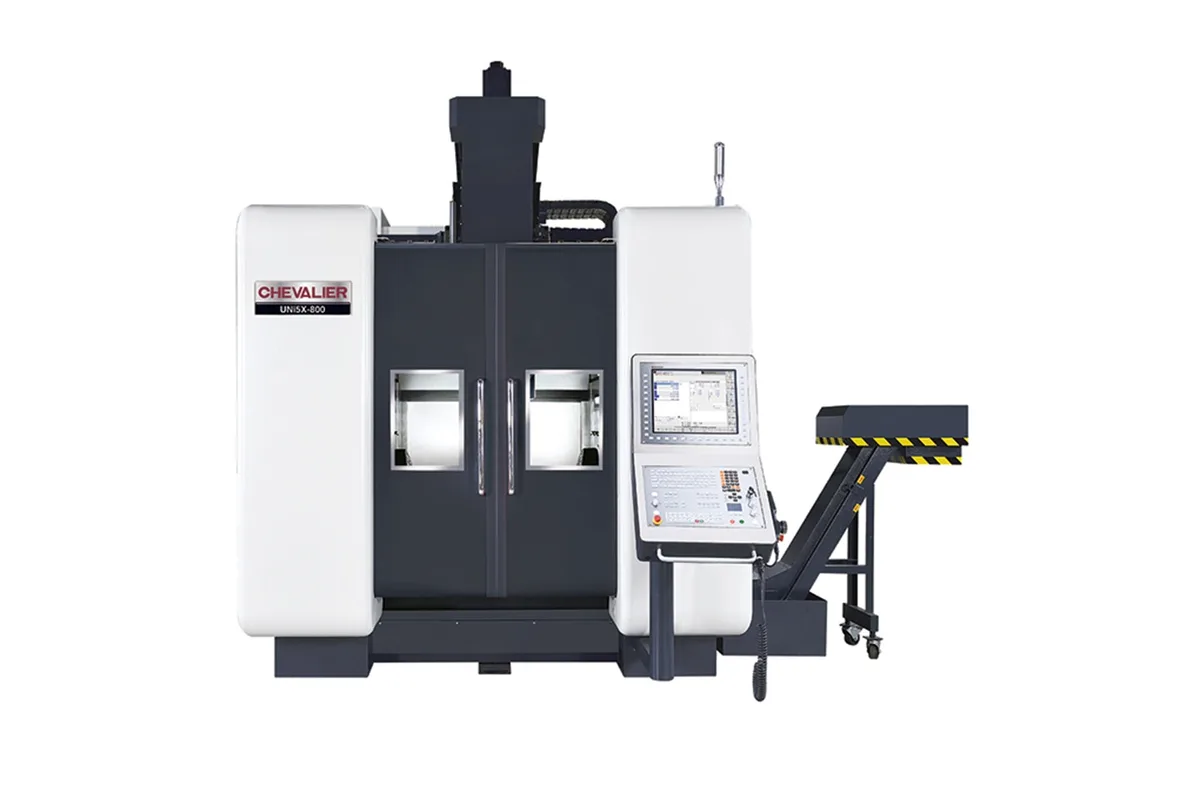

Chevalier UNi5X-800 5-axis machining center

Image: chevalierusa.com, Chevalier Machinery

Key Specifications

Spindle Taper

HSK-A63

Tool Capacity

32 T

Table Size

Ø31.5 in (Ø800 mm)

Spindle Power

34 hp / 47 hp (25 / 35 kW)

control

Heidenhain TNC640 19" LCD Control

max table load

2,866 lb (1,300 kg)

How much does the Chevalier UNi5X-800 cost?

Price estimate

Uncertain

We do not have a price for the Chevalier UNi5X-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Chevalier UNi5X-800 is a large five-axis machining center with a Ø31.5 in (Ø800 mm) rotary table that carries 2,866 lb (1,300 kg). It is a different class of machine from the UNi5X-400, which shares the name: that model's table takes 220 lb (100 kg), and this one weighs 44,092 lb (20,000 kg) against 15,510 lb (7,050 kg).

The spindle is a built-in motor spindle with an HSK-A63 taper, running to 18,000 rpm. Power is listed as 34 hp / 47 hp (25 / 35 kW) and torque as 86 / 130 Nm, which the maker gives as S1 and S6 ratings. High speed with moderate torque points at mould, die and aluminium structural work, where long finishing passes at high feed matter more than heavy roughing in steel.

The rotary axes are fast. The A axis is listed with a rotation of ± 120 at 80 rpm and the C axis with 360° at 100 rpm. Rapid traverse on the linear axes is 1,889 ipm (48 m/min). The travel row reads 31.5 in / 35.4 in +5.9 in / 25.6 in for X, Y and Z, where the extra 5.9 in (150 mm) on Y is travel for the tool change: the magazine is a pick-up type holding 32 tools, and the spindle goes to it.

The control is a Heidenhain TNC640 with a 19 in screen. Maximum workpiece dimensions are Ø31.5 in x H 23.6 in. Floor space is 220 in x 102 in x 141 in. The maker's page has no feature list for this model and its cutting feed row is not consistent between units, so that figure is not repeated here.

Full Specifications

Parameter	Value
CNC Control	Heidenhain TNC640 19" LCD Control
Table Size	Ø31.5 in (Ø800 mm)
Max Table Load	2,866 lb (1,300 kg)
Max Workpiece Dimensions	Ø31.5 in x H 23.6 in (Ø800 x H 600 mm)
Travel X Y plus Tool Change Z	31.5 in / 35.4 in +5.9 in / 25.6 in (800 / 900 + 150 / 650 mm)
Rapid Traverse Xyz	1,889 ipm (48 m/min)
A Axis Range	± 120
A Axis Speed	80 rpm
C Axis Range	360°
C Axis Speed	100 rpm
Spindle Type	Built-in
Spindle Speed	18,000 rpm
Spindle Motor Power	34 hp / 47 hp (25 / 35 kW)
Spindle Torque	86 / 130 Nm
Spindle Taper	HSK-A63
Tool Change Mode	Pick-up type
Tool Capacity	32 T
Max Tool Diameter (full magazine)	3 in (Ø75 mm)
Max Tool Diameter Without Adjacent Tool	5 in (Ø125 mm)
Max Tool Length	13.7 in (350 mm)
Max Tool Weight	15.4 lb (7 kg)
Machine Dimensions	220 in x 102 in x 141 in (5,600 x 2,600 x 3,600 mm)
Machine Weight	44,092 lb (20,000 kg)

Specifications sourced from chevalierusa.com — verified 2026-10-05

Strengths & Limitations

Strengths

Ø31.5 in (Ø800 mm) table with a 2,866 lb (1,300 kg) load rating
18,000 rpm built-in spindle with an HSK-A63 taper
Fast rotary axes: A at 80 rpm and C at 100 rpm
1,889 ipm (48 m/min) rapid traverse
Heidenhain TNC640 control with a 19 in screen

Limitations

Spindle torque of 86 / 130 Nm is low for heavy roughing in steel or titanium
Weighs 44,092 lb (20,000 kg) and stands 141 in (3,600 mm) high
Pick-up magazine holds 32 tools, with a 3 in (Ø75 mm) limit when adjacent pockets are full
The maker publishes no accuracy figures and no feature list for this model

Best For

Moulds and dies up to Ø31.5 in (Ø800 mm) Aluminium structural and aerospace parts at high spindle speed Five-axis simultaneous finishing with fast rotary axes Heavy workpieces up to 2,866 lb (1,300 kg) on a rotary table

Frequently Asked Questions

01 How big a workpiece does the UNi5X-800 take?

Maximum workpiece dimensions are listed as Ø31.5 in x H 23.6 in (Ø800 x H 600 mm) on a Ø31.5 in (Ø800 mm) table, with a maximum table load of 2,866 lb (1,300 kg).

02 What spindle is fitted to the UNi5X-800?

A built-in spindle with an HSK-A63 taper and a top speed of 18,000 rpm. Motor power is 34 hp / 47 hp (25 / 35 kW) and maximum torque 86 / 130 Nm, given by the maker as S1 and S6 ratings respectively.

03 How does the tool changer work?

The tool change mode is listed as pick-up type with a storage capacity of 32 tools, and the Y axis has an additional 5.9 in (150 mm) of travel for it. Tools can be 3 in (Ø75 mm) in diameter with adjacent tools, 5 in (Ø125 mm) without, 13.7 in (350 mm) long and 15.4 lb (7 kg).

04 How does the UNi5X-800 compare with the UNi5X-400?

The UNi5X-400 has a Ø12.6 in (Ø320 mm) table rated for 220 lb (100 kg), a CT40 spindle and a different control. The UNi5X-800 has a Ø31.5 in (Ø800 mm) table rated for 2,866 lb (1,300 kg), an HSK-A63 spindle at 18,000 rpm and a Heidenhain TNC640.
